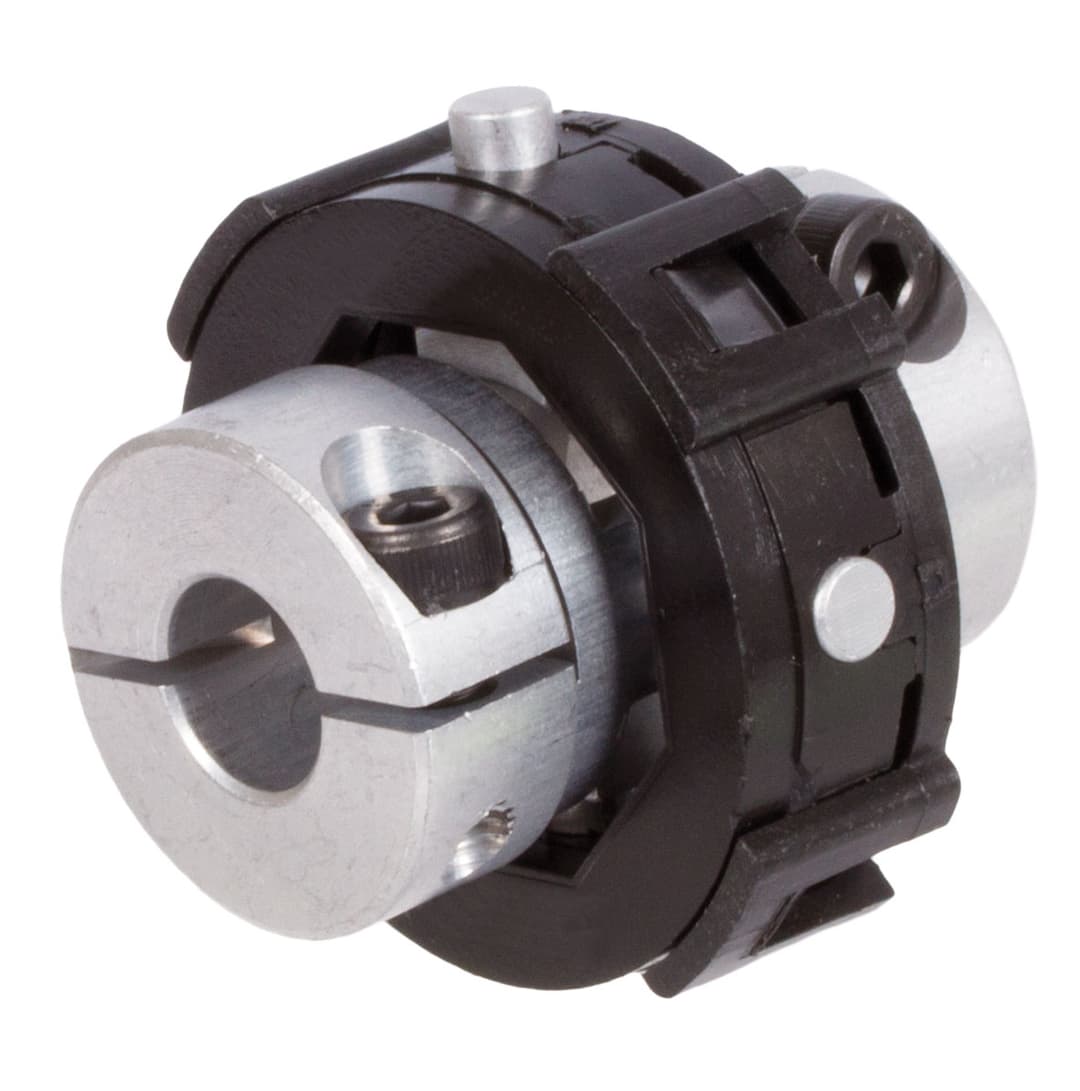

Name: Torsionally-stiff coupling HB bore 4mm max. torque 1.7 Nm outside diameter 28mm
Brand: MÄDLER
Price: 50.66 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Torque	17.335 kg·cm
Weight	26 g

Other characteristics

Bore diameter	4 mm
Max misalignment angular at 3000 min 1	2 °
Max misalignment axial	0 mm
Max misalignment radial at 3000 min 1	0.2 mm
Max speed	3 U/min
Max torque	1.7 Nm

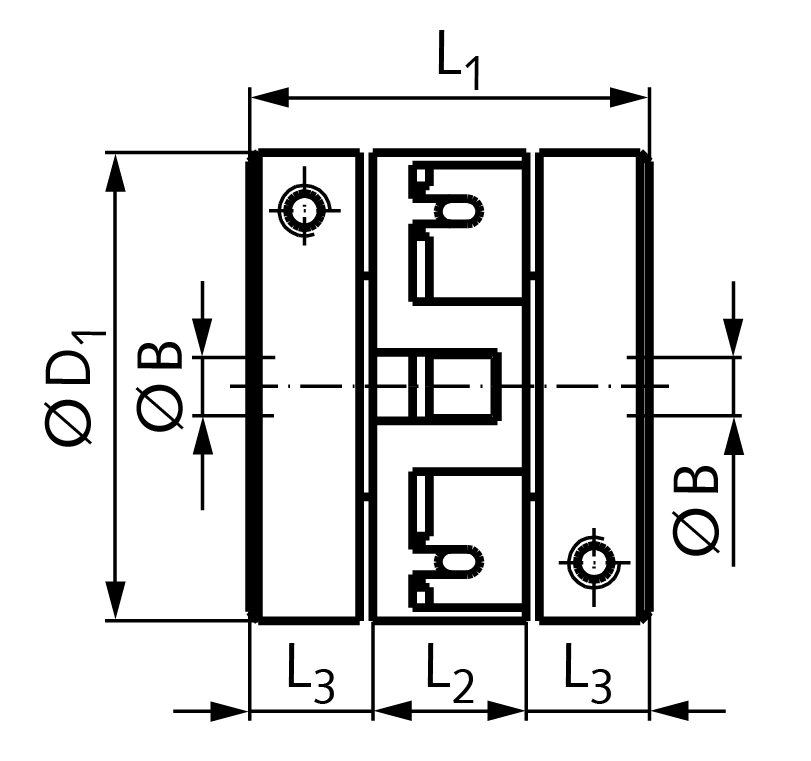

Outer diameter d1 mm	28 mm
Stat breaking torque	5 Nm
Temperature max.	60 °C
Temperature min.	-20 °C
Torsional stiffness	92 Nm/rad
Total length	25.4 mm

Description

Material: Up to D1 = 28 mm hubs made of brass, chromated and passivated. From D1 = 41,4 mm aluminium alloy with iridite NCP finish. Torque ring made of black polyacetal. These unique, zero backlash, general purpose couplings provide electrical insulation. They are designed for the lower torque range and offer generous angular and radial misalignment compensation. Their axial stiffness is unique and they can anchor unrestricted shafts or perform light push/pull duties Applications: puls-triggered drive units (e.g. stepper motors, transducers, engine speed sensors, potentiometers). Temperature range: -20ºC to +60ºC. 1) At lower speeds the couplings can compensate up to +/-1 mm radial and 10º angular displacement. The sizes D1 = 19 and D1 = 28 only 5 degrees. 2) Operating factors for couplings HU and HB (without shaft displacement): Load Period – Operating Factor short term – 1 1 hour per day – 1,5 3 hours per day – 2 6 hours per day – 3 12 hours per day – 4
