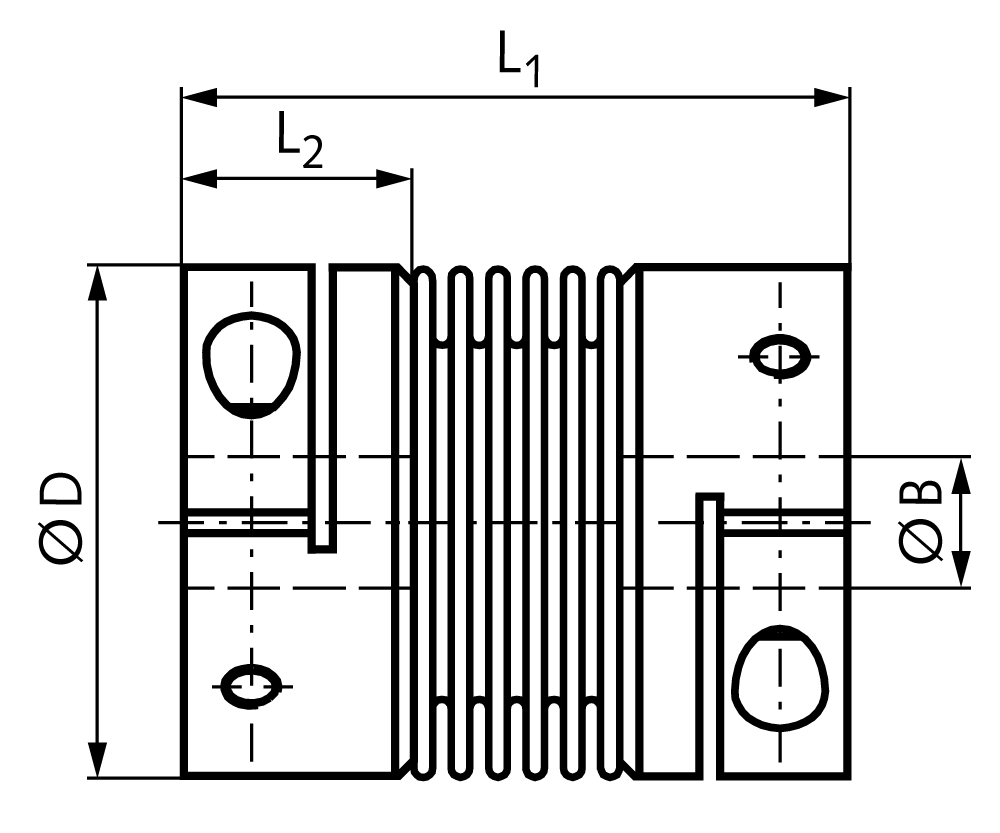

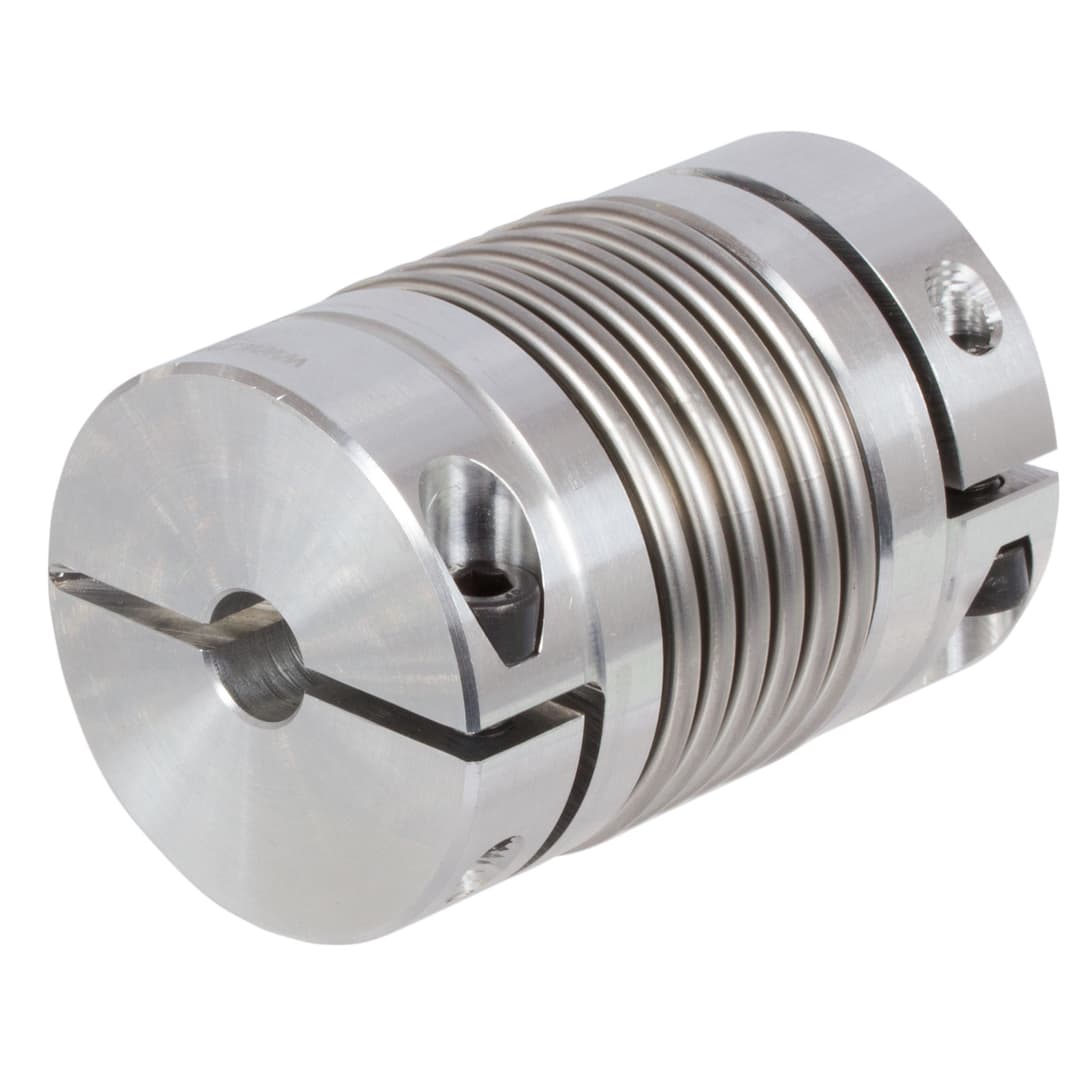

Steel bellow coupling MCK short version MDmax 18Nm both sides bore 10mm overall length 63mm hub diameter 45mm
Manufacturer part no. 60154610
$125.69≈ 109.15 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €109.15 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €24.83 |
| Total delivered | €148.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 183.546 kg·cm |
| Weight | 200 g |
Other characteristics
| Bore diameter | 10 mm |
| Interference diameter 3 | 48 mm |
| Max bore depth | 19.5 mm |
| Max bore diameter | 25.4 mm |
| Max misalignment angular | 1.5 |
| Max misalignment axial | 0.5 mm |
| Max torque | 18 Nm |
| Outer diameter | 45 mm |
| Temperature max. | 120 °C |
| Temperature min. | -40 °C |
| Torsional stiffness | 20 000 Nm/rad |
| Total length | 63 mm |
Description
Material: Aluminium clamp hubs, stainless steel bellow. Zero backlash, with high torsional stiffness. For machine tools, packing machines, textile machines, linear drives etc.. With clamps, ready-to-install for rapid mounting. Temperature range of all types -30°C to +120°C. 1) Standard bores. 2) Different bores (even one-sided) up to max bore as well feather keyways, available against surcharge.Please regard the operating factors. See PDF-catalog page.
