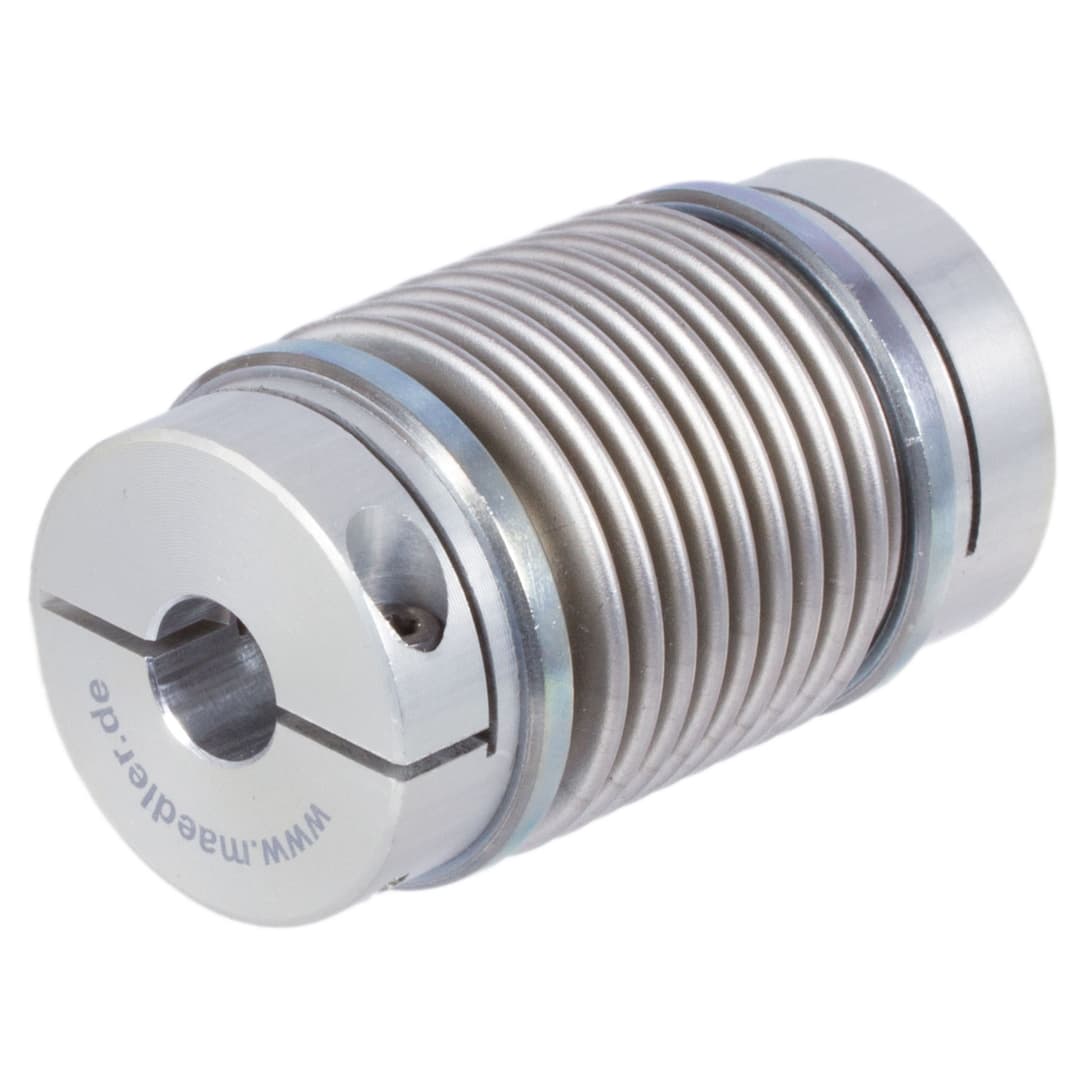

Steel bellow coupling MBL long version MDmax 5Nm both sides bore 20mm overall length 71.4mm hub diameter 37.4mm
Manufacturer part no. 60163720
$96.25≈ 83.59 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €83.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €19.72 |
| Total delivered | €118.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 50.985 kg·cm |
| Weight | 107 g |
Other characteristics
| Bore diameter | 20 mm |
| Max bore depth | 18 mm |
| Max bore diameter | 20 mm |
| Max misalignment angular | 8 |
| Max misalignment axial | 2.5 mm |
| Max torque | 5 Nm |
| Outer diameter | 41 mm |
| Temperature max. | 120 °C |
| Temperature min. | -40 °C |
| Torsional stiffness | 1 310 Nm/rad |
| Total length | 71.4 mm |
| Coupling type | Torsionally stiff. angular/transv./long flexible |
Description
Material: Hubs aluminium, bellow stainless steel. Zero backlash, with high torsional stiffness. For highly dynamic positioning and servo systems, pumps, portal drives etc.. With clamps, ready-to-install for rapid mounting. Temperature range of all types -40°C to +120°C. 1) Standard bores. 2) Different bores (even one-sided) up to max bore available against surcharge.Please regard the operating factors. See PDF-catalog page.
