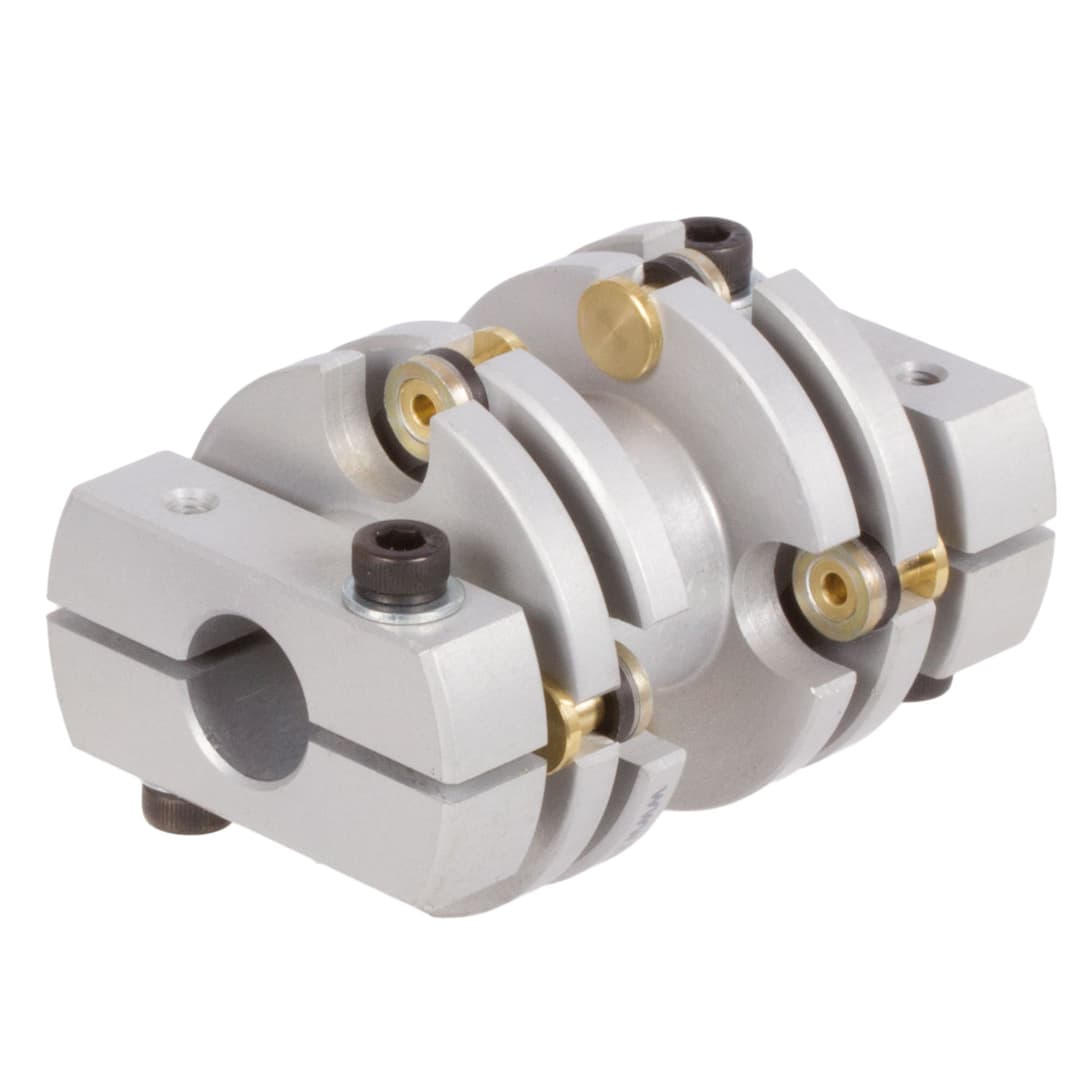

Name: Membrane coupling MEM with clamping hub bore both sides 10mm max. torque 5.6Nm
Brand: MÄDLER
Price: 137.54 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Torque	57.103 kg·cm
Weight	55 g

Other characteristics

Bore diameter	10 mm
Max misalignment angular	3
Max misalignment axial	0.2 mm
Max speed	5 U/min
Max torque	5.6 Nm
Outer diameter	33.5 mm
Temperature max.	120 °C
Temperature min.	-40 °C
Torsional stiffness	980 Nm/rad
Total length	50.8 mm
Coupling type	Torsionally stiff. angular/transv./long flexible
Electrically insulating	No

Description

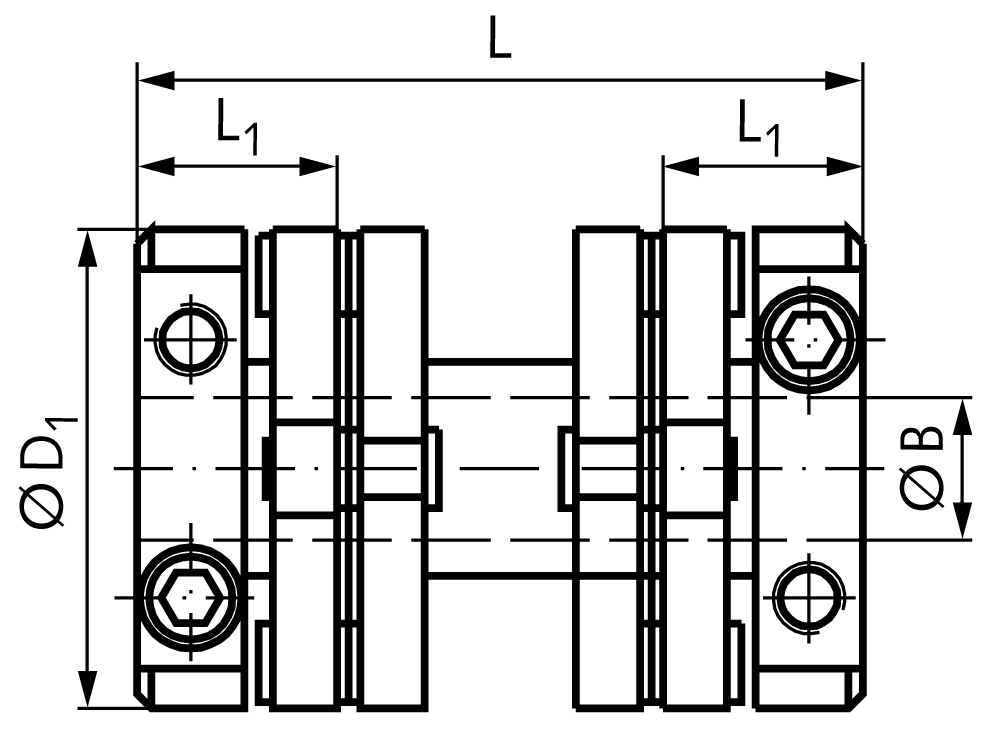

Materials: Hubs and sleeves: Aluminium alloy 2011T3 and 2011T8 BS 4300/5 FC1, clear anodised finish. Membranes: stainless high-quality spring steel. Screw connection: Screws: heat-treated steel, black oxide finish. Bushes: Steel zinc-plated and chromated black. Connecting parts: Heat-treated steel, black oxide finish. Temperature range: -40°C to +120°C. Torsionally-stiff construction, no moving parts, all-metal design, low moment of inertia. The functional principle offers the highest operational readiness to be achieved with flexible couplings. Excellent kinematic properties and high torsion-spring stiffness. Suitable for servo drives. Tolerant flexural system and a dynamically balanced construction for high-end positioning and servo drives. Operating Factors: Type of Load – Operating Factor Uniform Load – 1,5 Alternating Load – 2 Shock load – 3 Reversing shock load – 4 *depth of bore, remaining length relieved.
