MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

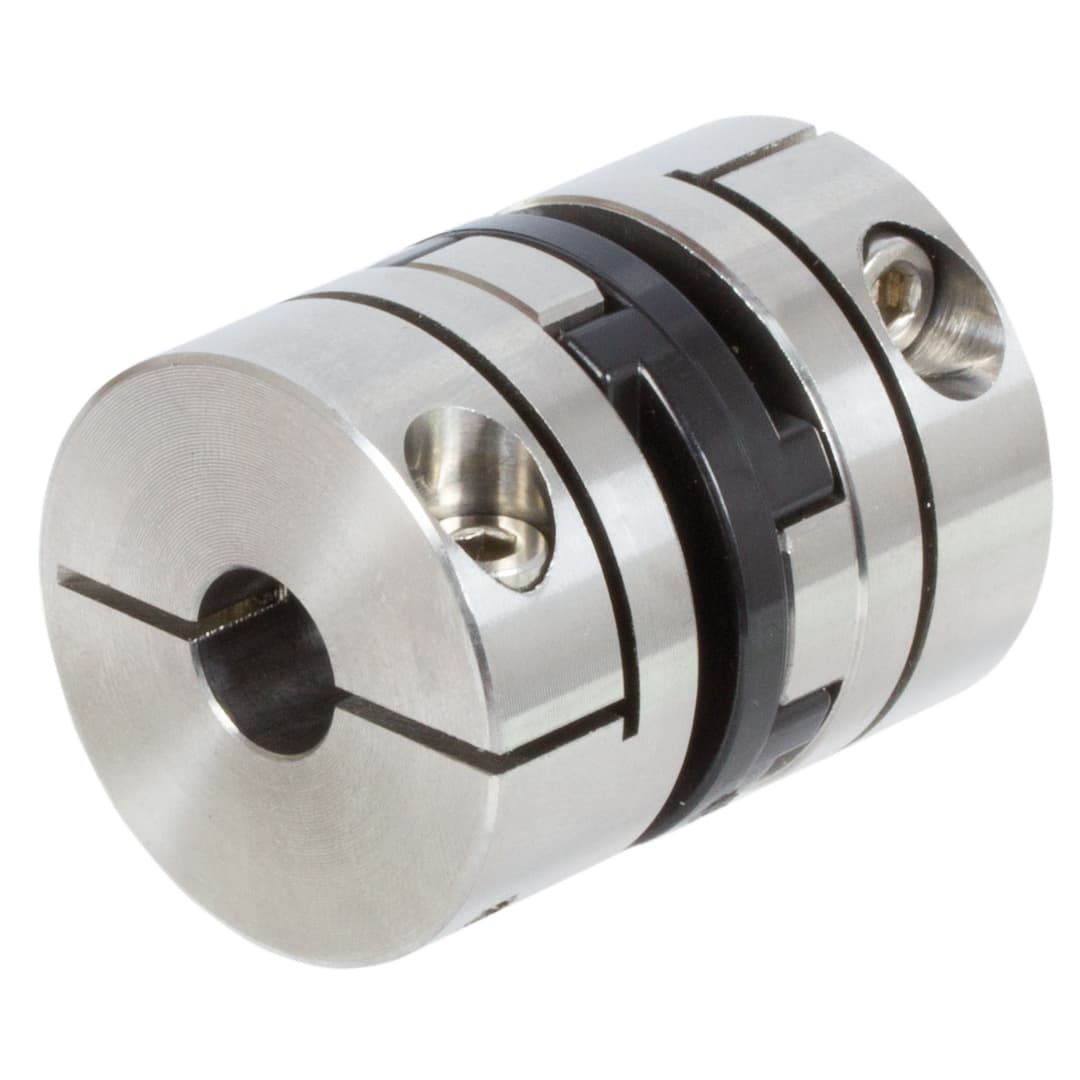

Torsionally-stiff coupling HFD with through hole bore 6mm max. torque 4.0 Nm outside diameter 25.4mm stainless steel 1.4305
Manufacturer part no. 60199407
$52.78≈ 45.84 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €45.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.17 |
| Total delivered | €73.01 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 40.788 kg·cm |
| Weight | 76 g |
Other characteristics
| Bore diameter | 6 mm |
| Max misalignment angular at 3000 min 1 | 0.5 |
| Max misalignment axial | 0.1 mm |
| Max speed | 3 U/min |
| Max torque | 4 Nm |
| Outer diameter d1 mm | 25.4 mm |
| Stat breaking torque | 13 Nm |
| Temperature max. | 60 °C |
| Temperature min. | -20 °C |
| Torsional stiffness | 205 Nm/rad |
| Total length | 32.4 mm |
| Coupling type | Torsionally stiff. transversal flexibility |
Description
Material: Hubs made of stainless steel 1.4305 (AISI 303). Sliding disc made of black polyacetal. These 3-part zero backlash couplings provide electrical insulation. They consist of two hubs and a sliding disc. They are versatile and of robust design. Large radial compensation, easy mounting even in confined spaces. Applications: Ideal for stepper motors due to the damping properties of plastic sliding disc. Positioning drives, position encoders and incremental or absolute encoders, pumps etc.
