MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

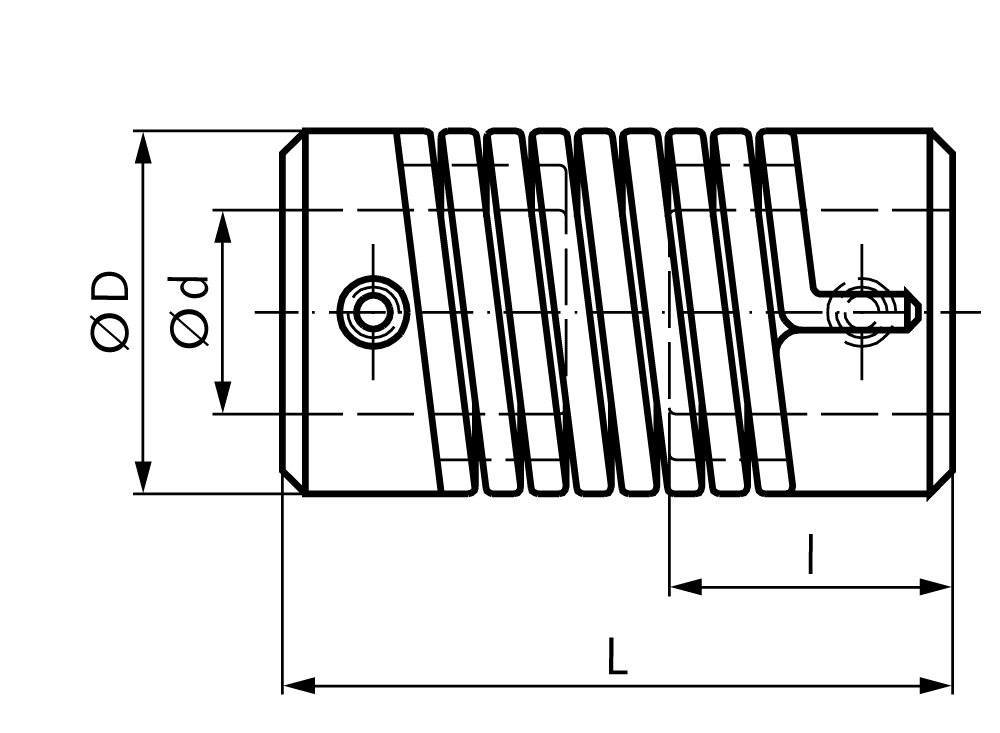

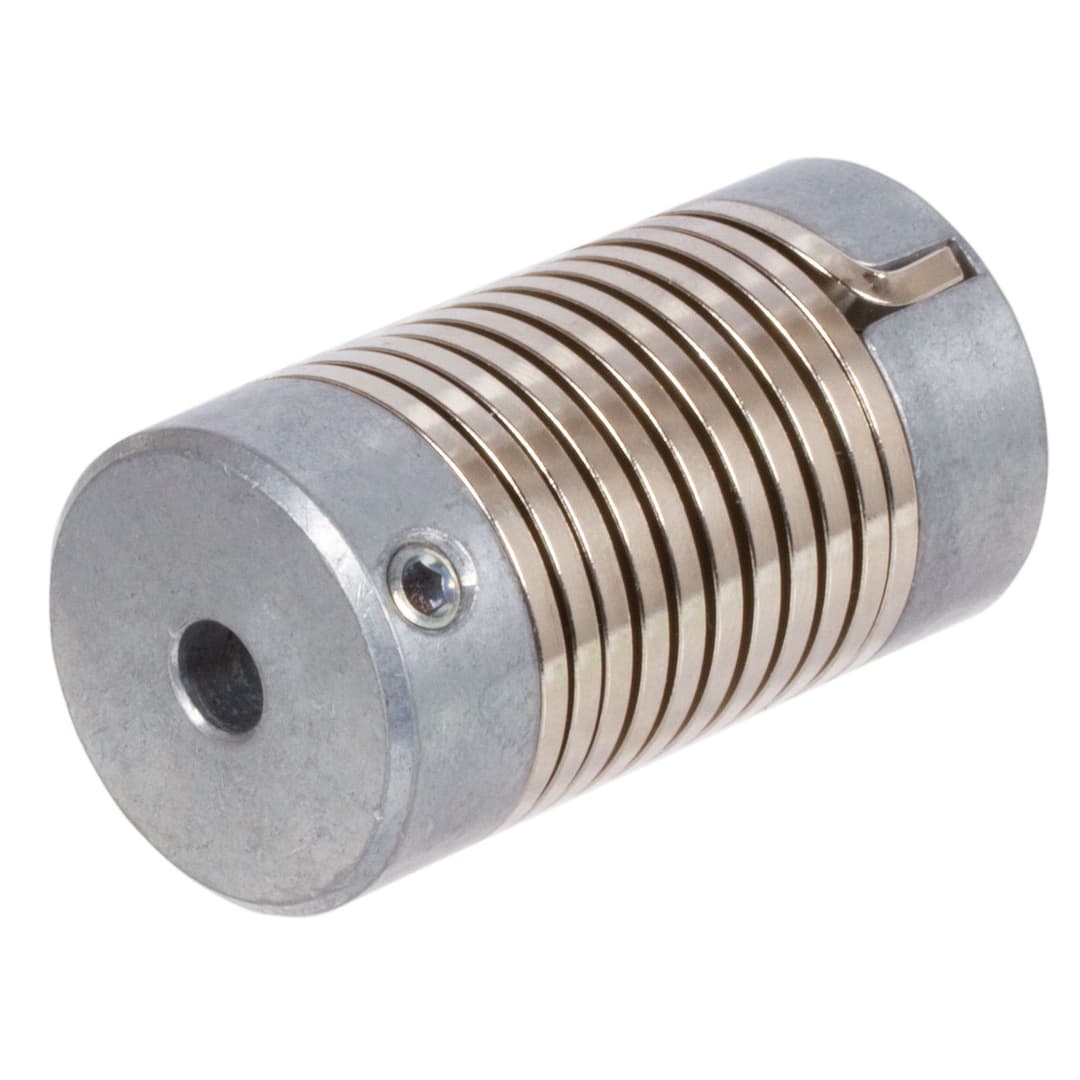

Flexible coupling EK nominal torque 0.5Nm with pilot bore overall length 35mm outer diameter 16mm
Manufacturer part no. 60200100
$32.96≈ 28.62 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €28.62 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.72 |
| Total delivered | €52.34 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 5.099 kg·cm |
| Weight | 28 g |
Other characteristics
| Max bore diameter | 8 mm |
| Max misalignment angular | 5 |
| Max misalignment axial | 1 mm |
| Max misalignment radial | 1 mm |
| Nominal torque | 0.5 Nm |
| Pilot hole | 3 mm |
| Temperature max. | 120 °C |
| Temperature min. | -40 °C |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating | No |
| Material | Zinc die-cast |
| Max speed | 3000 min-1 |
Description
Material: Hubs made of zinc diecast, Spring: Spring steel type C zinc-plated. These couplings are elastic all-metal couplings, with hubs and spring bodies made of rustproof metal. The couplings only have a one-layer spring body. They are, however, flexible in all directions, suitable for both rotational directions and maintenance-free. They are locked against rotation with allen set screws. Temperature range from -40°C to +120°C. Couplings are available pre-drilled ex stock. Customized bores and feather-key grooves available at surcharge.
