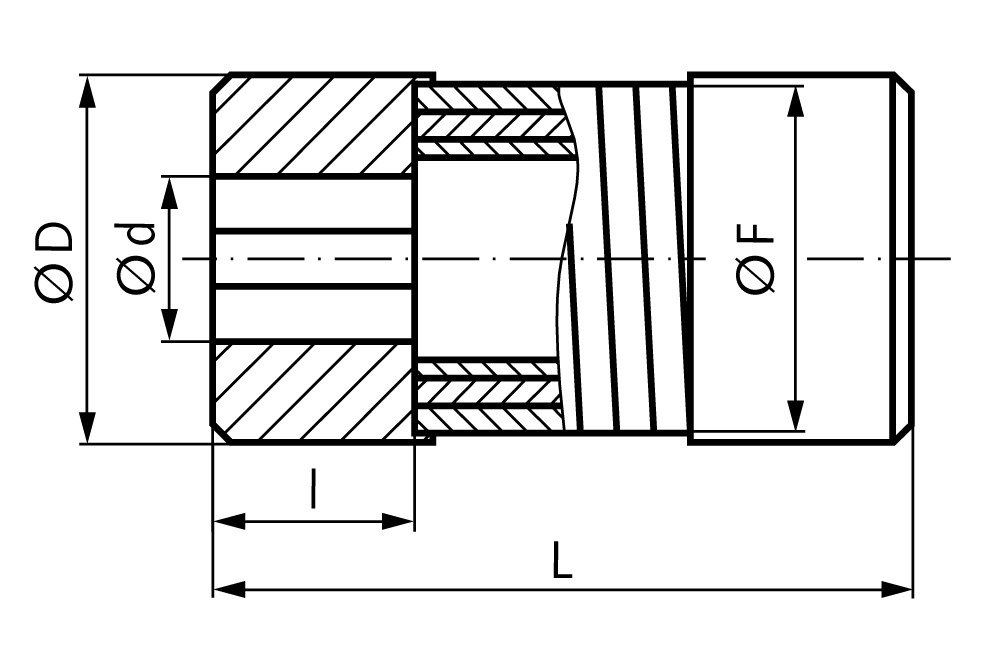

Flexible coupling EL size 40 nominal torque 300Nm short version pilot bore length 170mm outer diameter 80mm
Manufacturer part no. 60230000
$743.43≈ 662.30 €
Price summary
Listed by MÄDLER at €662.30. Delivered to France, including shipping, VAT and any customs duty, it comes to about €812.76. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €662.30 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €135.46 |
| Total delivered | €812.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 3 059,1 kg·cm |
| Weight | 4.16 kg |
Other characteristics
| Max bore diameter for keyway | 40 mm |
| Max bore diameter for pin | 50 mm |
| Max misalignment angle | 3 ° |
| Max misalignment axial | 2 mm |
| Max misalignment radial | 1.2 mm |
| Max torque | 300 Nm |
| Outer diameter | 80 mm |
| Pilot hole | 21 mm |
| Temperature max. | 120 °C |
| Temperature min. | -40 °C |
| Total length | 170 mm |
| Coupling type | Elastic. angular/transv./long flexible |
Description
Material: Hubs 11 SMn Pb 37, from Ø 55 mm CK45. Spring: Spring steel type C. These couplings are elastic all-metal couplings and completely maintenance free. The all-metal design leads to a strong resistance against oil and higher temperatures: -40°C to +100°C. The elastic part consists of a spring body, made up of three layers of wound springs welded into the connecting hubs. The couplings are suitable for both rotating directions. They can be locked against rotation with a feather key or with pins. The couplings are pressfitted. Demounting is done by pressing or pulling off. Vibrations and shocks are largely absorbed. Depending on the length of the coupling – S, L or Db – bending of 3 – 6° or axial displacement of 3 – 6% of the nominal shaft diametre are possible. Couplings are available pre-drilled ex stock. Customized bores and feather-key grooves available at surcharge.
