MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

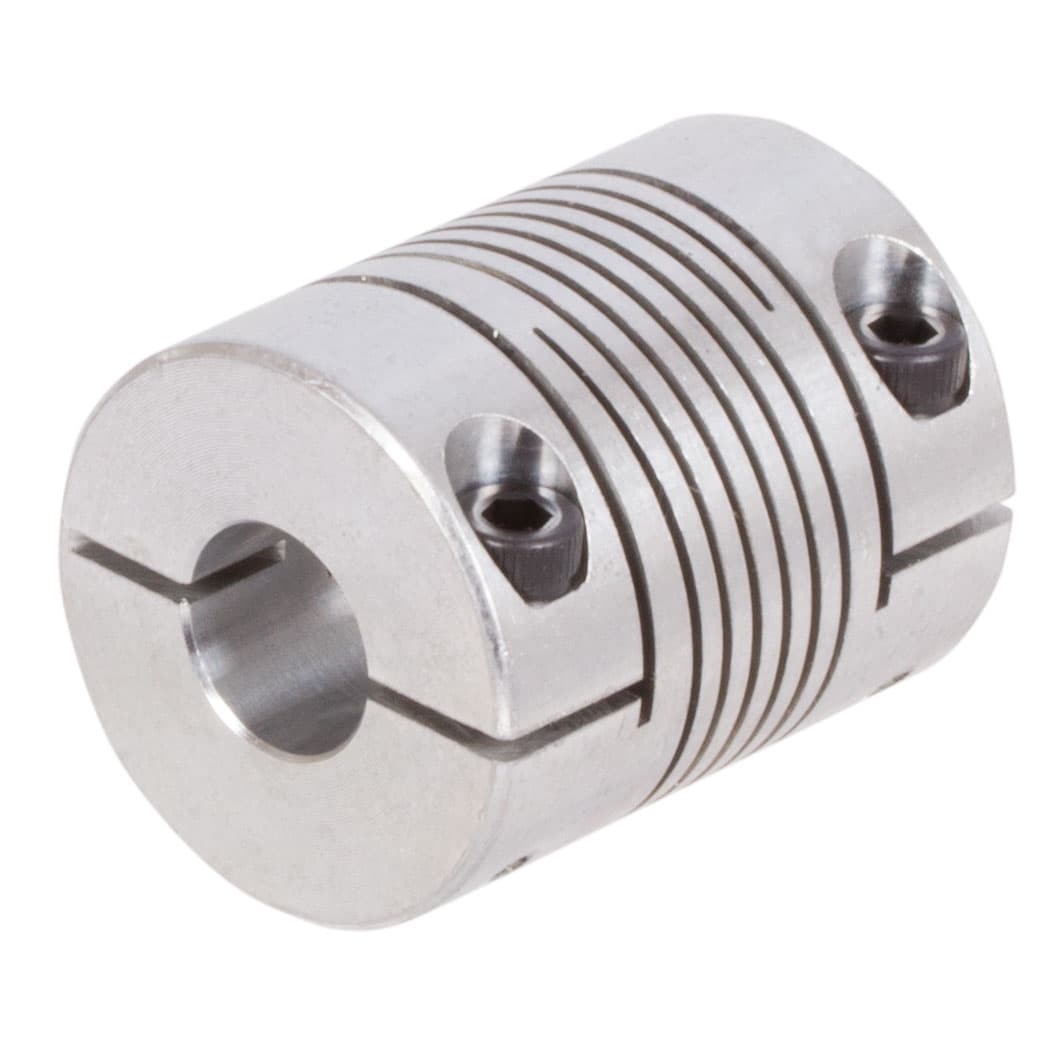

Beam coupling KA made from aluminium max. torque 4.0 Nm overall length 31.75mm outer diameter 25.40mm both sides bore 6mm
Manufacturer part no. 60272400
$36.45≈ 31.65 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €31.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.33 |
| Total delivered | €55.98 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 40.788 kg·cm |
| Weight | 32 g |
Other characteristics
| Bore diameter | 6 mm |
| Max bore diameter | 11 mm |
| Max misalignment angular | 5 |
| Max misalignment axial | 0 mm |
| Max torque | 4 Nm |
| Outer diameter | 25.4 mm |
| Temperature max. | 120 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 0.9 Nm |
| Total length | 31.75 mm |
| Bolts size | M 3 |
| Coupling type | Torsionally stiff. angular/transversal flexible |
Description
Material: Aluminium 2014A. – torsionally rigid design. – zero backlash. – perfect transmission of torque. – very low restoring force. * Please regard the operating factors. See PDF-catalog pages. ** Shaft can be pushed in further. Middle of coupling is relieved. 1) Against surcharge. Number of screws: 1 screw on each side.
