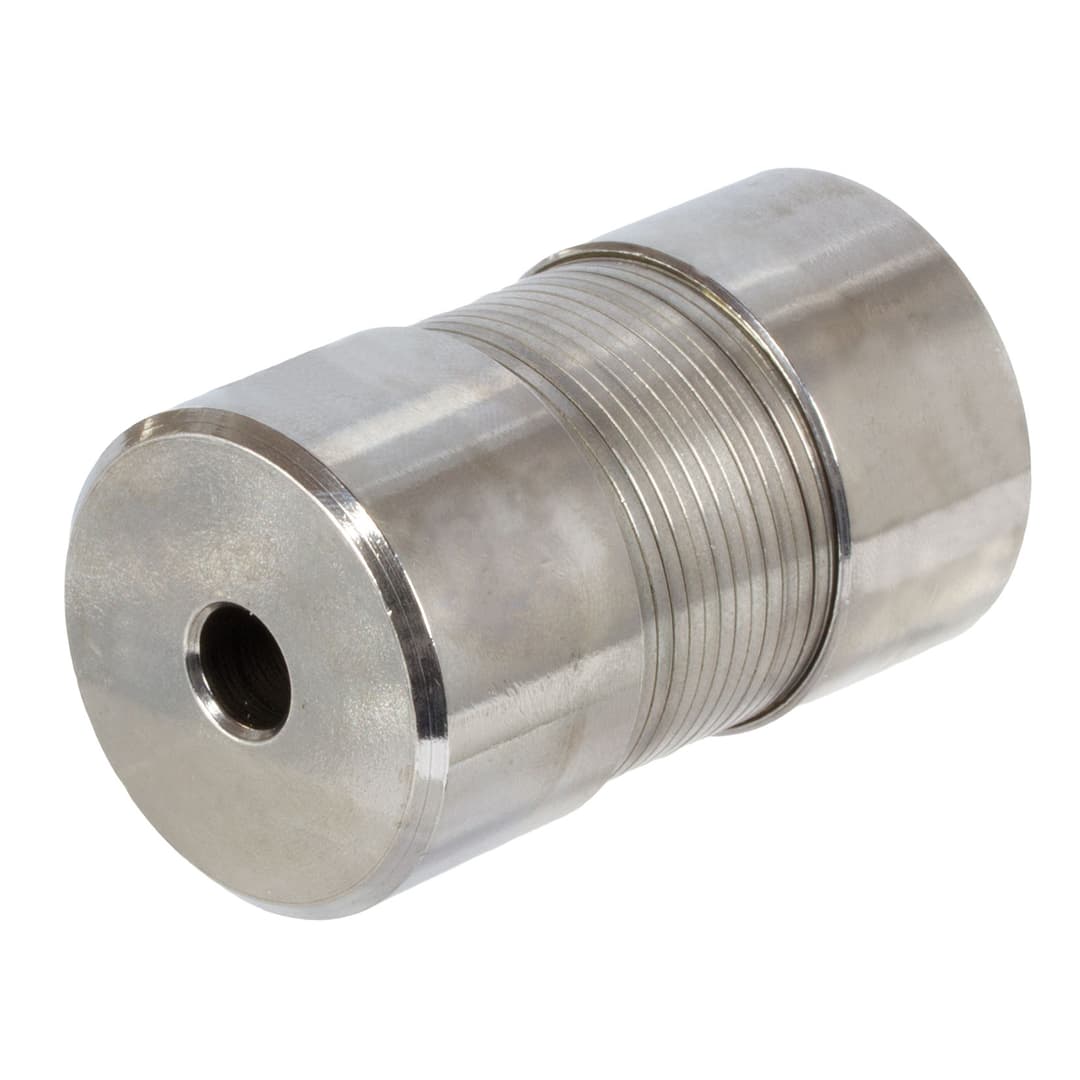

Name: Flexible coupling EL size 6 nominal torque 2.5Nm short version pilot bore stainless steel 1.4305 length 25mm outer diameter 17mm
Brand: MÄDLER
Price: 111.24 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Torque	25.493 kg·cm
Weight	32 g

Other characteristics

Max bore diameter for keyway	10 mm
Max bore diameter for pin	6 mm
Max misalignment angle	3 °
Max misalignment axial	0.4 mm
Max misalignment radial	0.18 mm
Max torque	2.5 Nm
Outer diameter	17 mm
Pilot hole	2.5 mm
Temperature max.	300 °C
Temperature min.	-40 °C
Total length	25 mm
Coupling type	Elastic. angular/transv./long flexible

Description

Material: Hub 1.4305 (AISI 303). Spring: Spring steel 1.4310. These couplings are elastic all-metal couplings and completely maintenance free. The all-metal design leads to a strong resistance against oil and higher temperature range: -40°C to +300°C. The elastic part consists of a spring body, made up of three layers of wound springs. The couplings are suitable for both rotating directions. They can be locked against rotation with a feather key or with pins. The couplings are pressfitted. Demounting is done by pressing or pulling off. Vibrations and shocks are largely absorbed. Depending on the length of the coupling – S, L or Db – bending of 3 – 6° or axial displacement of 3 – 6% of the nominal shaft diametre are possible. Couplings are available pre-drilled ex stock. Customized bores and feather-key grooves available at surcharge.
