MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

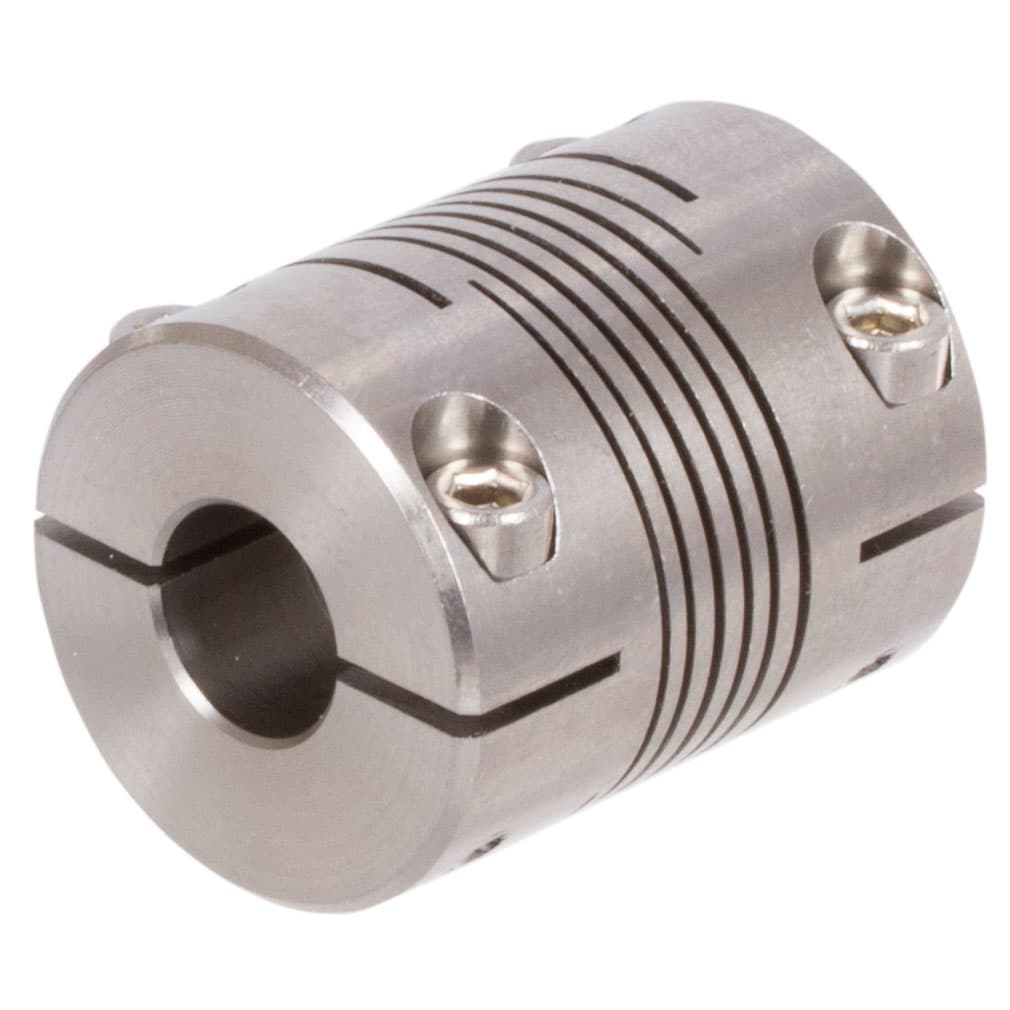

Beam coupling KA made from stainless steel max. torque 1.8 Nm overall length 20.30mm outer diameter 15.87mm both sides bore 6mm
Manufacturer part no. 60299616
$58.55≈ 50.85 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €50.85 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.17 |
| Total delivered | €79.02 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 18.355 kg·cm |
| Weight | 22 g |
Other characteristics
| Bore diameter | 6 mm |
| Max bore diameter | 6.35 mm |
| Max misalignment angular | 5 |
| Max misalignment axial | 0 mm |
| Max torque | 1.8 Nm |
| Outer diameter | 15.87 mm |
| Temperature max. | 120 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 0.68 Nm |
| Total length | 20.3 mm |
| Bolts size | M 2.5 |
| Coupling type | Torsionally stiff. angular/transversal flexible |
Description
Material: 1.4305 (AISI 303). – torsionally rigid design. – zero backlash- – perfect transmission of torque. – very low restoring force. * Please regard the operating factors. See PDF-catalog pages. ** Shaft can be pushed in further. Middle of coupling is relieved. Part. 60299600 in set-screw style. 1) Against surcharge
