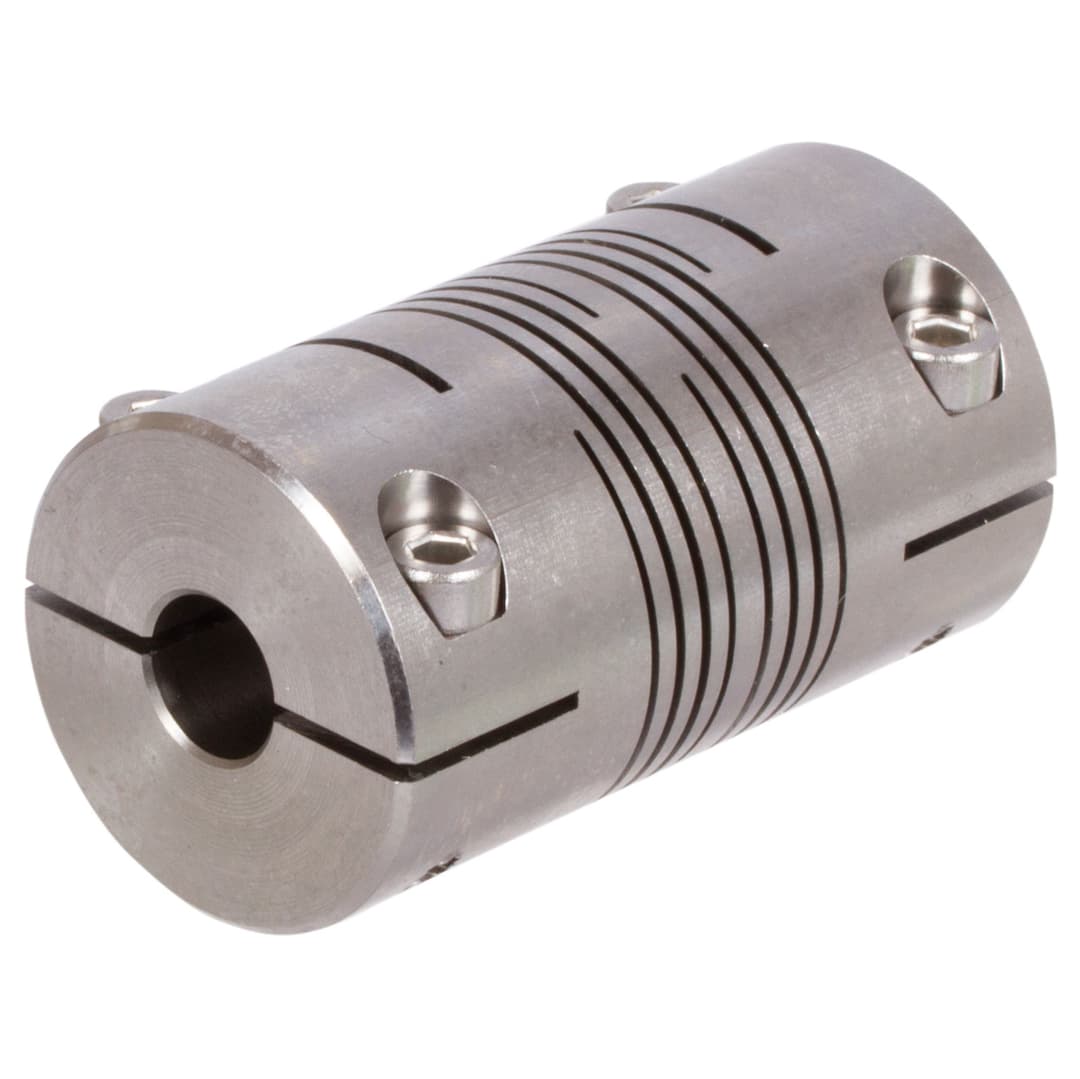

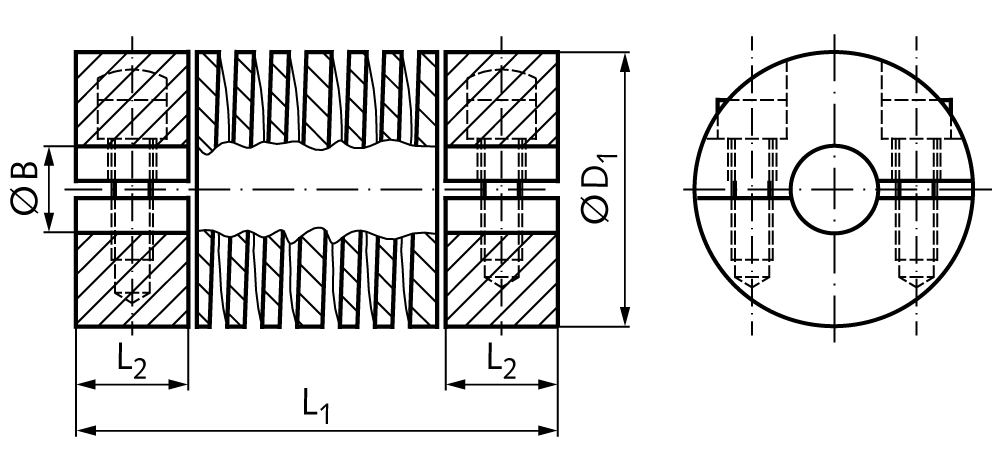

Beam coupling LA made from stainless steel max. torque 48Nm overall length 76.20mm outer diameter 44.45mm both sides bore 19mm
Manufacturer part no. 60299856
$234.76≈ 203.87 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €203.87 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €43.77 |
| Total delivered | €262.64 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 489.456 kg·cm |
| Weight | 730 g |
Other characteristics
| Bore diameter | 19 mm |
| Max bore diameter | 22 mm |
| Max misalignment angular | 7 |
| Max misalignment axial | 0 mm |
| Max torque | 48 Nm |
| Outer diameter | 44.45 mm |
| Temperature max. | 120 °C |
| Temperature min. | -40 °C |
| Tightening torque fastening screws | 5.85 Nm |
| Total length | 76.2 mm |
| Bolts size | M 5 |
| Coupling type | Torsionally stiff. angular/transversal flexible |
Description
Material: 1.4305 (AISI 303). – torsionally rigid design. – zero backlash. – perfect transmission of torque. – very low restoring force. * Please regard the operating factors. See PDF-catalog pages. ** Shaft must not pushed in any further. 1) Against surcharge.
