MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

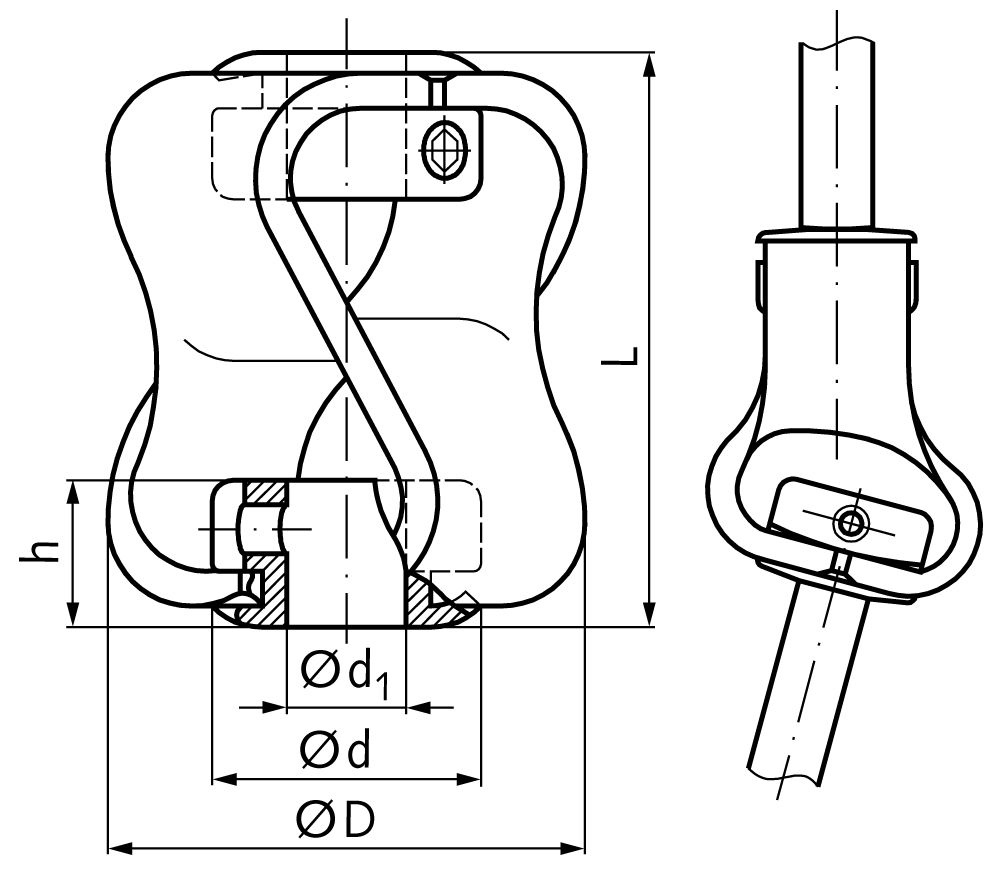

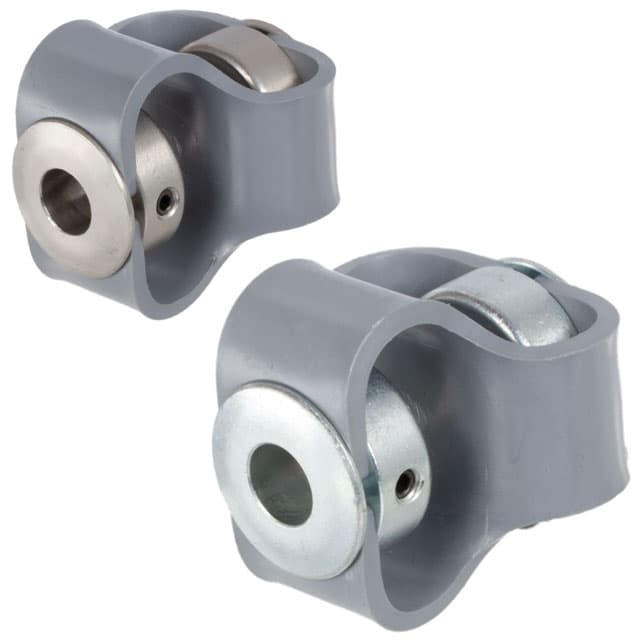

Elastic coupling PU both sides bore 12mm hubs made from stainless steel
Manufacturer part no. 60399205
$75.43≈ 65.51 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €65.51 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.10 |
| Total delivered | €96.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 124 g |
Other characteristics
| Hub diameter | 28 mm |
| Hub length | 16 mm |
| Max length | 55 mm |
| Max misalignment angular | 15 |
| Max misalignment axial | 8.5 mm |
| Max speed | 3 U/min |
| Outer diameter | 54 mm |
| Temperature max. | 100 °C |
| Temperature min. | -40 °C |
| Bore diameter | 12 (16) mm |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating | Yes |
| Material | Polyester/Stainless steel |
Description
Material: polyester, hubs stainless steel 1.4305 (AISI 303). These torsionally-stiff couplings made in one-part from flexible plastic are easily mounted. They show very good chemical resistance against acids, bases, solvents, greases and oils. They have a very high tear resistance, are highly flexible at low temperatures, have good shock and vibration damping properties and are corrosion resistant. Max. speed: 3.000 tr/min. Temperature range: -40°C to +100°C. 1) max. torque at max. shaft misalignment 2) max. torque at a shaft misalignment of 1° Angular, 2 mm axial and 0,5 mm radial.
