Name: Elastic coupling DXA size 42 max. torque 920Nm nominal torque 460Nm outer diameter 92mm overall length 110mm with pilot bore
Brand: MÄDLER
Price: 113.80 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Torque	9 381,2 kg·cm
Weight	2.38 kg

Other characteristics

Hub diameter	68 mm
Max alternating torque	140 Nm
Max bore diameter	42 mm
Max misalignment angle	0.7 °
Max misalignment axial	1.5 mm
Max misalignment radial	0.4 mm
Max speed	7 400 U/min
Max torque	920 Nm
Nominal torque	460 Nm
Outer diameter	92 mm
Pilot hole	14 mm
Predecessor partno	60 404 200

Description

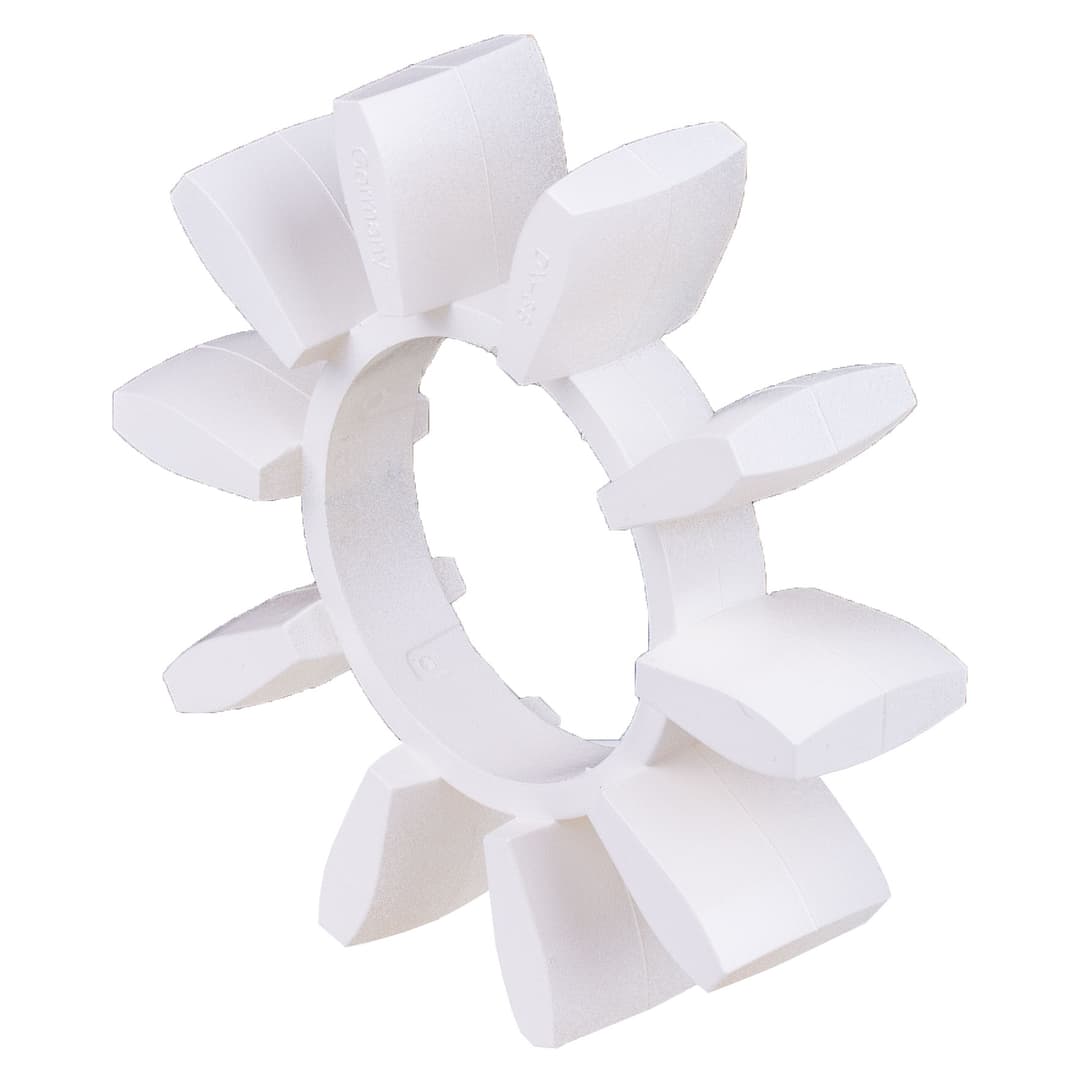

Material: Up to size 28: Hubs made from Aluminium. From size 32: Hubs made from grey cast iron GG25. Insert made from Polyurethane, shore hardness 92º A, white. Insertable elastic coupling, for high torques. Not backlash-free. Does not transfer any axial forces. Robust component for relatively large shaft offset. Particularly suitable for large radial offset. Improved version. Special tooth profile and machined claws result in longer lifetime. Temperature range: -20ºC to +80ºC. Couplings are available pre-drilled ex stock.Customized bores and feather-key grooves available at extra charge. 1) At mounting, the distance between the hubs must be measure E to allow the max. shaft misalignment.
