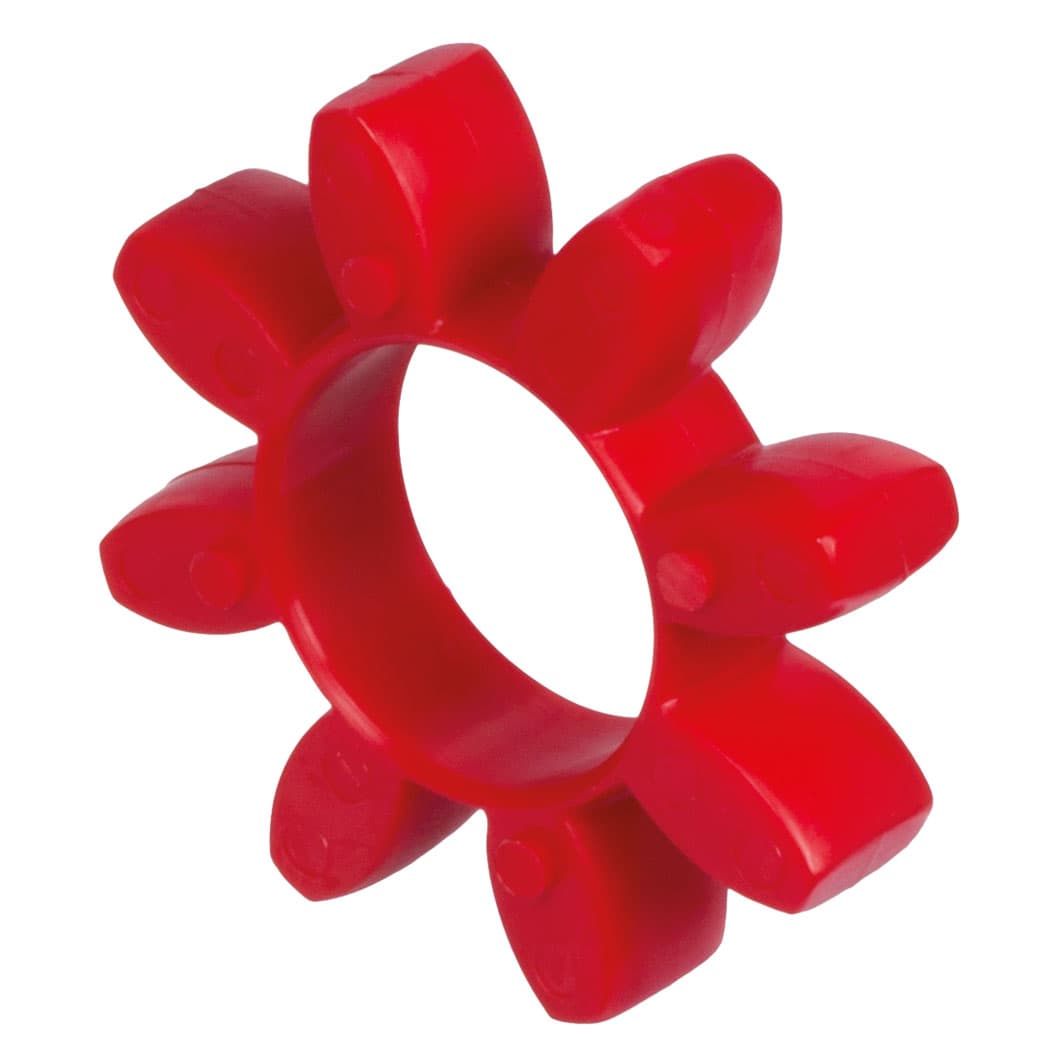

Spider (Coupling insert) standard 95 Shore A red size 90 outside diameter 200mm
Manufacturer part no. 60509890
$195.31≈ 174.00 €
Price summary
Listed by MÄDLER at €174.00. Delivered to France, including shipping, VAT and any customs duty, it comes to about €226.80. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €174.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €37.80 |
| Total delivered | €226.80 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Price history
3 price/stock records since 8/4/2026
Specifications (automatically extracted)
Mechanical
| Weight | 700 g |
Other characteristics
| Max alternating torque | 936 Nm |
| Max torque | 7 200 Nm |
| No of teeth | 10 |
| Nominal torque | 3 600 Nm |
| Outer diameter | 200 mm |
| Size | 90 |
| Torsional angle at max torque | 5 ° |
| Torsional angle at nominal torque | 3.2 ° |
| Material | Polyurethane (medium hard) |
| Surface | Blank |
Description
Material: Polyurethane, shore hardness 98° A (medium hard), red. From size 65 shore hardness 95° A. Spiders (plastic inserts) for backlash-free elastic couplings (jaw couplings) like RNH and RNK and foreign parts of the same kind from other suppliers. Medium hard type, for high torques. Temperature range -30°C to +100°C.
