MÄDLERMÄDLER· Mechanics & transmission

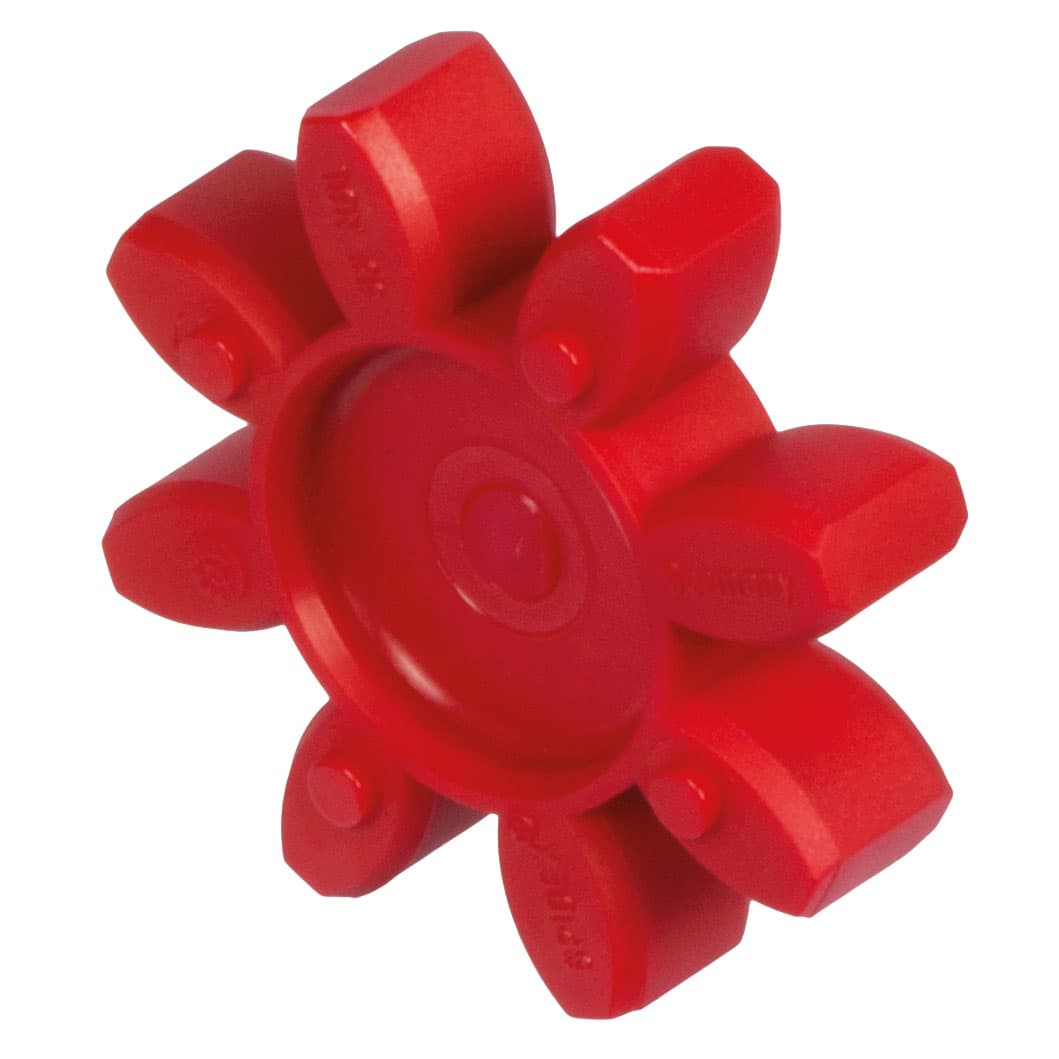

Spider (coupling insert) backlash-free 98 Shore A red size 24 outside diameter 55mm
Manufacturer part no. 60519824
$6.96≈ 6.20 €
Price summary
Listed by MÄDLER at €6.20. Delivered to France, including shipping, VAT and any customs duty, it comes to about €25.44. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €6.20 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.24 |
| Total delivered | €25.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Price history
2 price/stock records since 8/4/2026
Specifications (automatically extracted)
Mechanical
| Weight | 18 g |
Other characteristics
| Max torque | 120 Nm |
| No of teeth | 8 |
| Nominal torque | 60 Nm |
| Outer diameter | 55 mm |
| Size | 24 |
| Stiffn radial | 2 560 N/mm |
| Tors spring stiffness dynam | 6 190 Nm/rad |
| Tors spring stiffness static | 2 060 Nm/rad |
| Material | Polyurethane (medium hard) |
| Surface | Blank |
Description
Material: Polyurethane, shore hardness 98° A (medium hard), red. Spiders (plastic inserts) for backlash-free elastic couplings (jaw couplings) like RNH, RNK, RNKC, connecting shafts RNW and foreign parts of the same kind from other suppliers. Medium hard type, for high torques. Temperature range -30°C to +100°C.
