MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings
Elastic coupling hub RNT size 28 type IS for taper bush 1108
Manufacturer part no. 60520201
$18.71≈ 16.25 €
In stock — 21 unitslead time 14 d
Estimated landed cost
| Item | €16.25 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.25 |
| Total delivered | €37.50 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Bore length | 23 mm |
| Distance between the hubs | 20 mm |
| Hub diameter | 65 mm |
| Max misalignment angle | 0.9 ° |
| Max misalignment axial | 1.5 mm |
| Max misalignment radial | 0.25 mm |
| Max speed | 14 U/min |
| Nominal torque at 92 shore | 95 Nm |
| Nominal torque at 98 shore | 160 Nm |
| Outer diameter | 65 mm |
| Size | 28 |
| Spider 92 shore partno | 60 509 228 |
| Spider 98 shore partno | 60 509 828 |
| Taper bushing type | 1 108 |
| Temperature max. |
Description

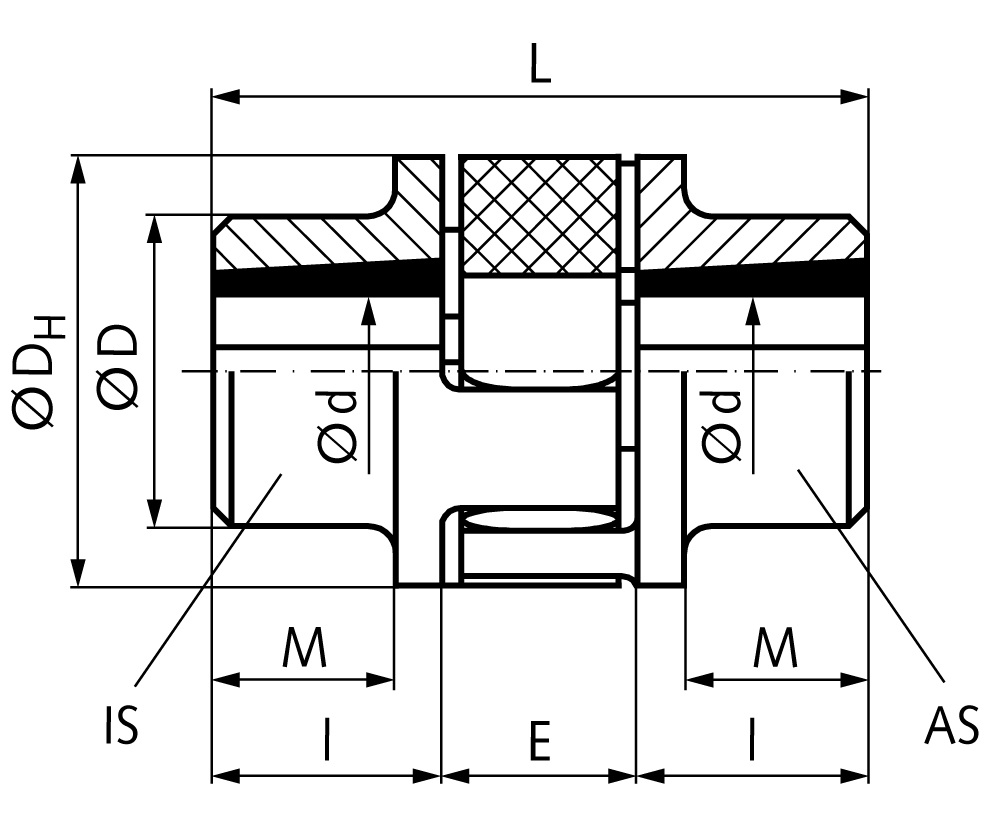

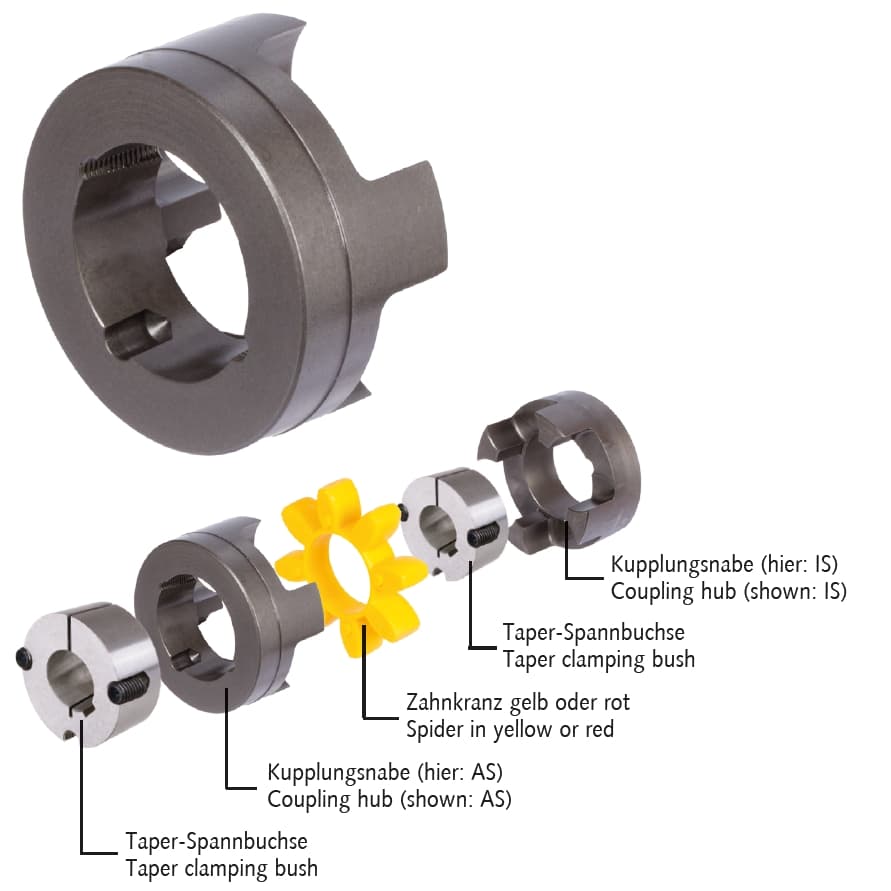

Material: Coupling hubs: Grey cast iron GG25 (GJL-250). Spider: Polyurethane, Shore hardness either 92°A or 98°A. Two coupling hubs combined with one spider and two taper bushes make up a ready-to-install elastic coupling. All components have to be ordered separately. This means accessibility (mounting from the inside or outside) and various bore diameters can be chosen. Temperature range: -20°C to +80°C. Design IS: Mounting of bush from inside. Design AS: Mounting of bush from outside. In this youtube video we show the mounting and demounting of taper bushes: Video clip (3.5 Minutes)
