MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

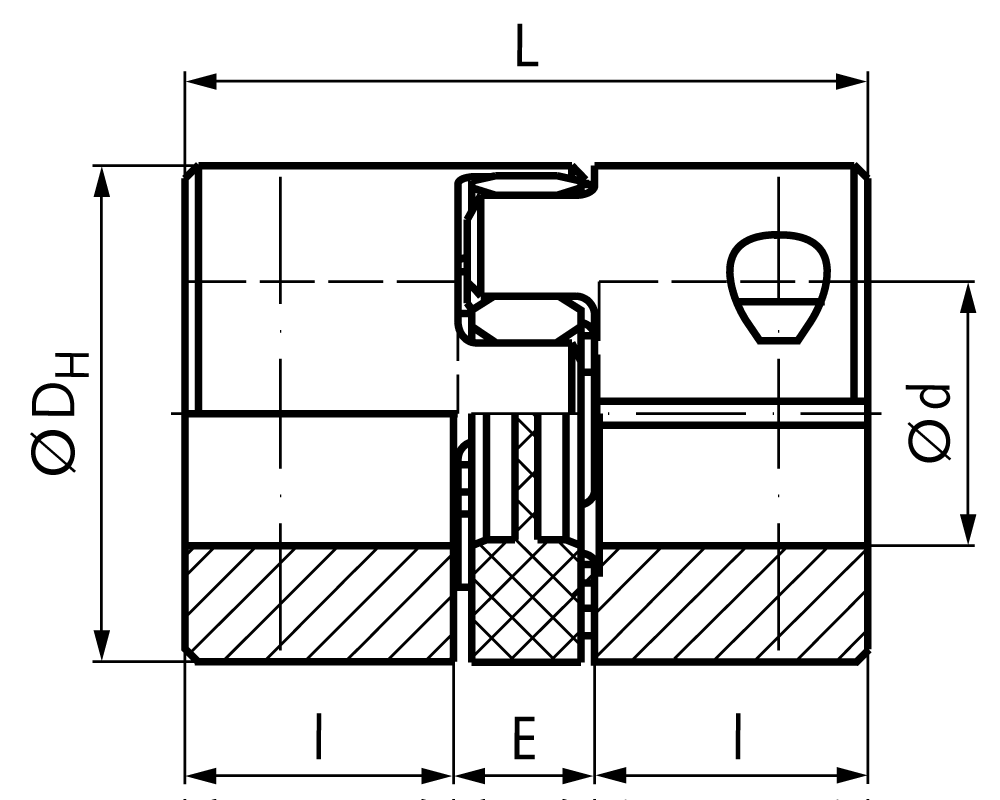

Elastic coupling RNK with clamp hubs backlash-free size 7 boreholes 6mm outer diameter 14mm overall length 22mm insert 92° shore yellow or white
Manufacturer part no. 60540706
$47.91≈ 41.61 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €41.61 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.32 |
| Total delivered | €67.93 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 6 g |
Other characteristics
| Bore | 6 mm |
| Bore length | 7 mm |
| Distance between the hubs | 8 mm |
| Max bore | 7 mm |
| Max misalignment angular | 1 |
| Max torque | 1 Nm |
| Outer diameter | 14 mm |
| Replacement spider | 60 519 207 |
| Size | 7 |
| Temperature max. | 90 °C |
| Temperature min. | -30 °C |
| Total length | 22 mm |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating |
Description
Material: Hubs made from Aluminium. Spider made from Polyurethane. Size 5 – 9: Shore hardness 92°A (gelb oder weiß). From size 14: Shore hardness 98°A (red). – Zero backlash, insertable elastic coupling. – With clamps, ready-to-install for rapid mounting. – Many different sizes and diameters available. – From size 14 can be exchanged with couplings RN, RNH and couplings from many other suppliers. On request with soft spiders 92°A. Temperature range: -30°C to +90°C. Note: Bores with * are pilot bores (not H7). The torque depends on the size of the finished bore.
