MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

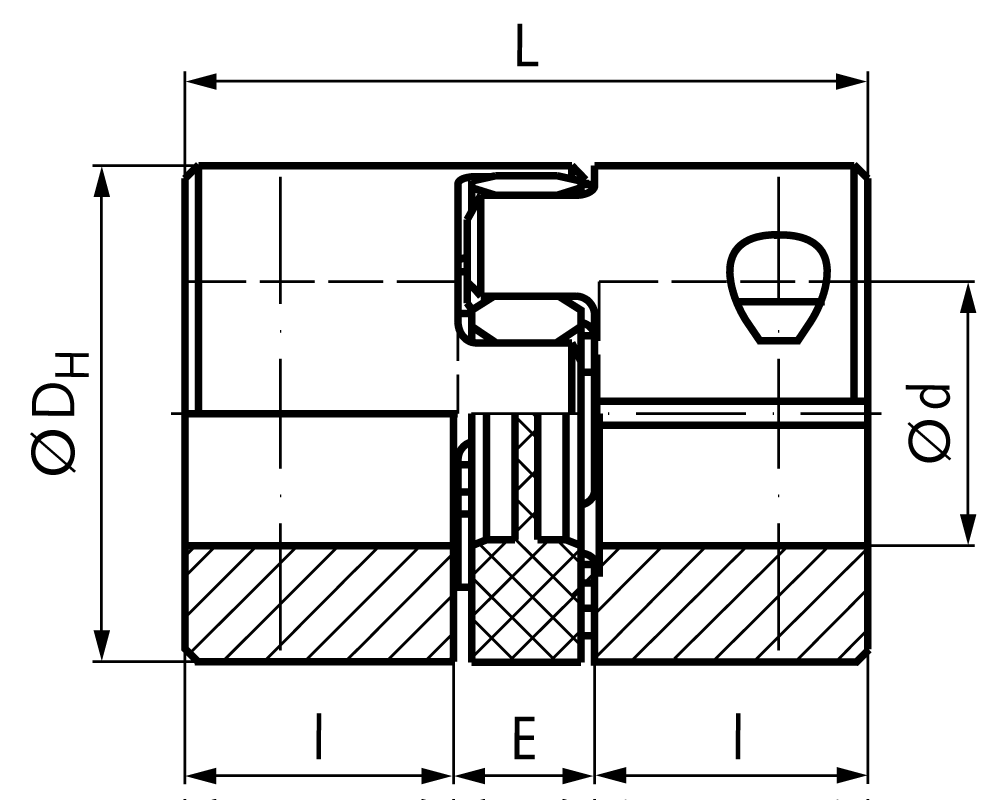

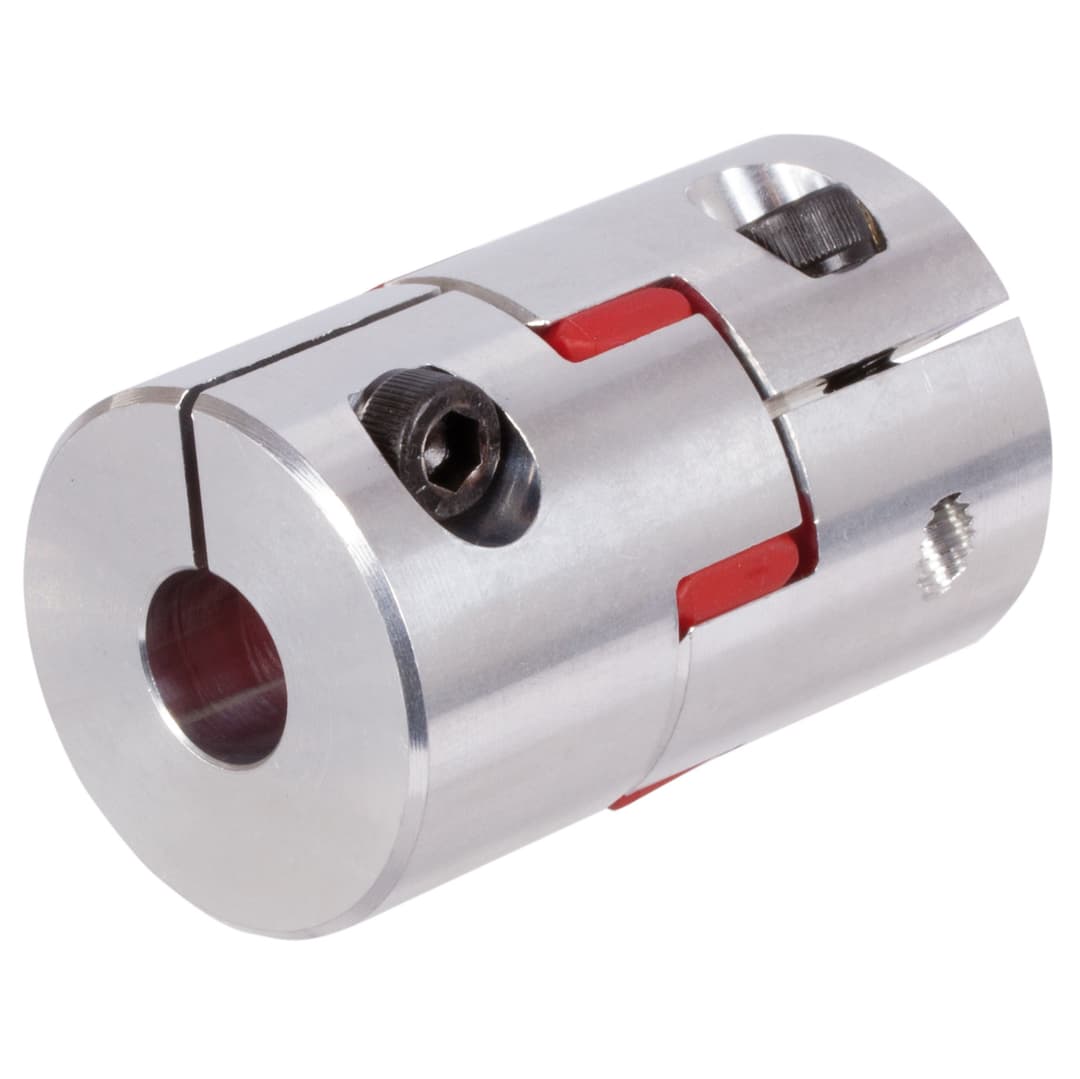

Elastic coupling RNK with clamp hubs backlash-free size 19 boreholes 14mm outer diameter 40mm overall length 66mm insert 98° shore red
Manufacturer part no. 60541914
$79.27≈ 68.84 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €68.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.77 |
| Total delivered | €100.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 150 g |
Other characteristics
| Bore | 14 mm |
| Bore length | 25 mm |
| Distance between the hubs | 16 mm |
| Max bore | 22 mm |
| Max misalignment angular | 0.9 |
| Max torque | 29 Nm |
| Outer diameter | 40 mm |
| Replacement spider | 60 519 819 |
| Size | 19 |
| Temperature max. | 90 °C |
| Temperature min. | -30 °C |
| Total length | 66 mm |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating |
Description
Material: Hubs made from Aluminium. Spider made from Polyurethane. Size 5 – 9: Shore hardness 92°A (gelb oder weiß). From size 14: Shore hardness 98°A (red). – Zero backlash, insertable elastic coupling. – With clamps, ready-to-install for rapid mounting. – Many different sizes and diameters available. – From size 14 can be exchanged with couplings RN, RNH and couplings from many other suppliers. On request with soft spiders 92°A. Temperature range: -30°C to +90°C. Note: Bores with * are pilot bores (not H7). The torque depends on the size of the finished bore.
