MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

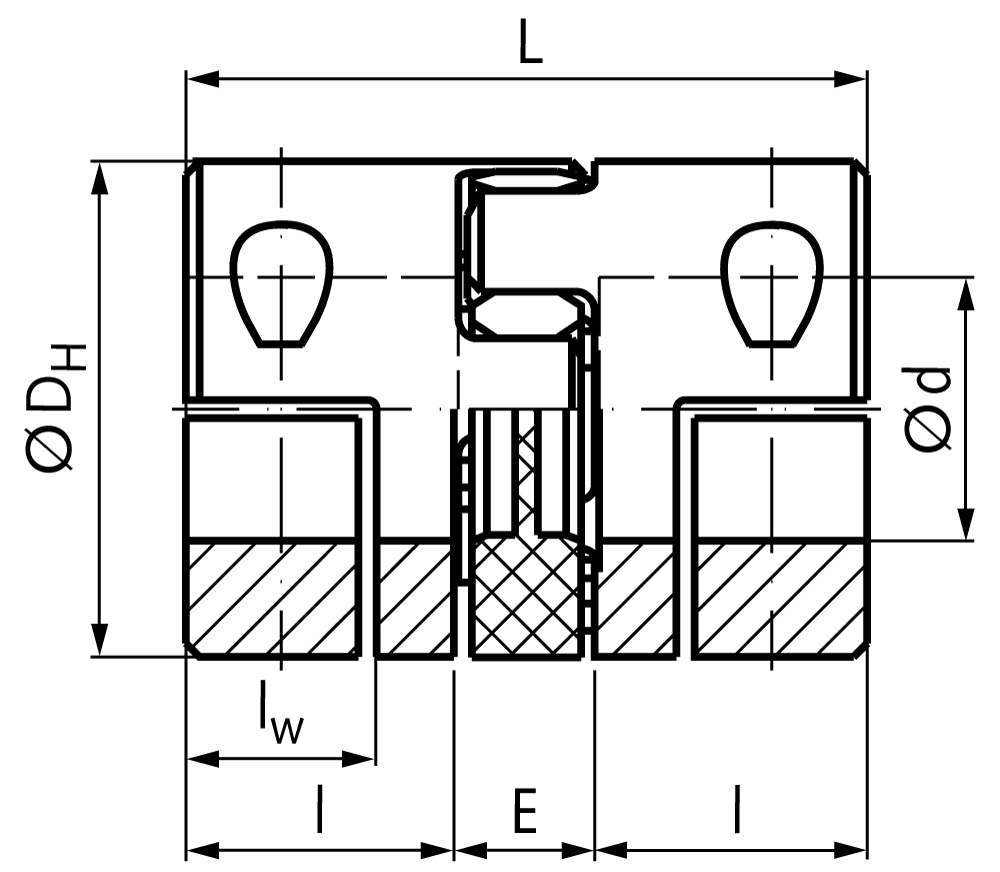

Elastic coupling RNH with half shell clamps backlash-free size 14 prebore 3mm (no H7) outer diameter 30mm overall length 35mm insert 98° shore red
Manufacturer part no. 60551403
$61.70≈ 53.58 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €53.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.72 |
| Total delivered | €82.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 41 g |
Other characteristics
| Bore length | 11 mm |
| Distance between the hubs | 13 mm |
| Max bore | 14 mm |
| Max misalignment angular | 0.9 |
| Outer diameter | 30 mm |
| Replacement spider | 60 519 814 |
| Size | 14 |
| Temperature max. | 90 °C |
| Temperature min. | -30 °C |
| Total length | 35 mm |
| Bore | 3* mm |
| Coupling type | Elastic. angular/transv./long flexible |
| Electrically insulating | No |
| Material |
Description
Material: Hubs made from Aluminium. Spider made from Polyurethane. Shore hardness 98°A (red). – Zero backlash, insertable elastic coupling. – With removable half shell clamps, ready-to-install for rapid mounting with the possibility of demounting without removal of the other units. – Many different sizes and diameters available. – Size exchangeable with couplings RN, RNK and couplings from many other suppliers. On request with soft spiders 92°A. Temperature range: -30°C to +90°C. Note: Bores with * are pilot bores (not H7). The torque depends on the size of the finished bore.
