MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

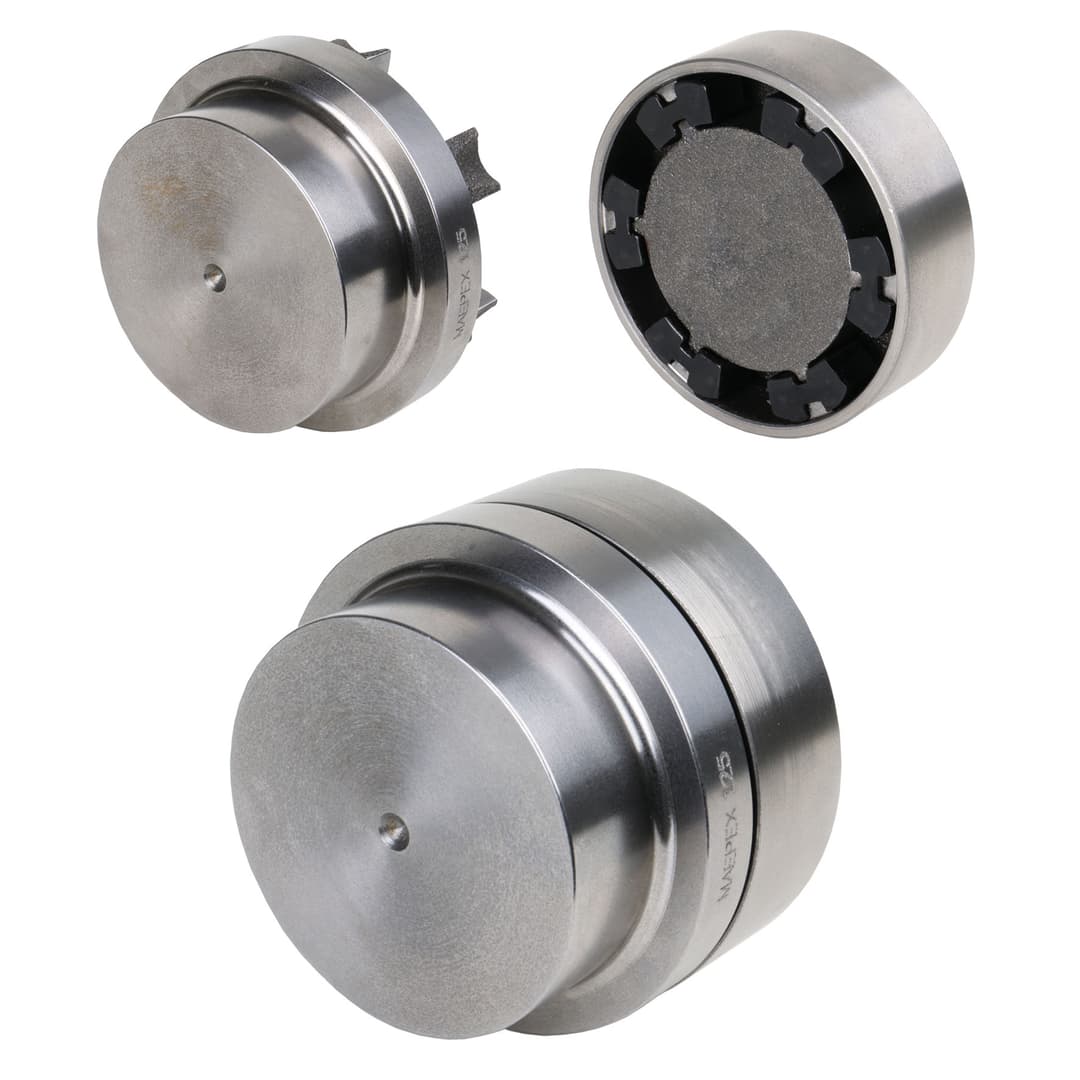

Elastic pin coupling MAEPEX cast iron Baugröße 80 max. torque 180Nm nominal torque 60Nm outer diameter 80mm Länge 62mm no bore
Manufacturer part no. 60560003
$89.73≈ 77.92 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €77.92 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.58 |
| Total delivered | €111.50 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 1 835,5 kg·cm |
| Weight | 1.79 kg |
Other characteristics

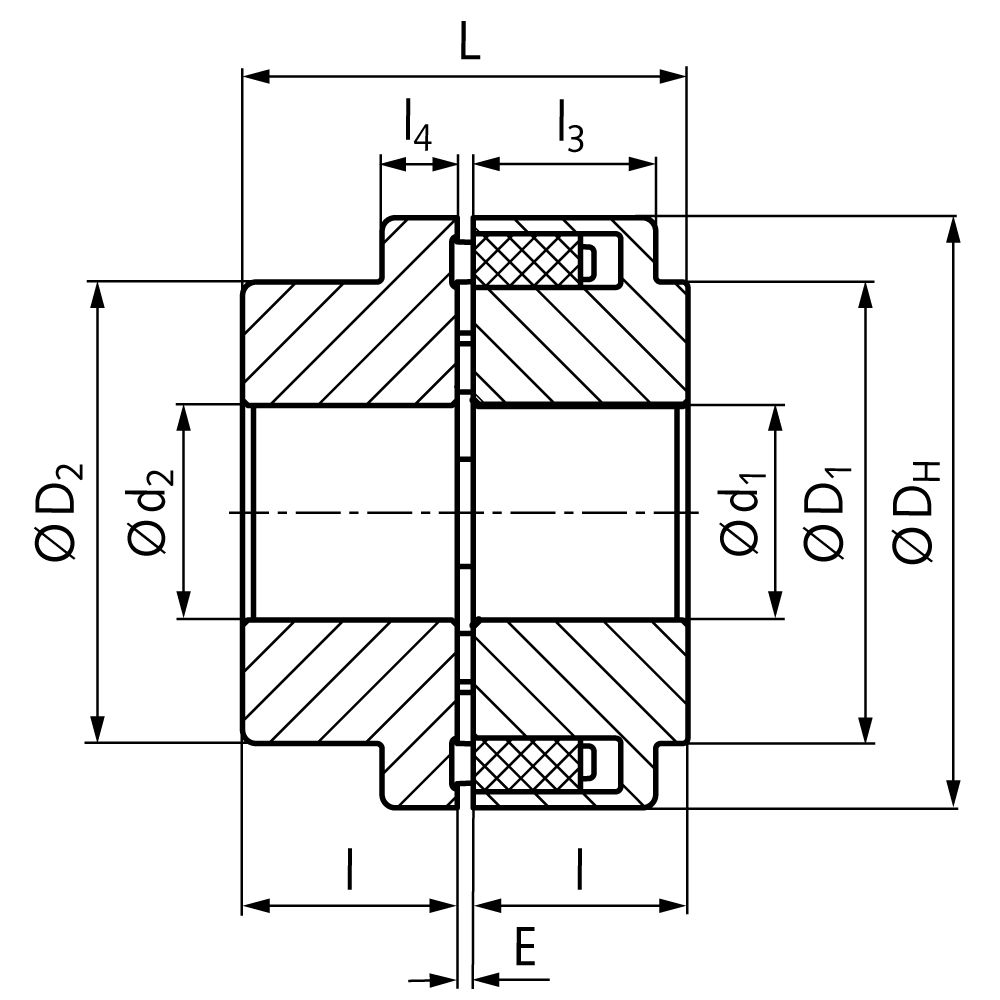

| Flange width l3 | 30 mm |
| Flange width l4 | 10 mm |
| Hub diameter d2 | 68 mm |
| Hub length | 30 mm |
| Max bore d1 | 30 mm |
| Max bore d2 | 38 mm |
| Max misalignment angle | 0.2 ° |
| Max misalignment axial | 2 mm |
| Max misalignment radial | 0.1 mm |
| Max torque | 180 Nm |
| Nominal torque | 60 Nm |
| Outer diameter | 80 mm |
| Size |
Description
Material: Coupling hubs: Grey Cast Iron GG25 (GJL-250). Elastomeres: NBR, hardness 80ºA Shore, black. Torsionally flexible cam coupling, fail-safe, with damping effect. The MÄDLER® version is improved: Machined claws result in longer lifetime. In this YouTube video, we show you how to fit the 2-part MAEPEX coupling, how to replace the elastomers and how to determine the torsional backlash: Film (2,3 Minuten) Couplings are non-bored or pre-bored, depending on the size. * The size 280 has different pilot bores: Pilot bore 52mm on the left side / 47mm on the right side. Customized bores and feather-key grooves available at extra charge. Temperature range: -30ºC to +80ºC.
