Name: Elastic pin coupling MAEPEX 3-part version cast iron Baugröße 125 max. torque 720Nm nominal torque 240Nm outer diameter 125mm Länge 102mm no bore
Brand: MÄDLER
Price: 224.11 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Torque	7 341,8 kg·cm
Weight	6.12 kg

Other characteristics

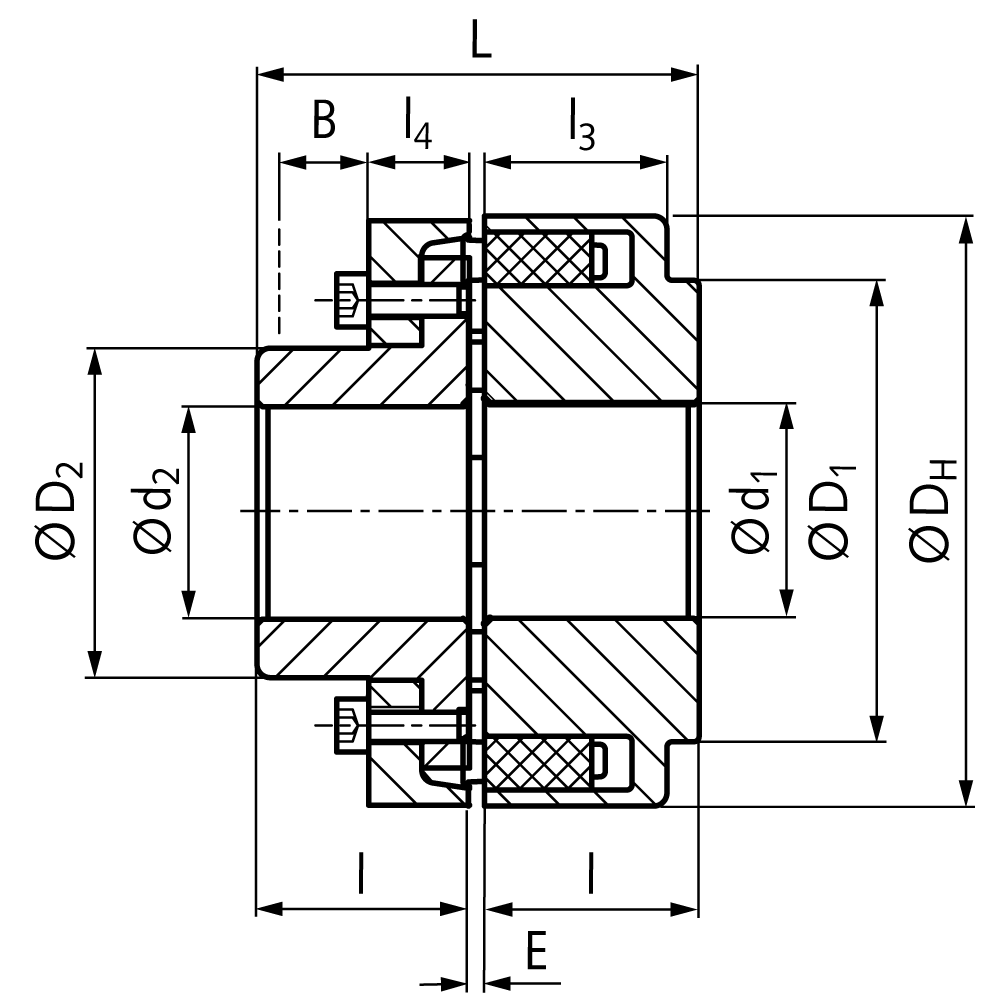

Flange width l3	36 mm
Flange width l4	23.5 mm
Hub diameter d1	100 mm
Hub diameter d2	75 mm
Hub length	50 mm
Max bore d1	55 mm
Max bore d2	45 mm
Max misalignment angle	0.2 °
Max misalignment axial	2 mm
Max misalignment radial	0.1 mm
Max torque	720 Nm
Min distance for dismantling	38 mm

Description

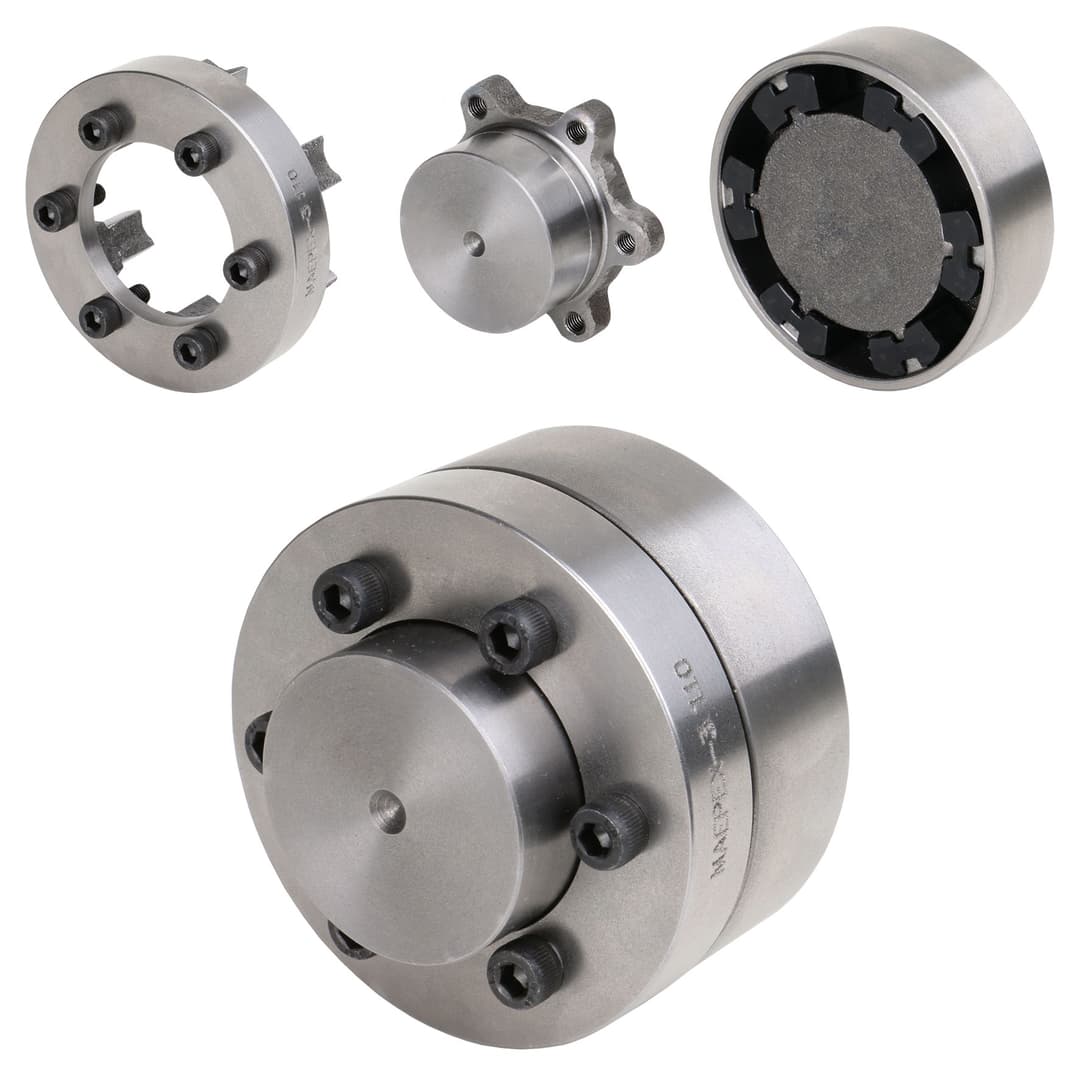

Material: Coupling hubs: Grey Cast Iron GG25 (GJL-250). Elastomeres: NBR, hardness 80ºA Shore, black. Torsionally flexible cam coupling, fail-safe, with damping effect. With bolt-on jaw ring. The removable jaw ring allows to replace the elastomers without moving the hubs on the shafts. In this YouTube video, we show you how to fit the 3-part MAEPEX coupling, how to replace the elastomers and how to determine the torsional backlash: Film (2,3 Minuten) The MÄDLER® version is improved: Machined claws result in longer lifetime. Couplings are non-bored or pre-bored, depending on the size. * The sizes 250 and 280 have different pilot bores on each side. Customized bores and feather-key grooves available at extra charge. Temperature range: -30ºC to +80ºC.
