MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

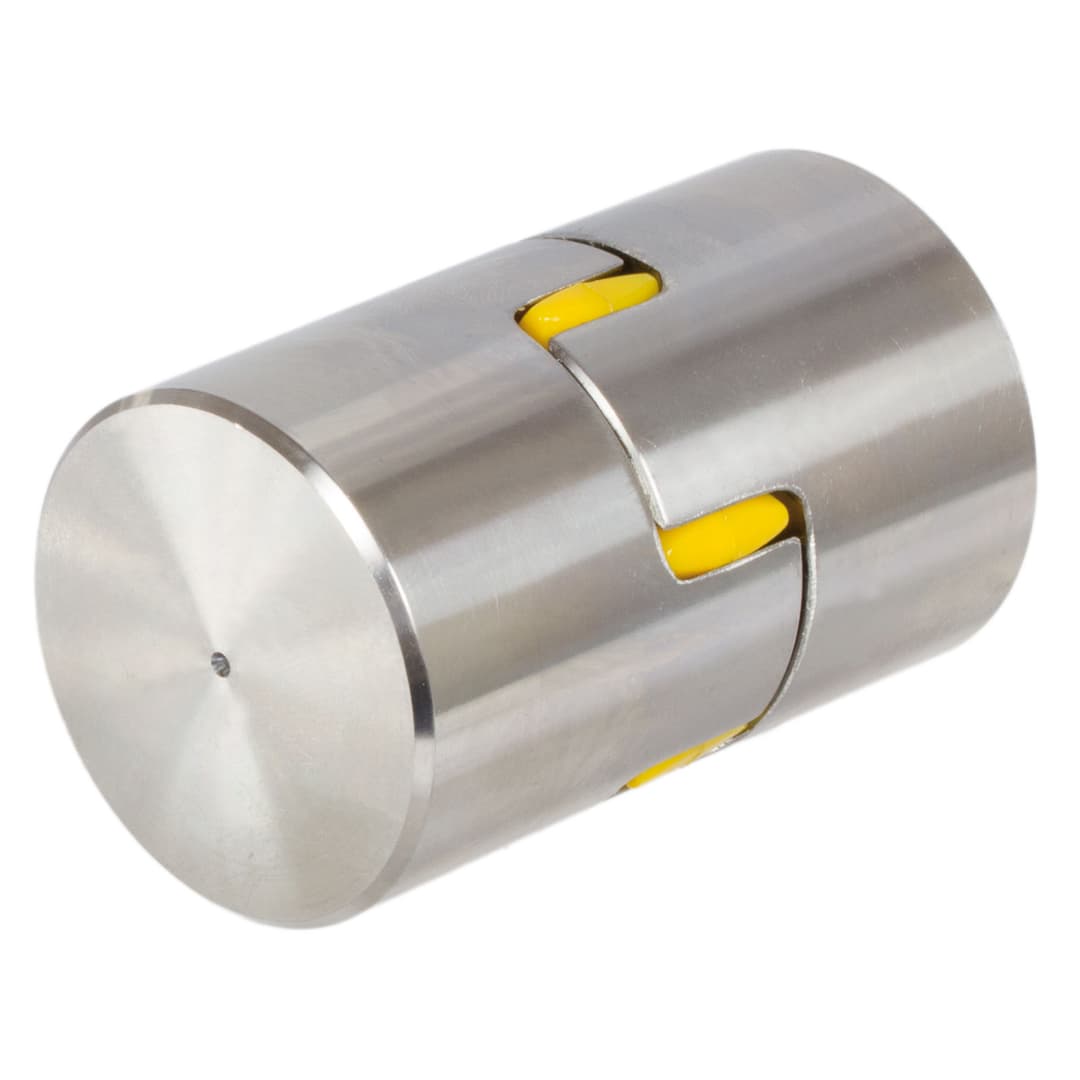

Elastic coupling RNI stainless steel 1.4305 size 48 max. torque 620Nm nominal torque 310Nm outer diameter 95mm length 140mm no bore
Manufacturer part no. 60599205
$507.18≈ 440.45 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €440.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €91.09 |
| Total delivered | €546.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 6 322,1 kg·cm |
| Weight | 1.95 kg |
Other characteristics

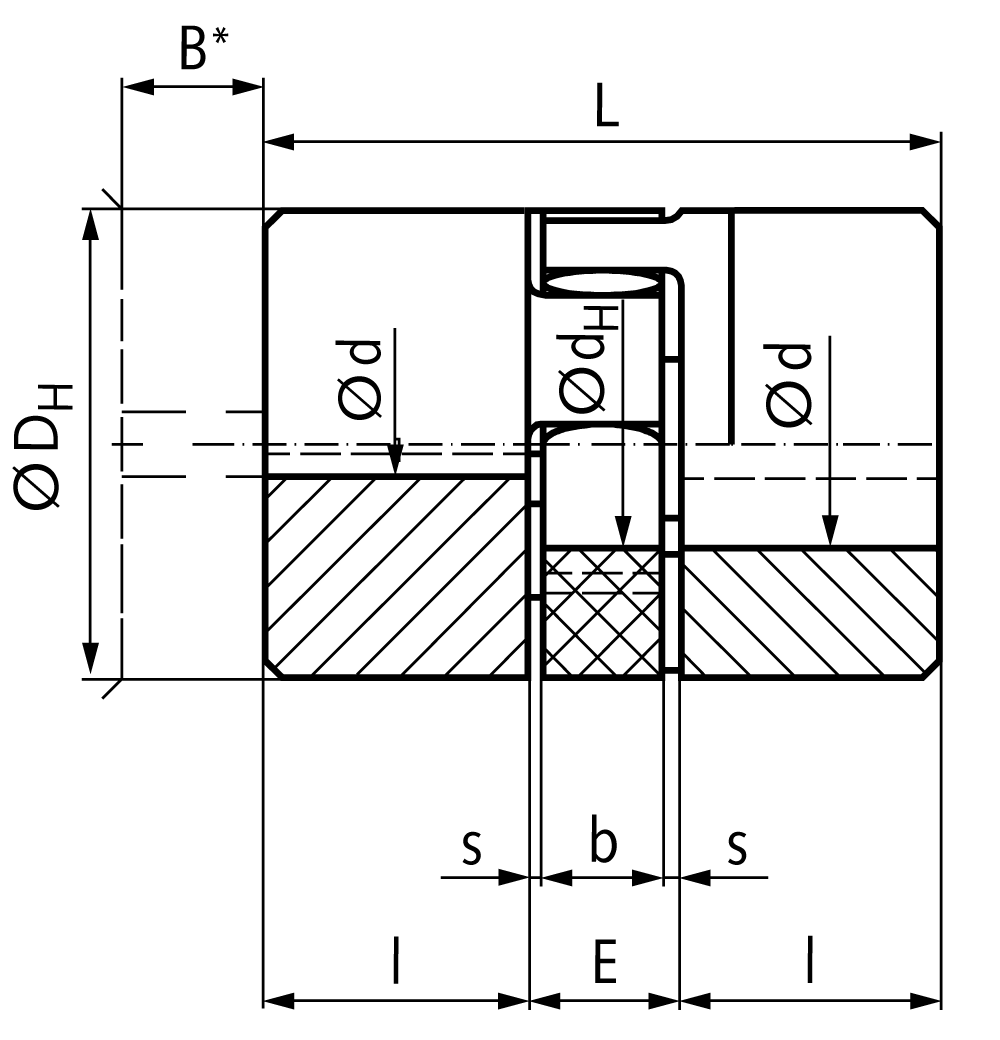

| Bore length | 56 mm |
| Distance between hub and spider | 3.5 mm |
| Distance between the hubs | 28 mm |
| Hub diameter | 105 mm |
| Hub length up to flange | 32 mm |
| Inner diameter spider | 51 mm |
| Max bore | 62 mm |
| Max misalignment angle | 1.1 ° |
| Max misalignment axial | 2.1 mm |
| Max misalignment radial | 0.36 mm |
| Max torque | 620 Nm |
| Min distance for dismantling | 22 mm |
Description
Material: Hubs of coupling: 1.4305, AISI 303 (1.4571, AISI 316 Ti on request). Spider: Polyurethane, Shore hardness 92°A. Spare spiders either 92°A or 98°A or 64°D Shore. The couplings are available without bore or pre-drilled ex stock. Custom bores or feather keyways available at extra charge. Temperature range: -20°C to +80°C. * B is the avarage dimension by which, e.g., a driven or driving machine has to be moved in order to demount one of the coupled units in vertical direction. Weights refer to max. customized bore without keyways.
