MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings
Sleeve part for toothed coupling BW size 14 bore 12mm with keyway material PA6.6
Manufacturer part no. 60611200
$10.18≈ 8.84 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €8.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.77 |
| Total delivered | €28.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 28 g |
Other characteristics
| Bore length | 23 mm |
| Bore of sleeve | 12 mm |
| Hub diameter of sleeve | 26 mm |
| Max misalignment angle | 1 ° |
| Max misalignment axial | 1 mm |
| Max misalignment radial | 0.1 mm |
| Max speed | 6 U/min |
| Max torque | 10 Nm |
| Nominal torque | 5 Nm |
| Outer diameter | 40 mm |
| Size | 14 |
| Temperature max. | 100 °C |
| Temperature min. | -25 °C |
| Component |
Description

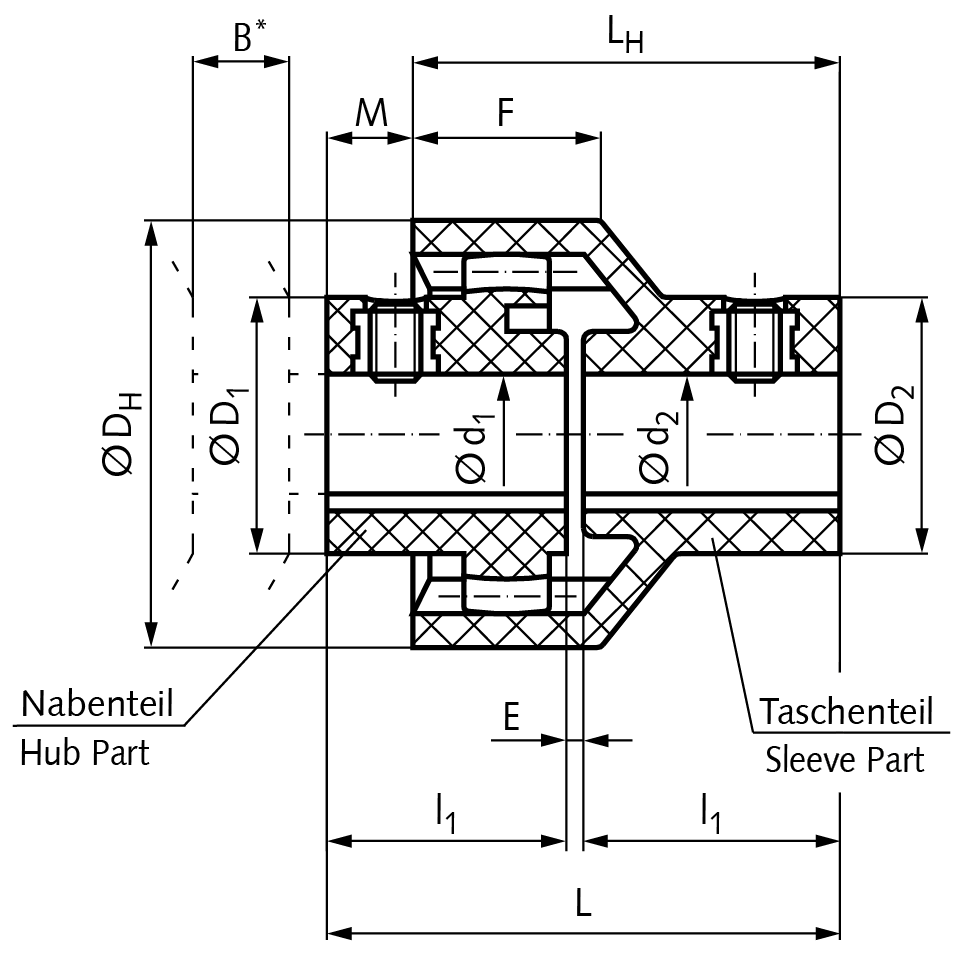

Material: Polyamide 6.6. Please realize: A complete coupling consists of one sleeve part and one hub part. Both components have to be ordered separately. So, at each outer size, various bore diameters can be chosen and combined. Sleeve part = Taschenteil. Hub part = Nabenteil. Bore tolerance + 0.05/-0.10 mm with feather keyways according to DIN 6885/1 ±0,08 mm. Grub Screws, Stainless steel V4A. Largest axial displacement = max. ±1 mm. Largest angular displacement = max. ±1° at each hub. No radial displacement! The permissible displacement values are dependent on power and speed. Temperature range: -25°C up to +100°C (up to +120°C at short time).
