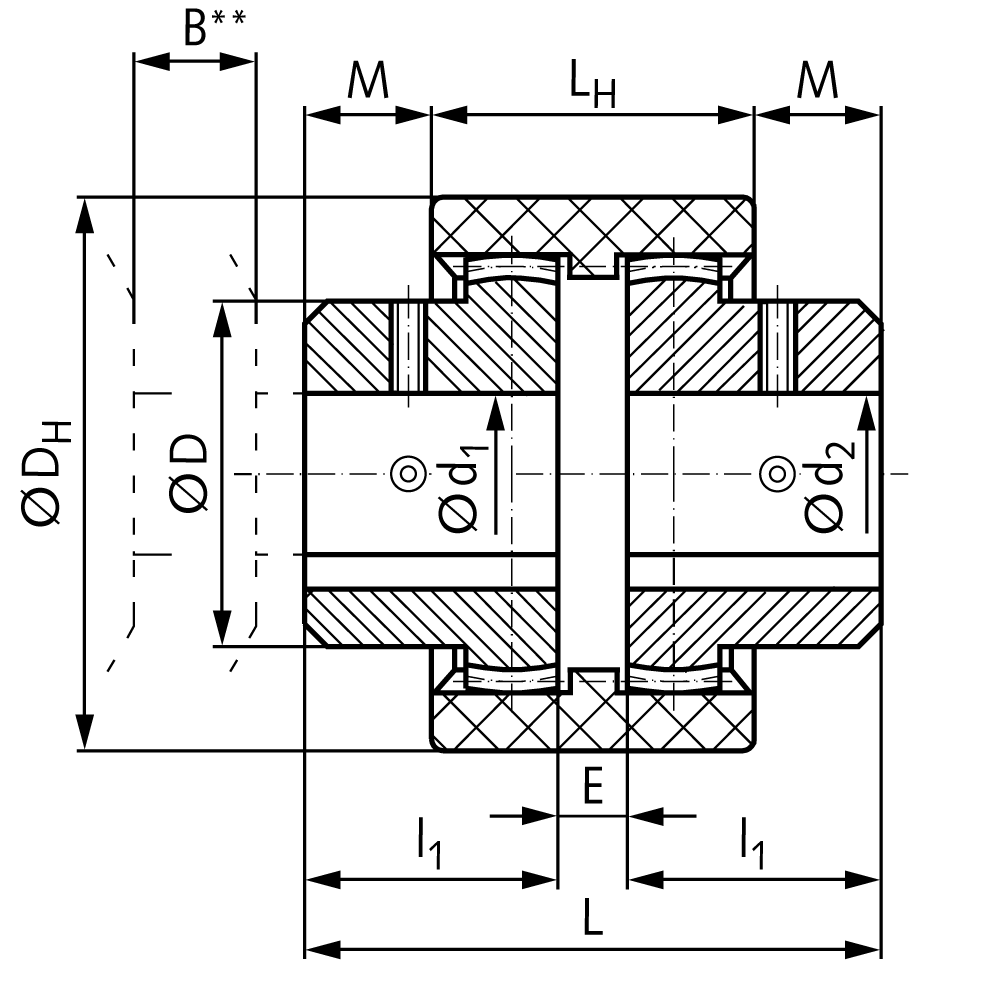

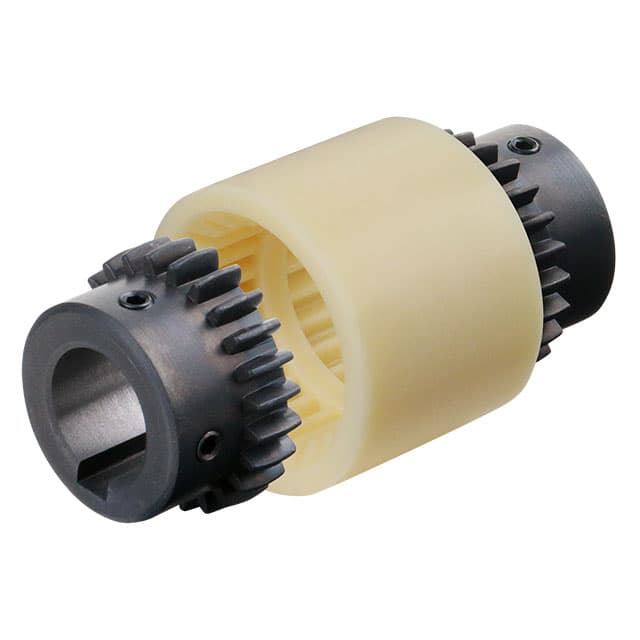

Sleeve part for toothed coupling BOS II material PA 6.6 Size 19 outside diameter 48mm length 37mm
Manufacturer part no. 60761900
$6.50≈ 5.64 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €5.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.13 |
| Total delivered | €24.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 35 g |
Other characteristics
| Distance between the hubs | 9 mm |
| Length of sleeve | 37 mm |
| Max misalignment angle | 2 ° |
| Max misalignment axial | 4 mm |
| Max misalignment radial | 0.4 mm |
| Max torque | 30 Nm |
| Min distance for dismantling | 14 mm |
| Nominal torque | 18 Nm |
| Outer diameter | 48 mm |
| Overhang of hubs | 7 mm |
| Size | 19 |
| Temperature max. | 100 °C |
| Temperature min. | -25 °C |
Description
Material: Sleeve part polyamide 6.6, hub parts sintered metal, black oxide finish. Hubs with finished bore, tolerance H7 with keyways DIN 6885/1and set screws (2 screws per hub). Keyway position: up to size 24: 1x on opposite of keyway, 1x 90° displaced. From size 28: 1x on keyway, 1x 90° displaced. Temperature range: -40ºC to +80ºC, short time up to +120°C. Please realize: A complete coupling consists of one sleeve part and two hub parts. All 3 components have to be ordered separately. So, at each outer size, various bore diameters can be chosen and combined. Sleeve part = Taschenteil. Hub part = Nabenteil.
