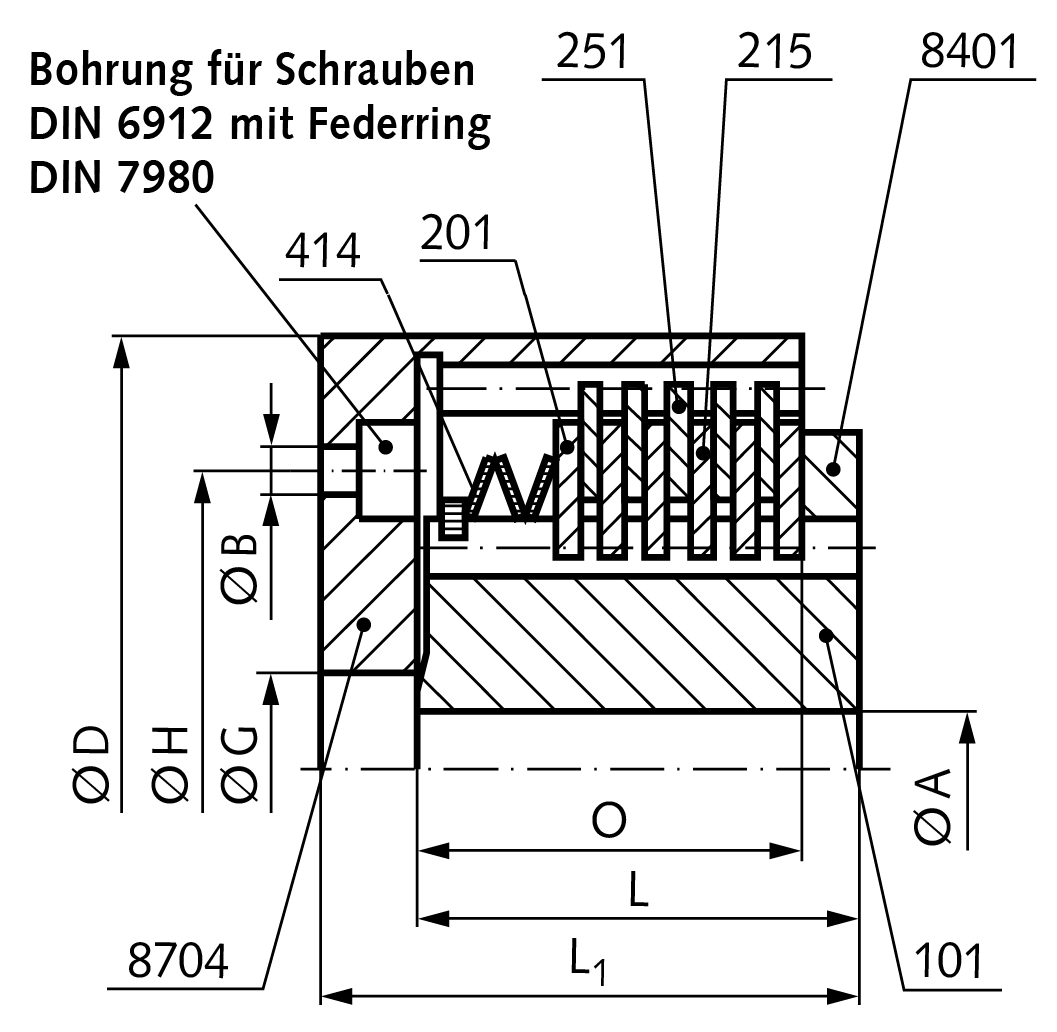

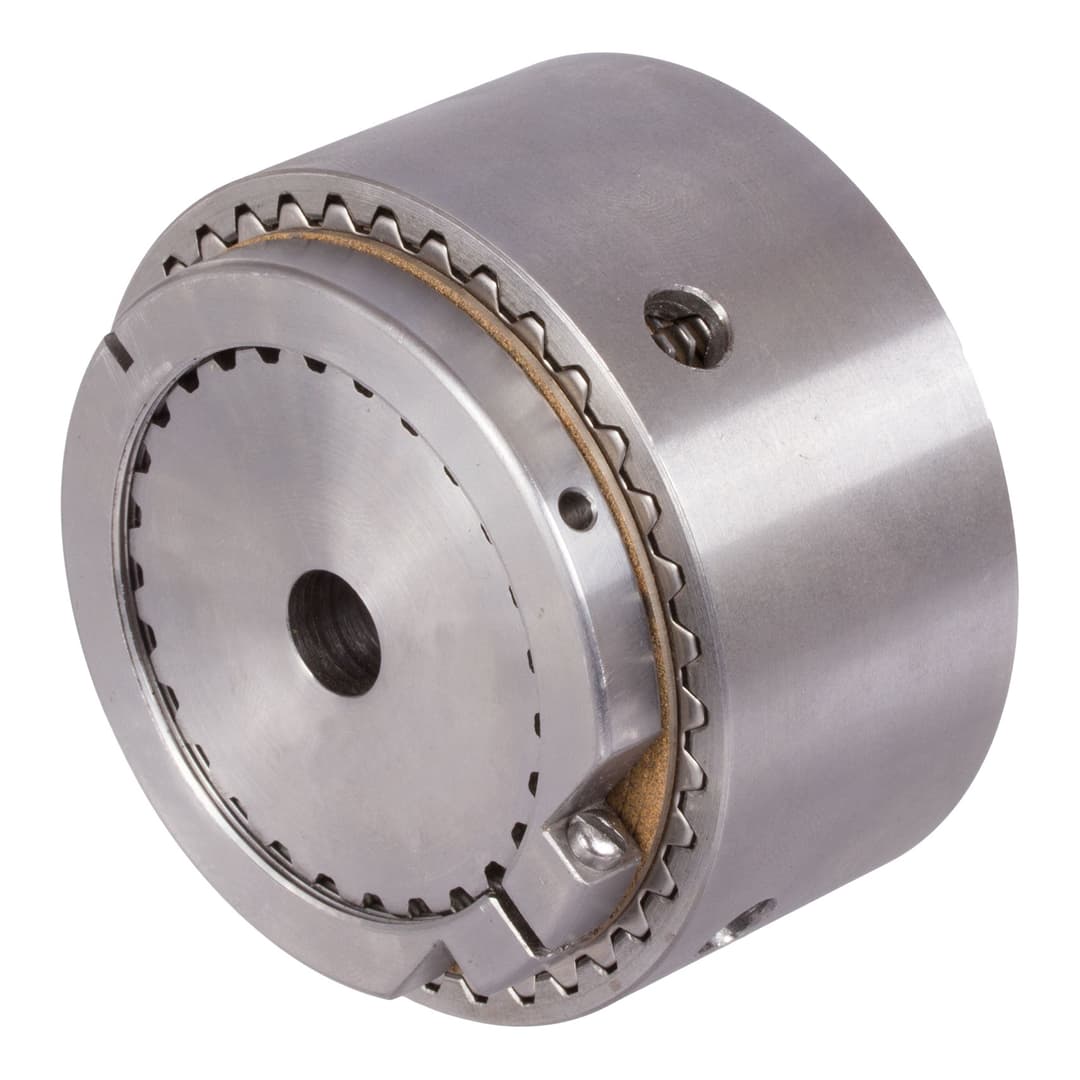

Name: Friction clutch PD torque adjustable up to 33 Nm outer diameter 67mm pilot bore 12mm max. bore 25mm
Brand: MÄDLER
Price: 819.27 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Torque	336.501 kg·cm
Weight	810 g

Other characteristics

Bore pilot hole	12 mm
Max bore diameter	25 mm
Max torque dry	33 Nm
Max torque wet	14 Nm
Outer diameter	67 mm
Total length	43 mm
Material	Steel
Max speed	3000 min-1
Product	Friction clutch
Spare plates compl set partno	611 012 00
Surface	Blank

Description

Material: Steel. Multi-plate friction clutches have proven to deliver an optimal performance when used with slow-starting machines. They are also used as safety couplings. The occuring torque peaks are levelled out by friction clutches. The disk pairing is steel/sintered bronze, with the inner plates of the pairings lined. The composition of the lining means up to 400°C can be withstood short term. At permanent load, however, only up to 250°C. Sintered clutch plates have the advantage of an almost constant friction coefficient even with fast growing circumferential speeds and higher temperatures. The assembly can be used for dry and wet operation. Advantages of these couplings are: Practical dimensions. Easy adjustment and re-adjustment. Inner and outer plates with special splines. Couplings are available pre-drilled -0,2/-0,3 ex stock. Customized bores and feather-key grooves available at surcharge.
