MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

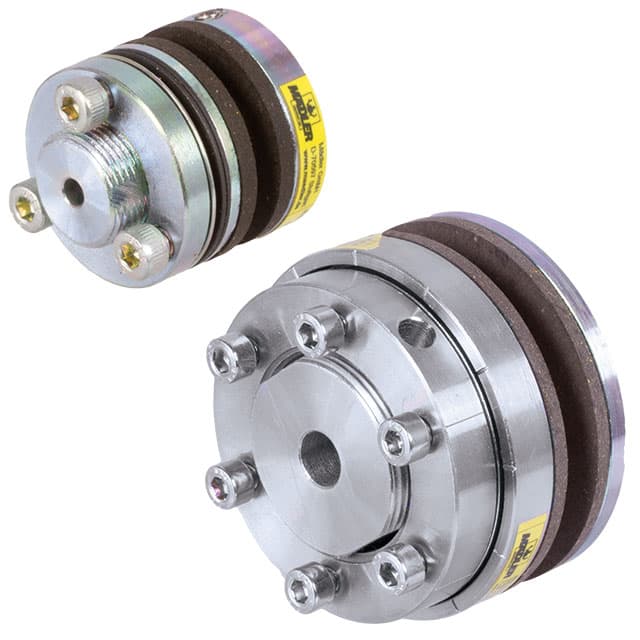

Sliding hub FA size 01 torque adjustable 5-35 Nm outer diameter 58 mm max. bore: 22mm
Manufacturer part no. 61210100
$162.72≈ 141.31 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €141.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €31.26 |
| Total delivered | €187.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 356.895 kg·cm |
| Weight | 600 g |
Other characteristics
| Bore pilot hole | 10 mm |
| Distance to wheel | 16 mm |
| Hub diameter | 40 mm |
| Max bore | 22 mm |
| Max bushing length | 13 mm |
| Max width of wheel | 8 mm |
| Min bushing length | 8 mm |
| Min width of wheel | 3 mm |
| Outer diameter | 58 mm |
| Required bore of wheel | 40 mm |
| Size | 1 |
| Thickness of friction disc | 3 mm |
| Total length |
Description

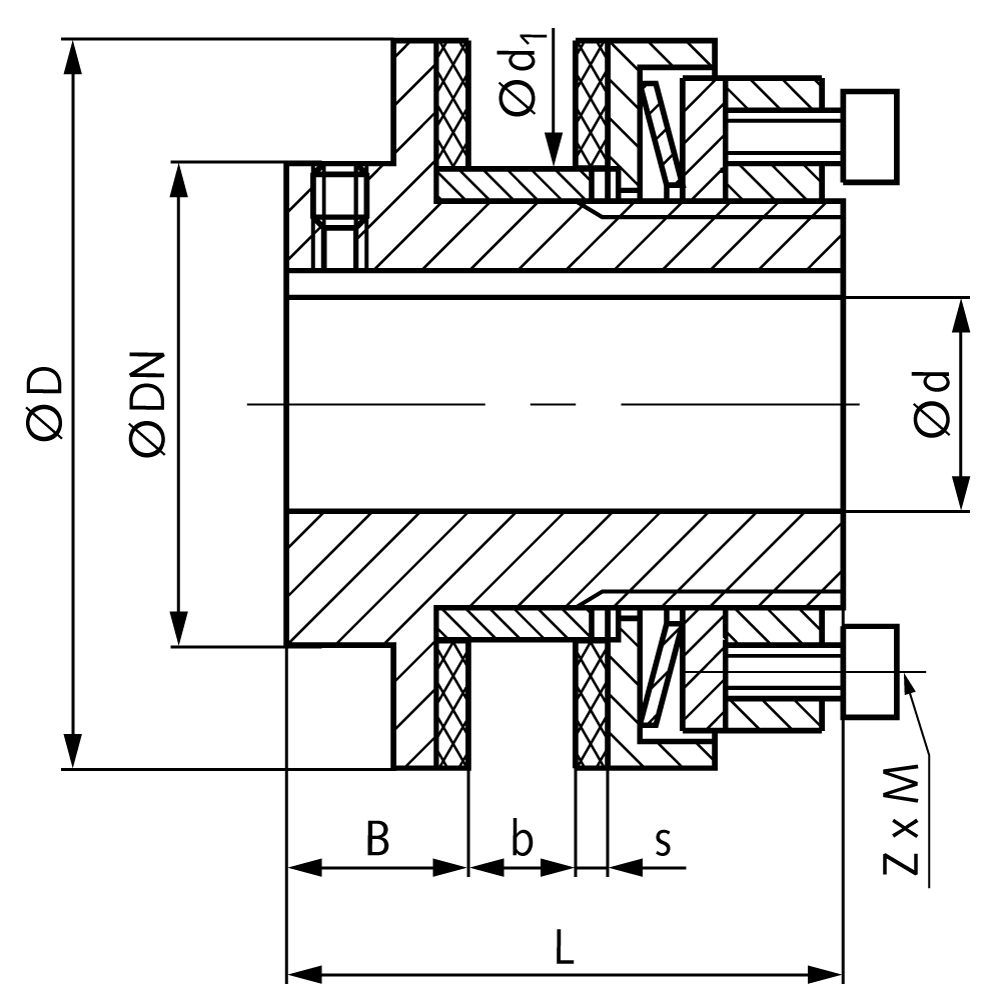

Material: Steel, zinc-plated and chromated. – High-quality version. – The slipping torque can be adjusted with common assembly tools for screws, also after mounting. – By mounting additional springs, the torque range can be increased. (additional springs have to be ordered separately). – The hubs are delivered with pilt bore and max. bush length. Customized bores, keyways and bush lengths at extra charge. Required bush length: The bush length required depends on the width of the component to be joined. Prod. No. 612 100 00: Bush length 4.2 mm for a component width of 5.3 to 6.0 mm. From Prod. No. 612 100 10: Bush length in mm = 1.5 x s + b + 0.5
