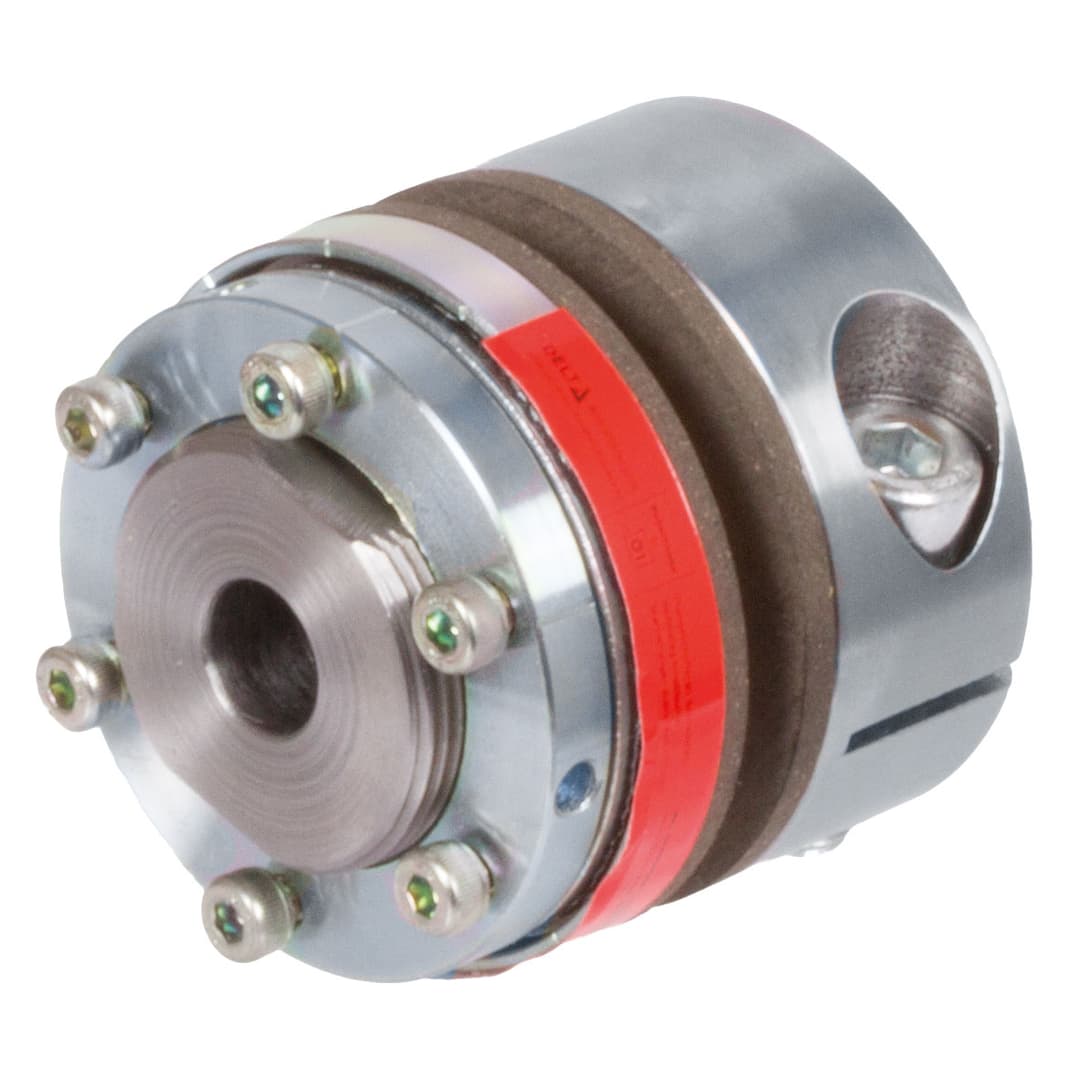

Sliding hub FA-K size 0 torque adjustable 2-10Nm outer diameter 45mm max. bore: 22mm with clamp hub
Manufacturer part no. 61211010
$198.48≈ 172.37 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €172.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €37.47 |
| Total delivered | €224.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

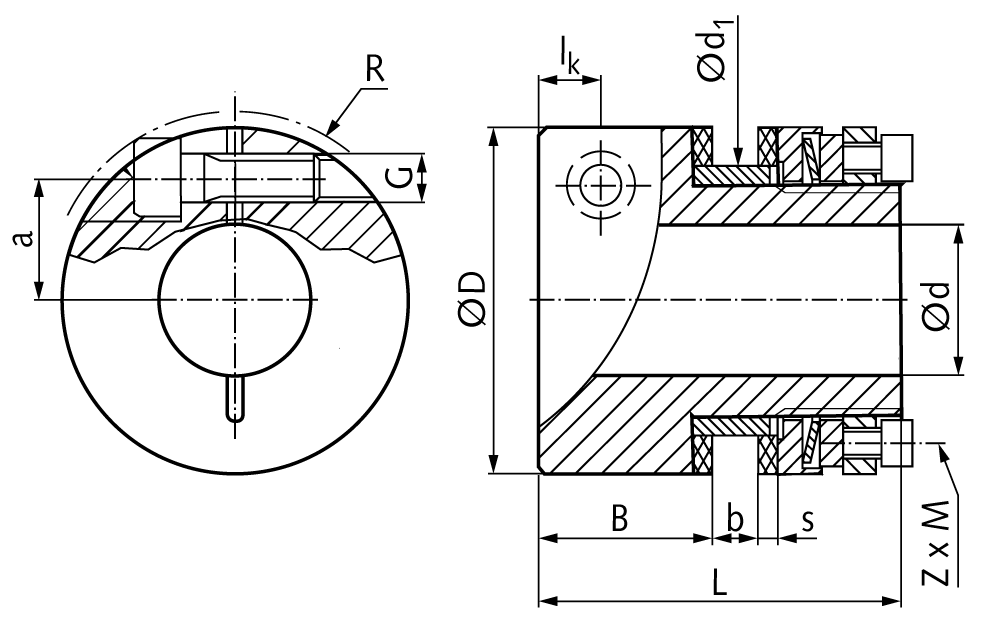

Specifications (automatically extracted)
Mechanical
| Torque | 101.97 kg·cm |
| Weight | 300 g |
Other characteristics
| Bore pilot hole | 10 mm |
| Distance to wheel | 21.5 mm |
| Max bore | 22 mm |
| Max bushing length | 10 mm |
| Max width of wheel | 6 mm |
| Min bushing length | 6 mm |
| Min width of wheel | 2 mm |
| Outer diameter | 45 mm |
| Required bore of wheel | 35 mm |
| Size | 0 |
| Thickness of friction disc | 2.5 mm |
| Total length | 46 mm |
| Material |
Description
Material: Steel, zinc-plated and chromated. • Clamp hub version. • The slipping torque can be adjusted with common assembly tools for screws, also after mounting. • By mounting an additional springs the torque range can be increased (additional spring has to be ordered separately). • The hubs are delivered with pilt bore and max. bush length. Customized bores, keyways and bush lengths at extra charge.
