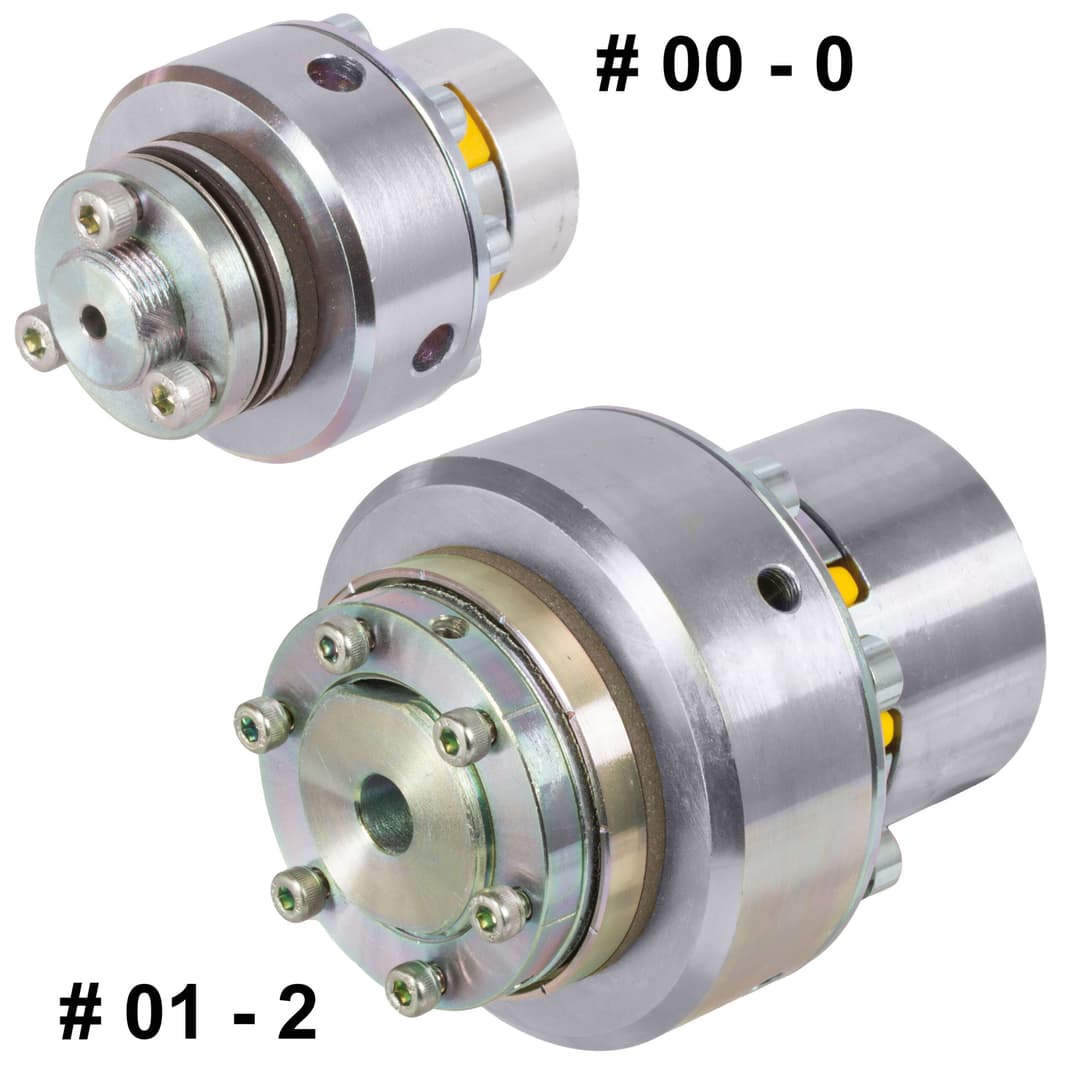

Name: Sliding hub with elastic coupling type RNR, size 00
Brand: MÄDLER
Price: 205.81 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

312 g

Other characteristics

Additional disc spring partno	61 210 002
Max bore side 1	16 mm
Max bore side 2	10 mm
Nominal torque coupling	7.5 Nm
Optional spider 92 shore yellow partno	60 509 214
Optional spider 98 shore red partno	60 509 814
Outer diameter da mm	44 mm
Pilot hole side 1 2	4.8 mm
Size	0
Total length l mm	59 mm
Material	Steel / Plastic
Surface	Zinc-plated, chromated (yellow)
Torque field sliding hub

Description

Material: Material: Sliding hub: steel, zinc-plated and chromated yellow, asbestos-free and rustproof friction pads. Elastic coupling: coupling hubs cast iron, insert (toothed ring) Polyurethane. Hardness 92° Shore (optional 98° Shore). The slipping torque can be adjusted with common assembly tools for screws. The elastic coupling can be mounted in axial direction. Torque can be altered after mounting. By mounting a second disc spring, the torque range can be doubled (second spring has to be ordered separately). Customized bores and feather-key grooves available at extra charge. 1) above Ø 19 mm with flat keyway DIN 6885/3. * Essential for dimensioning. ** Nominal torque of the elastic coupling. *** Maximum torque of the elastic coupling. Material: Material: Sliding hub: steel, zinc-plated and chromated yellow, asbestos-free and rustproof friction pads. Elastic coupling: coupling hubs cast iron, insert (toothed ring) Polyurethane. Hardness 92° Shore (optional 98° Shore). The slipping torque can be adjusted with common assembly tools for screws. The elastic coupling can be mounted in axial direction. Torque can be altered after mounting. By mounting a second disc spring, the torque range can be doubled (second spring has to be ordered separately). Customized bores and feather-key grooves and setscrew-threads available at extra charge. 1) above Ø 19 mm with flat keyway DIN 6885/3. * Essential for dimensioning. ** Nominal torque of the elastic coupling. *** Maximum torque of the elastic coupling.
