MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

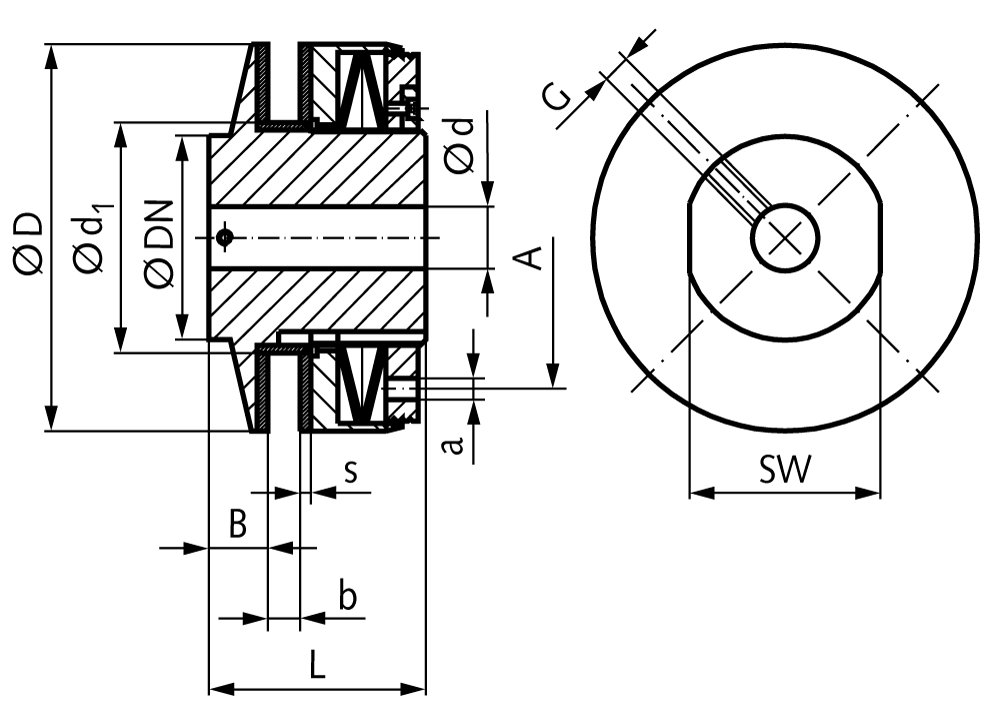

Sliding hub ROBA torque adjustable 50-250 Nm outer diameter 115mm max. bore: 45mm
Manufacturer part no. 61236000
$469.33≈ 407.58 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €407.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €84.52 |
| Total delivered | €507.10 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 2 549,3 kg·cm |
| Weight | 3.1 kg |
Other characteristics
| Bore of sprocket h8 | 72 mm |
| Bore pilot hole | 18 mm |
| Information for clamping tool hole diameter | 6 mm |
| Information for clamping tool pitch circle diame | 84 mm |
| Max bore diameter | 45 mm |
| Max torque | 250 Nm |
| Min torque | 50 Nm |
| Outer diameter | 115 mm |
| Size | 3 |
| Thickness of friction lining | 4 mm |
| Total length | 68 mm |
| Adjustment screw | M mm |
Description
Material: Steel. ROBA®-sliding hubs, high-quality machine components, are used as torque limiters for chain-, gear- and belt-drives. They are high-quality machine components. They are machined all-round and zinc-phosphated, i.e. rust-proof. They are of fully-closed design. The hubs are delivered with pilt bore and max. bush length. Customized bores, and feather-key grooves and setscrew-threads available at surcharge. * See catalogue page.
