Limit switch for safety clutch 220-250 V AC

MÄDLERMÄDLER· Sensors

Limit switch for safety clutch 220-250 V AC

Name: Limit switch for safety clutch 220-250 V AC
Brand: MÄDLER
Price: 363.85 USD
Availability: BackOrder

Manufacturer part no. 61260500

$363.85≈ 314.91 €

Price summary

Listed by MÄDLER at €314.91. Delivered to France, including shipping, VAT and any customs duty, it comes to about €395.89. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€314.91
Shipping	€15.00
VAT (20%)	€65.98
Total delivered	€395.89

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Electrical

Current	10 A
Voltage	250 V

Mechanical

Weight

324 g

Other characteristics

Voltage ac

220-250 V

Description

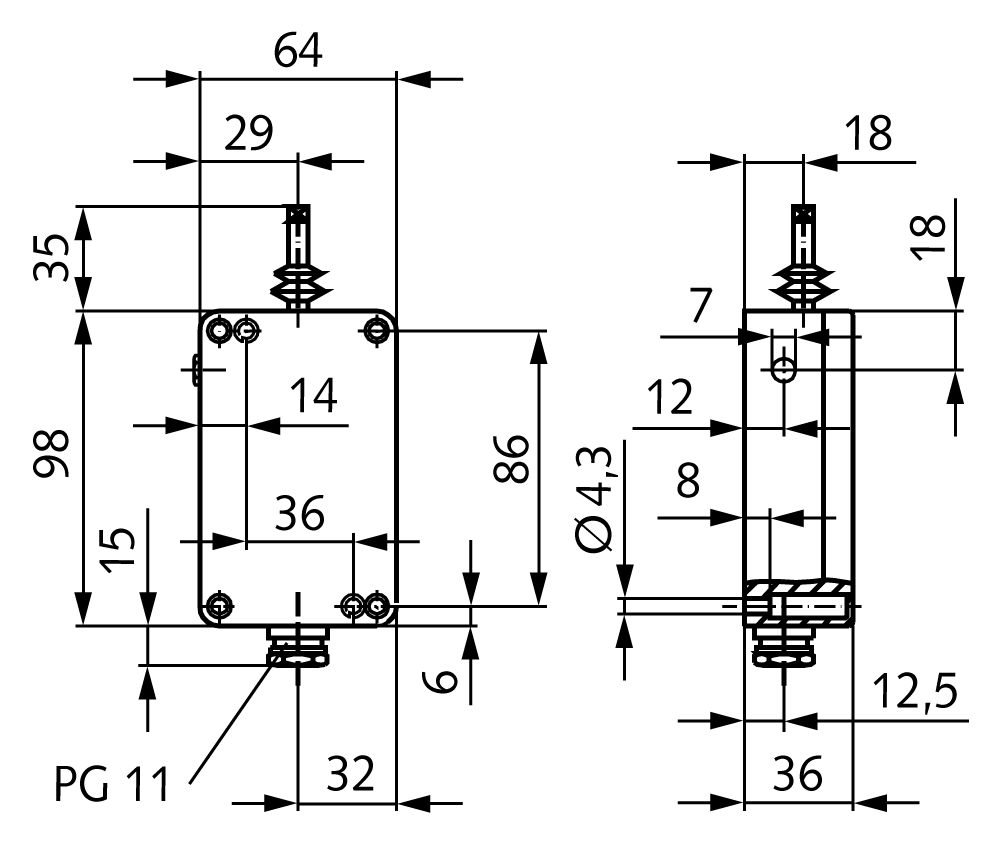

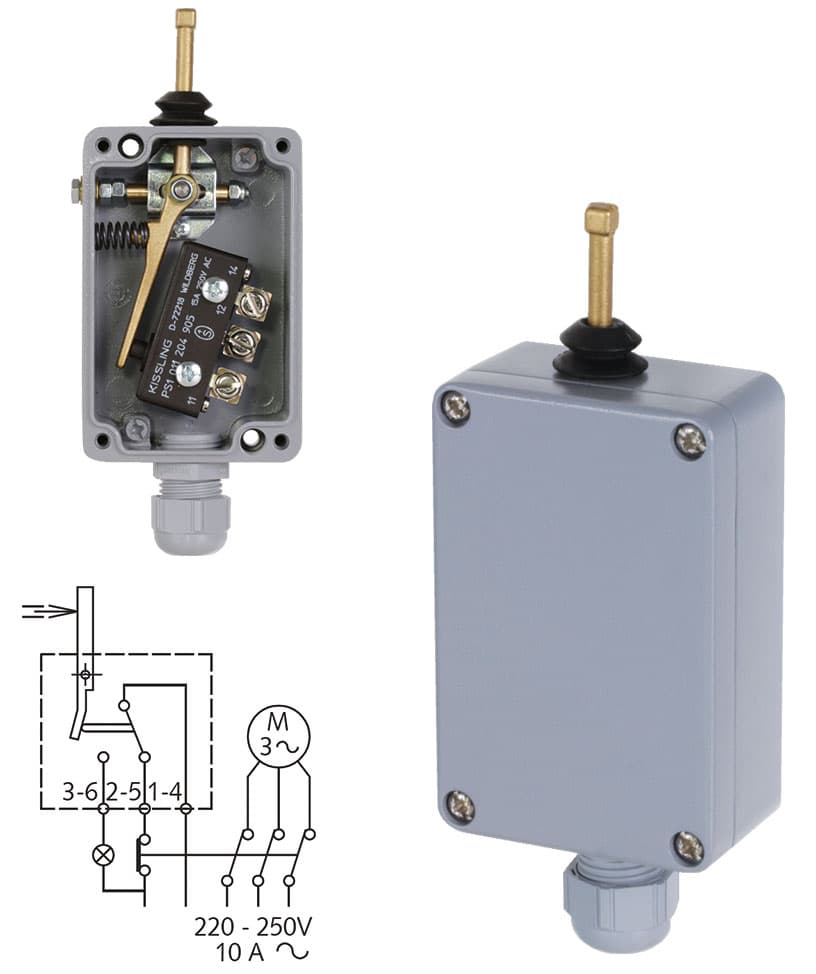

Material: Housing made from aluminium die-cast, painted grey, with rubber seal. Switch made from brass. Bellow made from neoprene (black). Housing screws zinc-plated. Cable connection made from plastic (grey). Electrical connection: 220-250V AC, 10 A. Application: Robust limit switch for safety clutches SI, safety clutches CM or similar applications. If the torque set on the clutch is exceeded, the clutch slips. At the same time the shift ring moves. The shift ring then triggers the switch and turns off the engine. This protects the entire drive system and prevents possible damage. Mounting: On the back wall are two bores Ø 4.3 mm. These fit two screws M4 with internal hexagon, slot or cross recess (head-Ø up to 7 mm). The wall thickness around the mounting holes is 8 mm.
