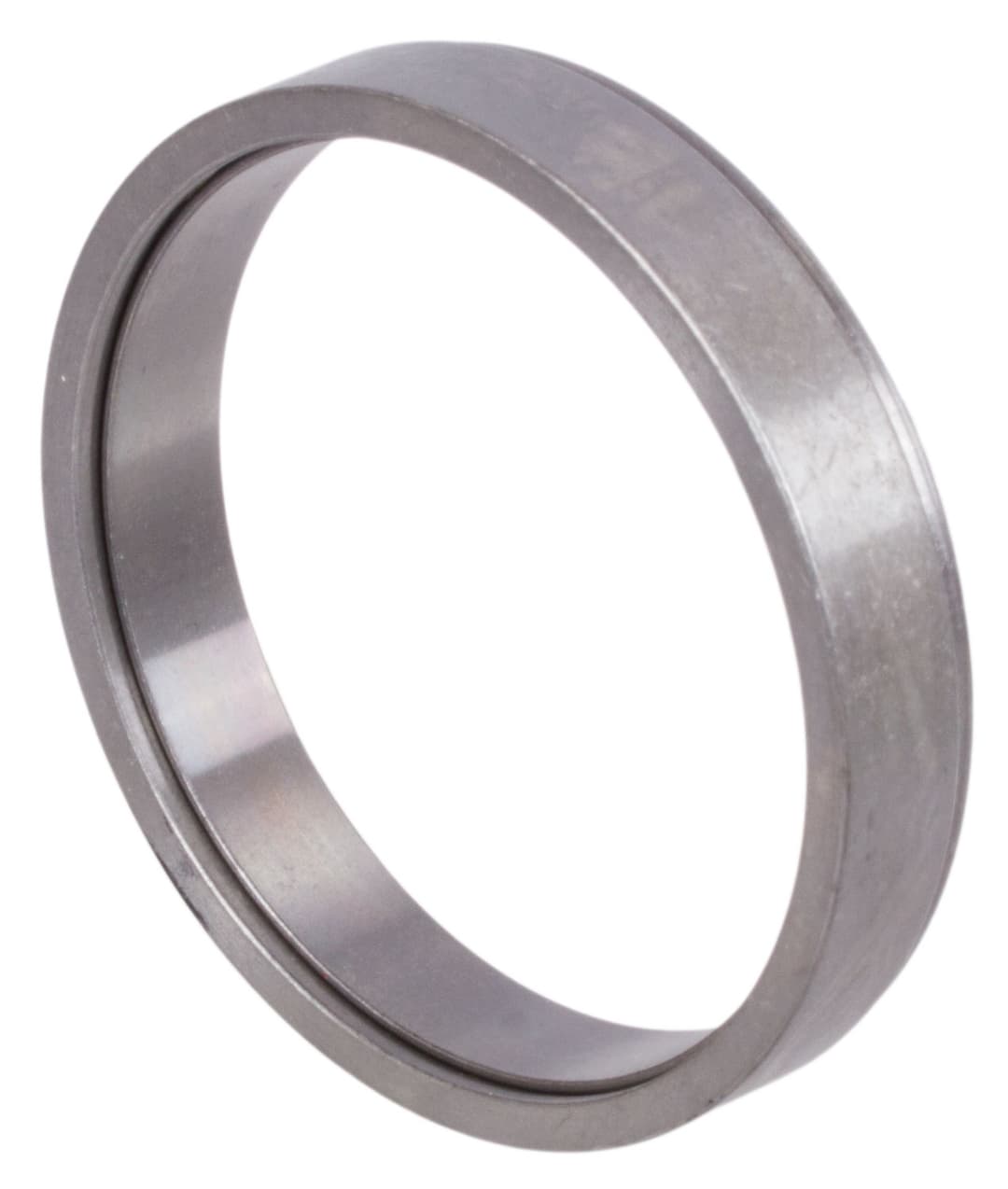

Locking assembly COM-R bore 22mm size 22x26x6.3mm (2 loose rings)
Manufacturer part no. 61500022
$8.48≈ 7.36 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €7.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.47 |
| Total delivered | €26.83 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7 g |
Other characteristics
| Admissible axial force | 5.88 kN |
| Inner diameter | 22 mm |
| Length | 5.3 mm |
| Outer diameter | 26 mm |
| Transmissible torque | 65 Nm |
| Design shape | Loose rings |
| Hub surface pressure | 113 N/mm2 |
| Material | Steel |
| Self centering | No |
| Shaft surface pressure | 132 N/mm2 |
| Surface | Blank |
| Type | COM-R |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For lower to medium torques. Not self-centering. Loose clamping rings. For use with customer¿s pressure sleeves and customer¿s screws. Up to 4 clamping sets can be used in line. Versatile usage, for customized solutions. Fit: Shaft h8, Hub H8. Surface roughness hub / shaft Rz max. 12.5 µm. More sizes up to d=500mm for 270,000Nm are available. Price and delivery time on request.
