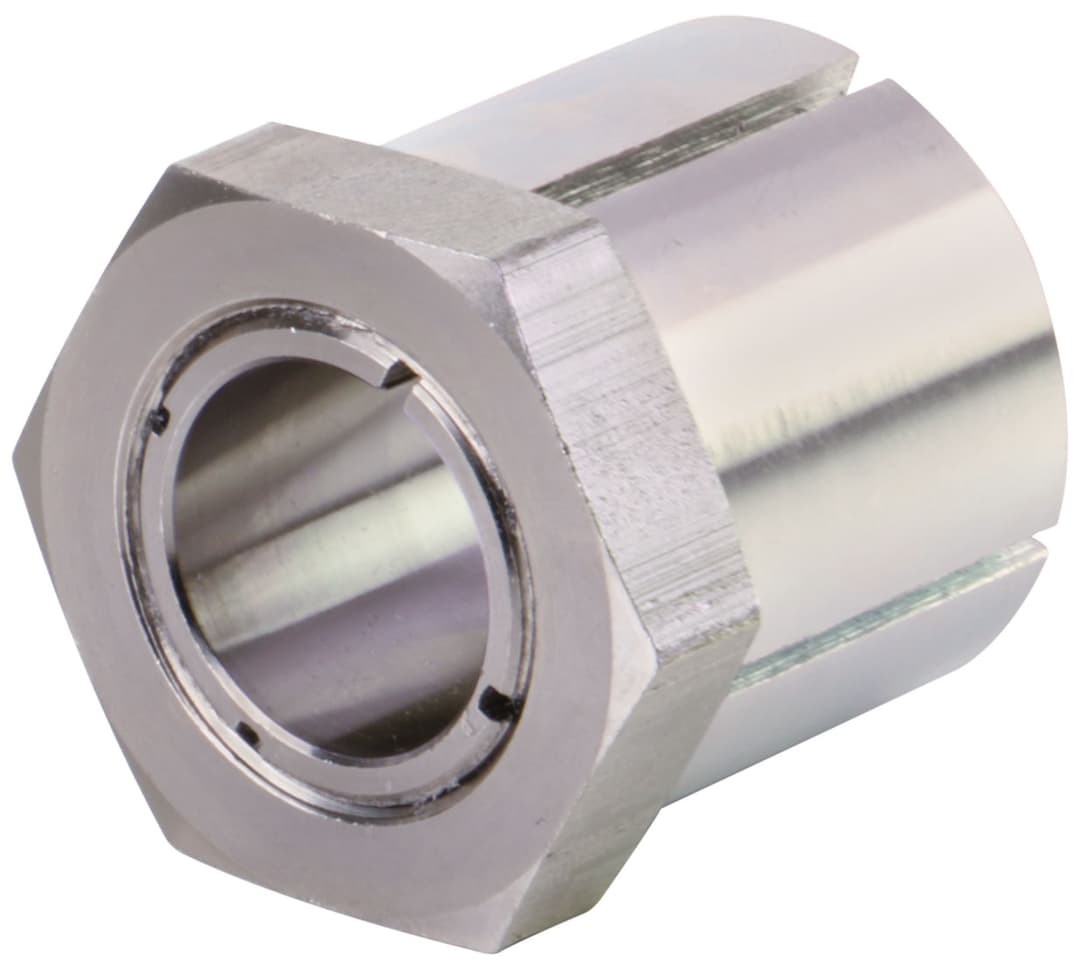

locking assembly TOK type A bore 7mm steel
Manufacturer part no. 61550307
$22.74≈ 20.26 €
Price summary
Listed by MÄDLER at €20.26. Delivered to France, including shipping, VAT and any customs duty, it comes to about €42.31. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €20.26 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.05 |
| Total delivered | €42.31 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 26 g |
Other characteristics
| Admissible axial force | 5.8 kN |
| Inner diameter | 7 mm |
| Length | 22 mm |
| Outer diameter | 16 mm |
| Tightening torque fastening screw | 17 Nm |
| Transmissible torque | 20 Nm |
| Wrench size | 16 mm |
| Design shape | Cylindrical with central nut |
| Hub surface pressure | 91 N/mm2 |
| Material | Steel |
| Self centering | Yes |
| Shaft surface pressure | 205 N/mm2 |
| Surface | Blank |
Description
Material: Steel. For fixing a hub (e.g. drive wheel, rotor or similar) on a shaft. For medium torques. Self-centering. Axial offset during mounting (can be compensated by correct positioning).
