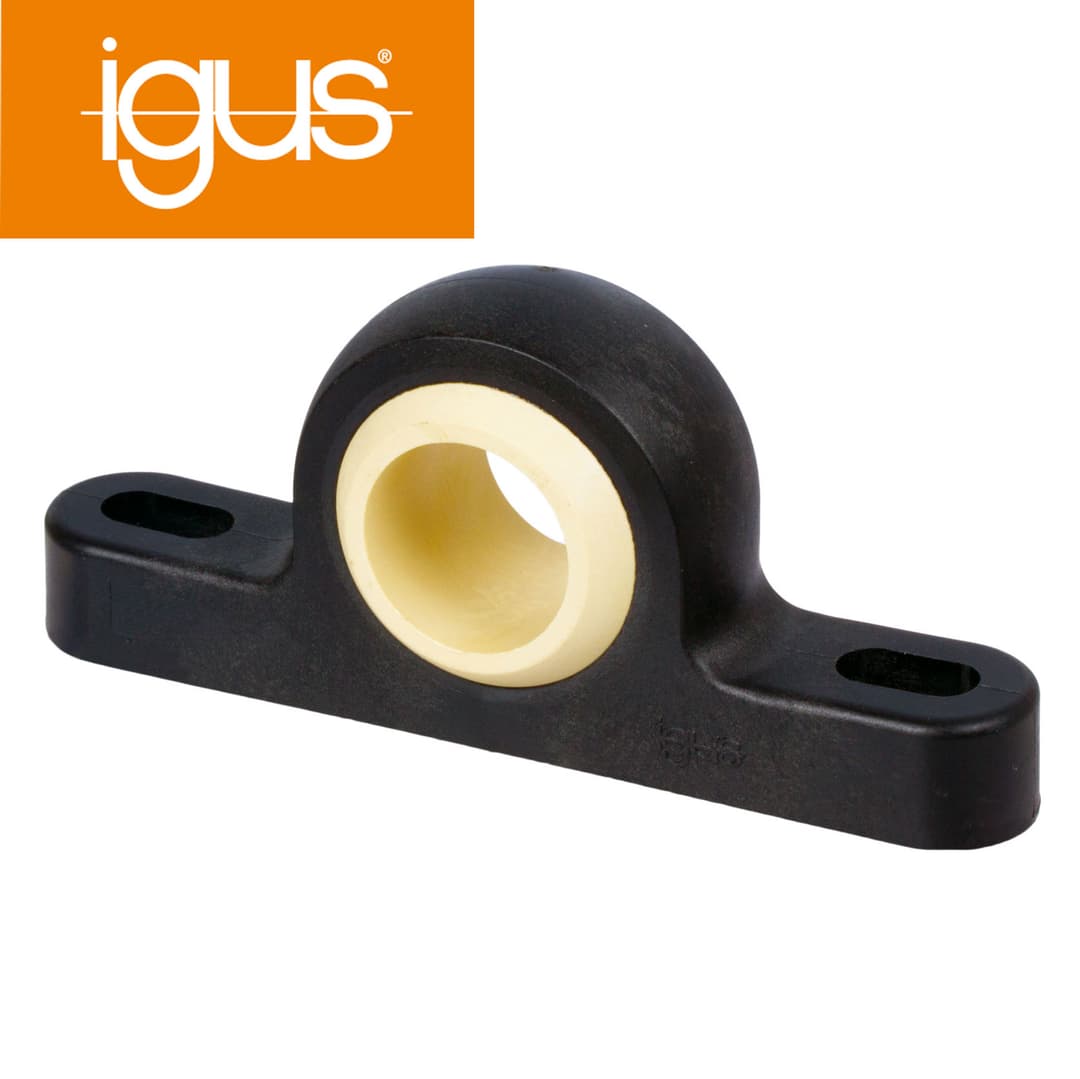

Pillow block bearing igus igubal ESTM-08 bore 8mm
Manufacturer part no. 62055108
$6.54≈ 5.68 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €5.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.14 |
| Total delivered | €24.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5 g |
Other characteristics
| Bore diameter | 8 mm |
| Load rating axial static | 300 N |
| Load rating radial pressure static | 2 150 N |
| Load rating radial traction static | 1 250 N |
| Tilt angel | 22 ° |
| Material | Plastic |
| Surface | Blank |
Description
Material spherical ball: iglidur® W300, yellowish. Material housing: igumid® G, black. Maintenance-free, silent running and anti-vibrating. High strength at very low weight. Resistant against corrosion and many chemicals. Electrical and thermal isolating. The shaft must rotate inside the bore of the spherical ball. With a metal shaft, a sliding speed up to 30 m/min. may be possible. The spherical ball may only compensate shaft misalignement. Temperature range: -30º to +80ºC.
