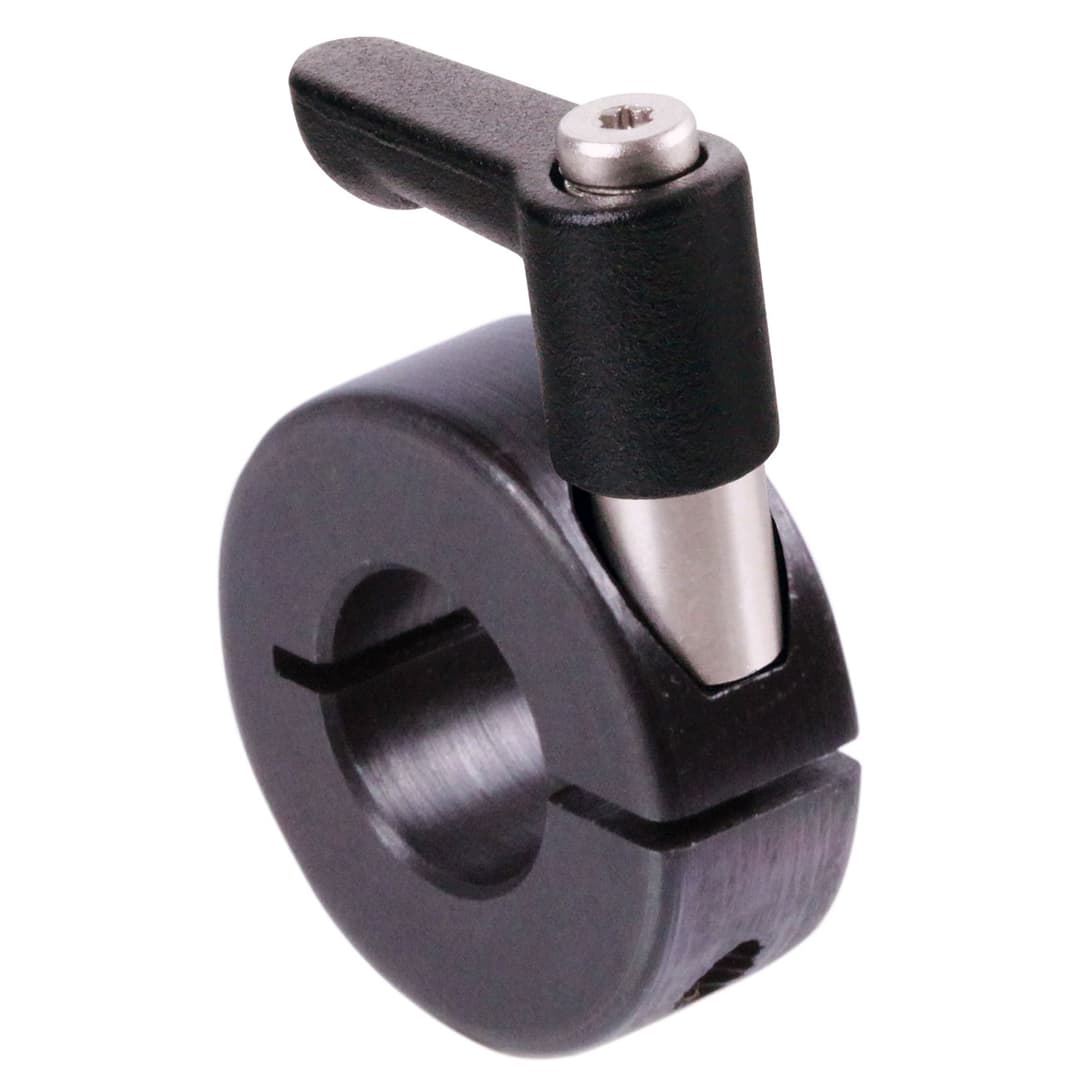

Clamp collar single-split steel C45 black oxide finished bore 6mm with adjustable clamp lever M3 x 10 length 22mm
Manufacturer part no. 62310600K
$15.52≈ 13.48 €
Price summary
Listed by MÄDLER at €13.48. Delivered to France, including shipping, VAT and any customs duty, it comes to about €34.18. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €13.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.70 |
| Total delivered | €34.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 26 g |

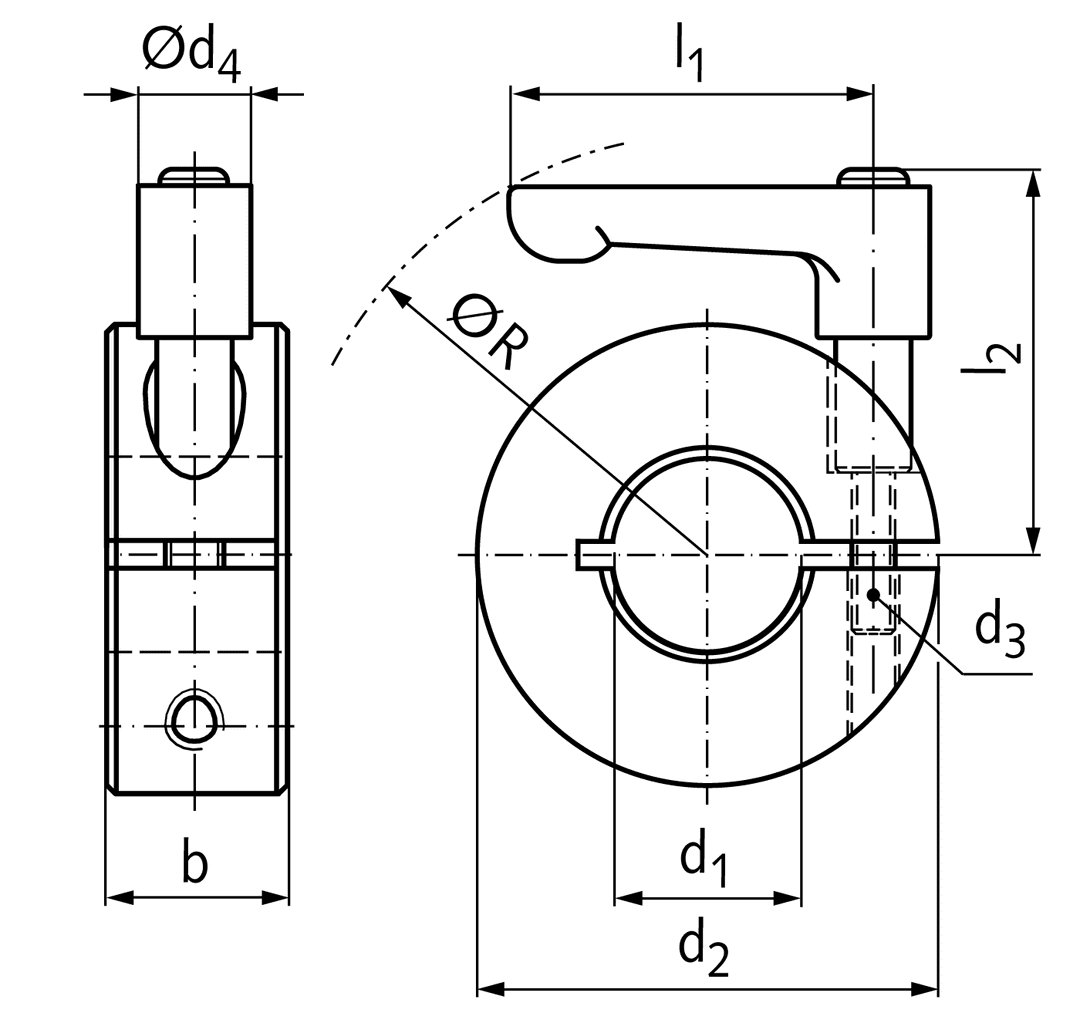

Other characteristics
| B | 9 mm |
| D1 | 6 mm |
| D2 | 16 mm |
| D4 | 10.5 mm |
| L1 | 22 mm |
| L2 | 30.9 mm |
| Rmax | 70.3 mm |
| D3 | M3 x 10 |
Description
Material: Steel C45, black oxide finish. Handle: Zinc die-cast, plastic coated, black. Screw: Stainless steel 1.4305 (AISI 303). Features: does not damage the shaft, stronger clamping force than with set collars, even distribution of clamping forces, precise bores. The disengageable, adjustable clamping lever enables an easy readjustment without tools. Tolerance b: +0.08 mm / -0.25 mm. Temperature resistant up to +90ºC.
