MÄDLERMÄDLER· Bearings, Bushes, Seals

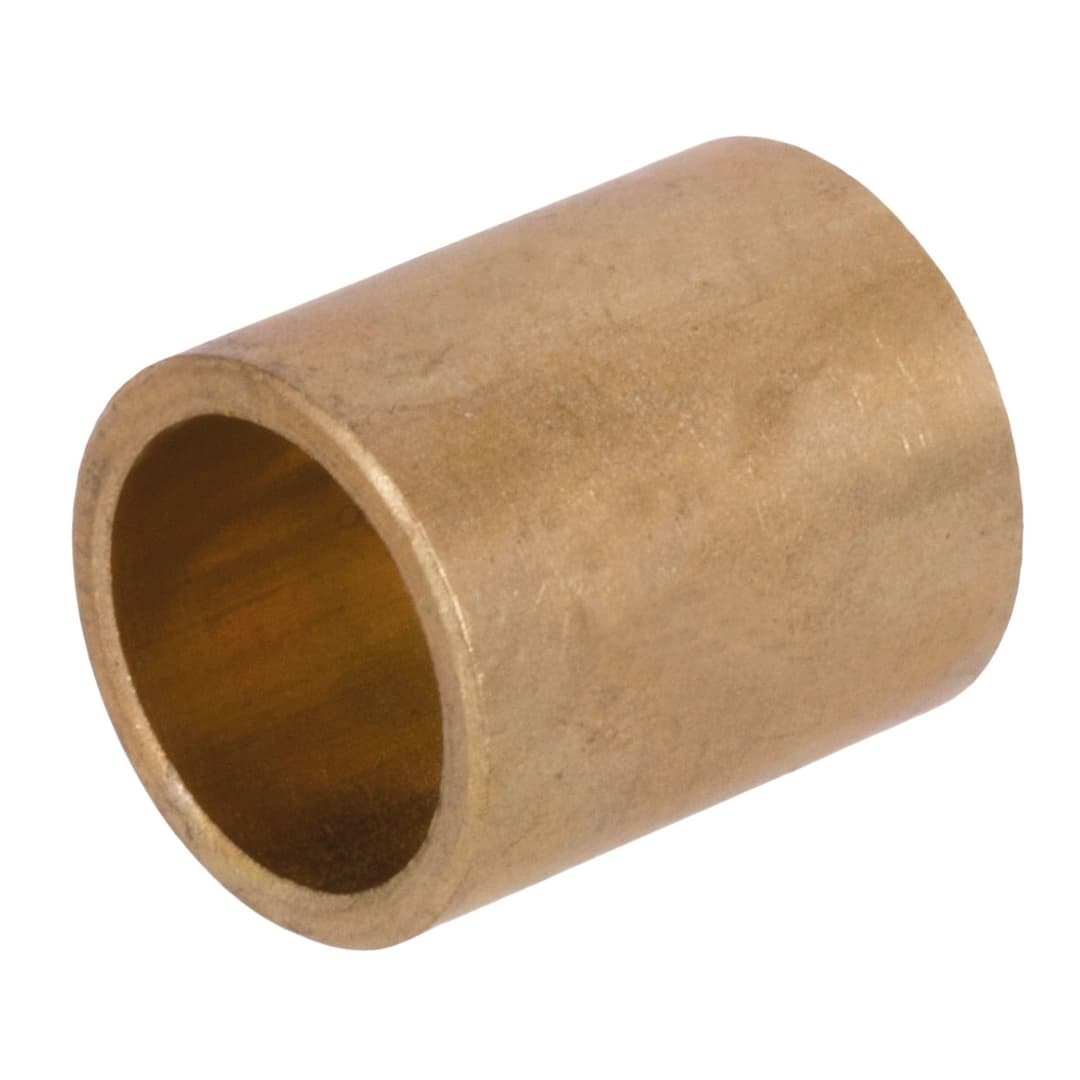

Bush similar to DIN 1850-3 J sintered bronze borehole 3mm outer diameter 6mm length 4mm
Manufacturer part no. 62330200
$1.89≈ 1.64 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €1.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.33 |
| Total delivered | €19.97 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 0.56 g |
Other characteristics
| Inner diameter | 3 mm |
| Length | 4 mm |
| Outer diameter | 6 mm |
| Material | Sintered bronze |
| Surface | Oil soaked |
Description

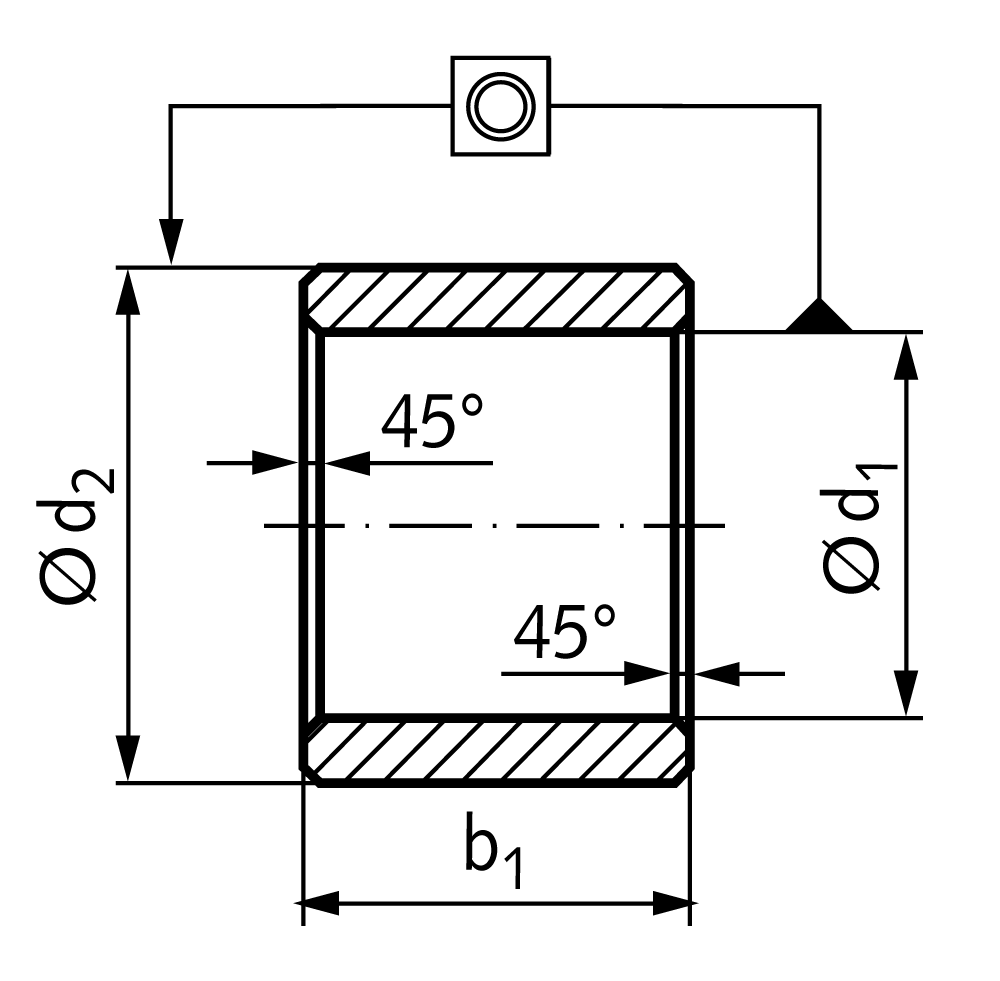

Material: Sintered bronze similar SINT A50. Self lubricating, oil coated, pressed ready-to-install and kalibrated. After press-fitting them into a rigid bearing housing with a mounting hole H7, these bearings have a bore tolerance H7, at d1 > 70 mm they have a bore tolerance H8. Edges chamfered at 45º, at choice of the manufacturer. Concentricity tolerance IT9, at d1 > 50 mm: tolerance IT10. No statement regarding the surface roughness according to DIN 3141 (prenorm) can be given due to the porous structure of the sintered metal. Technical Data: Surface pressure: max. 35 N/mm², depending on speed and diameter. Temperature range: -20°C to +120°C.
