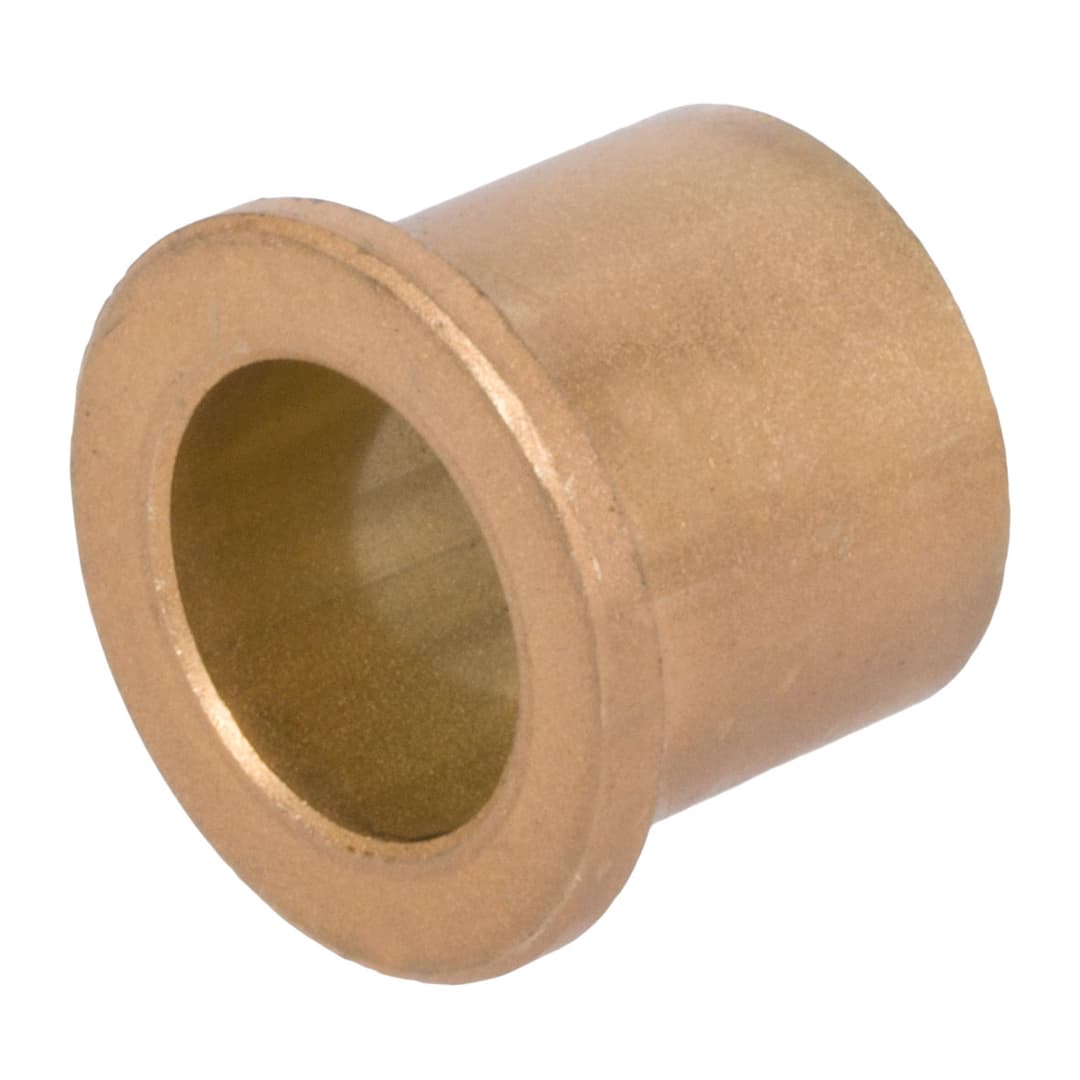

Flanged bush similar to DIN 1850-3 V sintered bronze bore 40mm outer diameter 50mm flange diameter 60mm length 40mm
Manufacturer part no. 62355205
$42.95≈ 37.30 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €37.30 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.46 |
| Total delivered | €62.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 3 V |
Mechanical
| Weight | 218.27 g |
Other characteristics
| Inner diameter | 40 mm |
| Length | 40 mm |
| Outer diameter | 50 mm |
| Material | Sintered bronze |
| Surface | Oil soaked |
Description

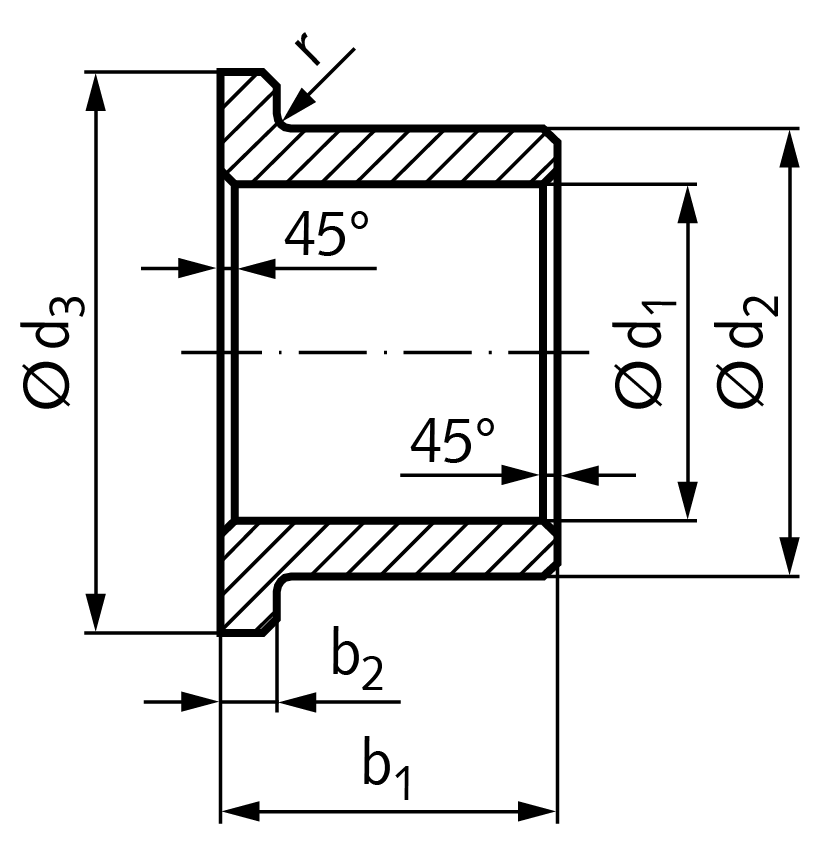

Material: Sintered bronze similar SINT A50. Self lubricating, oil coated, pressed ready-to-install and 1) kalibrated. Edges chamfered at 45°, at choice of the manufacturer. The concentricity tolerance refers to d2. 1) no statement regarding the surface roughness according to DIN 3141 (prenorm) can be given due to the porous structure of the sintered metal. Technical Data: Surface pressure: max. 35 N/mm², depending on speed and diameter. Temperature range: -20°C to +120°C. Dimension r: For bores 3 – 8 mm = 0.3 mm, bores 9 – 22 mm = 0.6 mm, bores 25 – 60 mm = 0.8 mm Tolerances: Inner diameter d1: F8 / G8. Outer diameter d2: s8. Flange diameter d3: js13. Length b1:+/-0.1mm.Flange thickness b2: js14.
