MÄDLERMÄDLER· Mechanics & transmission

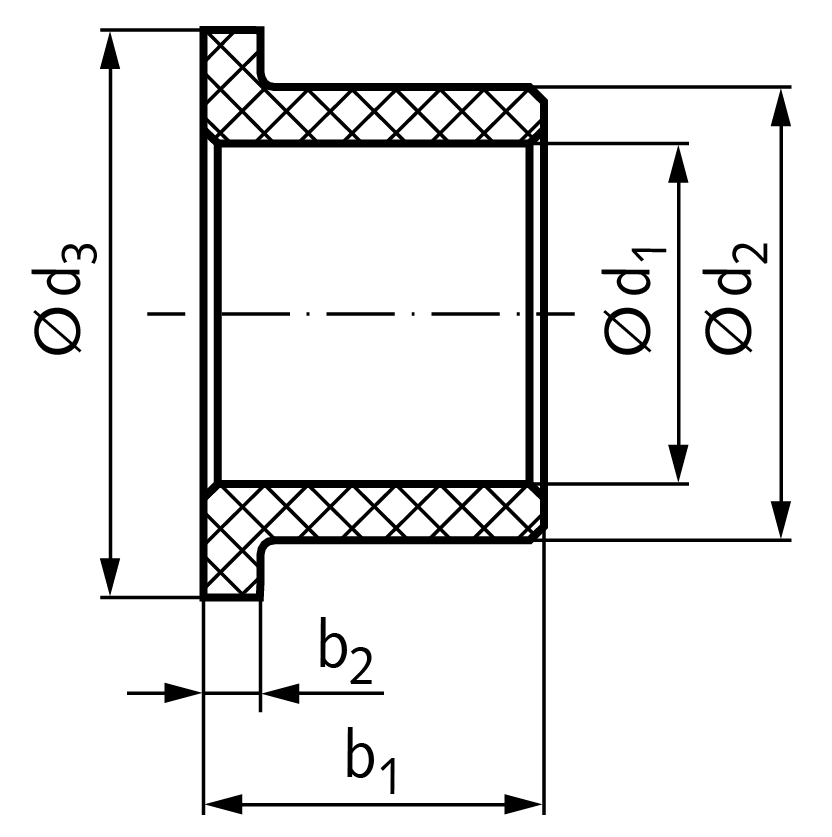

Flanged bush BBP bore 6mm polyamide 6.6 outer diameter 10mm length 8mm flange diameter 15mm
Manufacturer part no. 62380600
$1.63≈ 1.41 €
Price summary
Listed by MÄDLER at €1.41. Delivered to France, including shipping, VAT and any customs duty, it comes to about €19.69. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 49 unitslead time 14 d
Estimated landed cost
| Item | €1.41 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.28 |
| Total delivered | €19.69 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 0.8 g |
Other characteristics
| Allowance d2 | 0.1 mm |
| Inner diameter | 6 mm |
| Length | 8 mm |
| Minus allowance d1 | 0.06 mm |
| Outer diameter | 10 mm |
| Plus allowance d1 | 0.1 mm |
| Material | Plastic (up to 80°C, surface pressure 18 N/mm²) |
| Surface | Blank |
Description
Material: Thermoplastic polyamide 6.6, die cast. Color: natural.Polyamide is very well suited for the manufacture of plain bearings due to its good sliding characteristics and strong wear resistance even at dry-running conditions and because of its sufficient mechanical strength and excellent corrosion resistance. Surface pressure max.: 18 N/mm², dependant on sliding speed and bearing temperature Sliding Speed:2 m/s Lubrication: usually not required Bearing clearance: about 0.01 mm per mm shaft-Ø Bearing temperature: Should not exceed 80°C. With thin-walled parts, the frictional heat is dissipated extremely well. Coefficient of linear expansion: 8 x 10^-5 Moisture absorption max.: 7.5% Moisture absorption at 20°C and 50% rel. humidity: 2.4% Mounting hole: tolerance H7
