MÄDLERMÄDLER· Mechanics & transmission

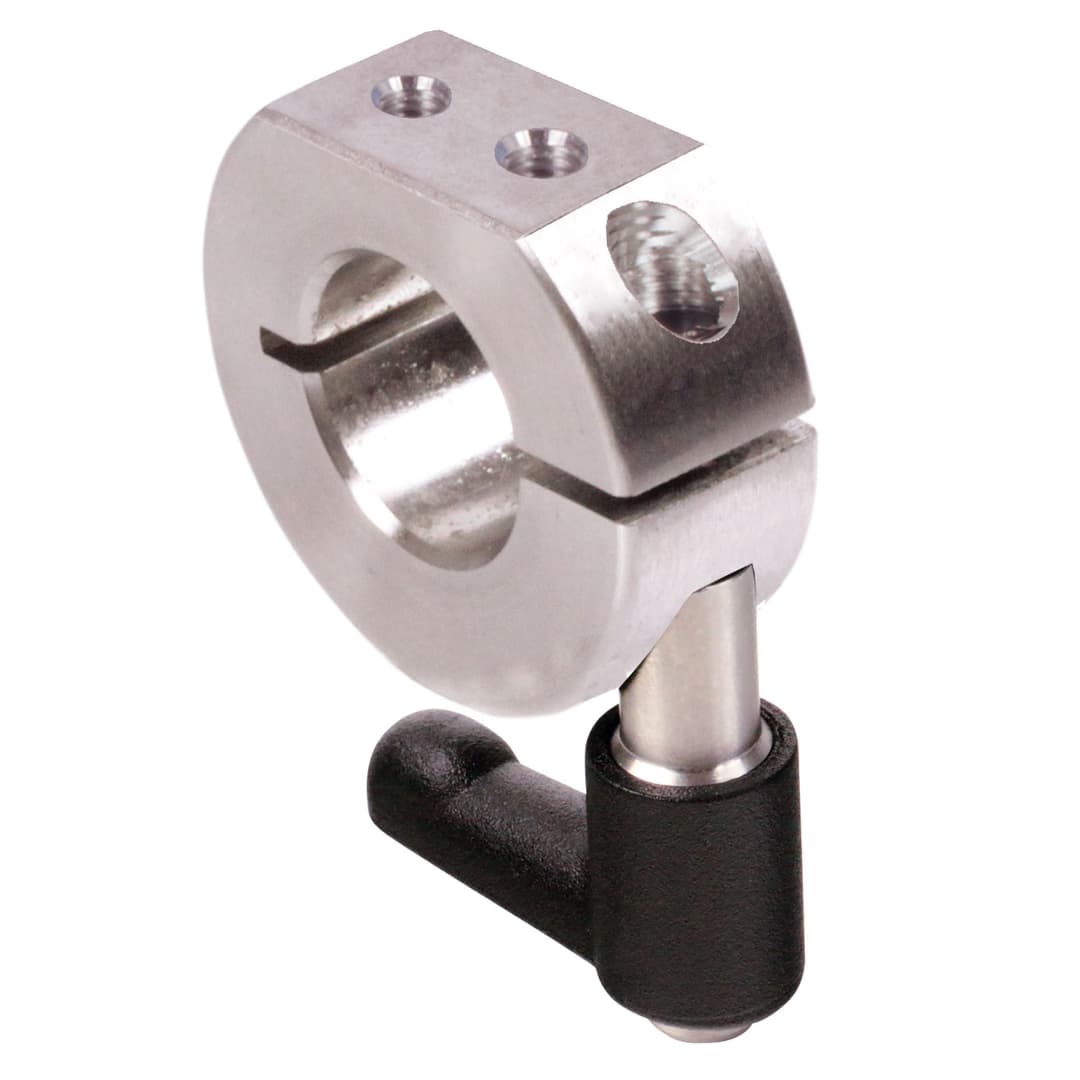

Clamp collar single-split stainless steel 1.4305 bore 35mm with adjustable clamp lever M6 x 18 length 45mm type GRK
Manufacturer part no. 62399135GRK
$66.31≈ 57.59 €
Price summary
Listed by MÄDLER at €57.59. Delivered to France, including shipping, VAT and any customs duty, it comes to about €87.11. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €57.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.52 |
| Total delivered | €87.11 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 235 g |
Other characteristics
| B | 15 mm |
| D1 | 35 mm |
| D2 | 60 mm |
| D4 | 13 mm |
| H | 26 mm |
| L | 30 mm |
| L1 | 45 mm |
| L2 | 47.3 mm |
| M | 20 mm |
| Rmax | 113 mm |
| T | 7 mm |
| D3 | M6 x 18 |
| G | M5 |
Description
Material: Stainless steel 1.4305 (AISI 303). Handle: Zinc die-cast, plastic coated, black. Screw: Stainless steel 1.4305 (AISI 303). Type GRK: With mounting flat and two radial monting bores, with thread. Tolerance b: +0.08 mm / -0.25 mm. Temperature resistant up to +90ºC. Features: does not damage the shaft, stronger clamping force than with set collars, even distribution of clamping forces, precise bores. The disengageable, adjustable clamping lever enables an easy readjustment without tools.
