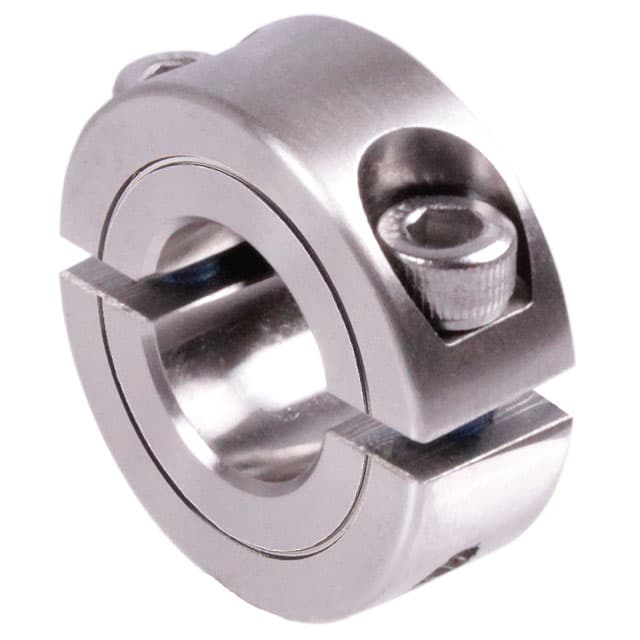

Clamp collar double-split stainless steel 1.4305 bore 0.75 inch = 19.05mm with bolts DIN 912 A2-70
Manufacturer part no. 6239941905
$28.45≈ 24.71 €
Price summary
Listed by MÄDLER at €24.71. Delivered to France, including shipping, VAT and any customs duty, it comes to about €47.65. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €24.71 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.94 |
| Total delivered | €47.65 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 97 g |

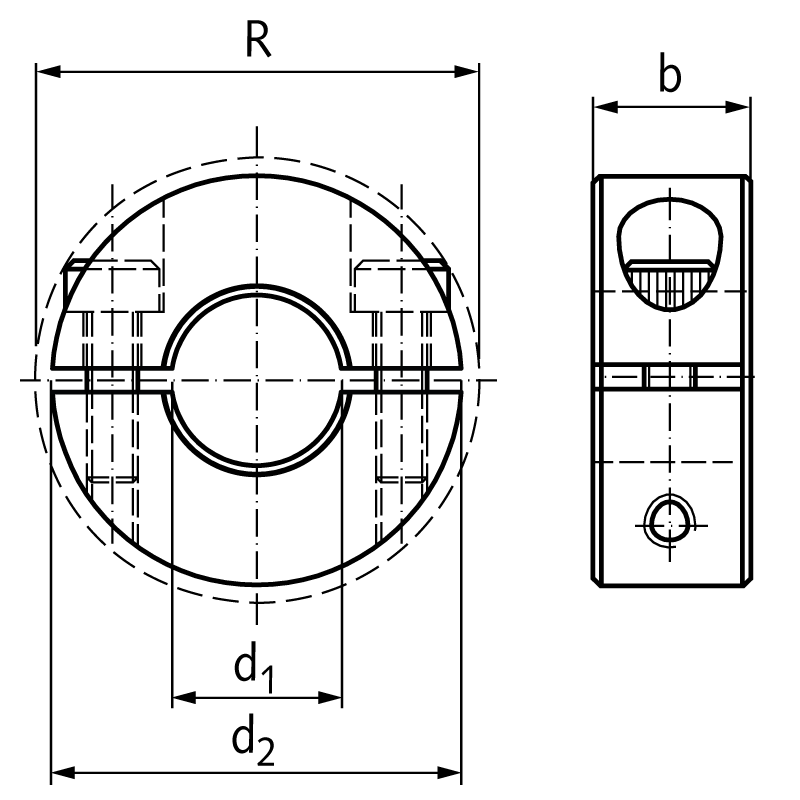

Other characteristics
| B | 15 mm |
| D1 | 0.75 |
| D2 | 40 mm |
| Rmax | 46.4 mm |
| Screw | M6 x 16 |
Description
Material: Stainless steel 1.4305 (AISI 303), screw stainless steel A2-70. Features: does not damage the shaft, stronger clamping force than with set collars, even distribution of clamping forces, easy readjustment, precise bores in inch size. The threads of the metric screws DIN 912 are covered with a layer of polyamide. Tolerance b: +0.08 mm -0.25 mm. Temperature range: -40ºC to +175ºC.
