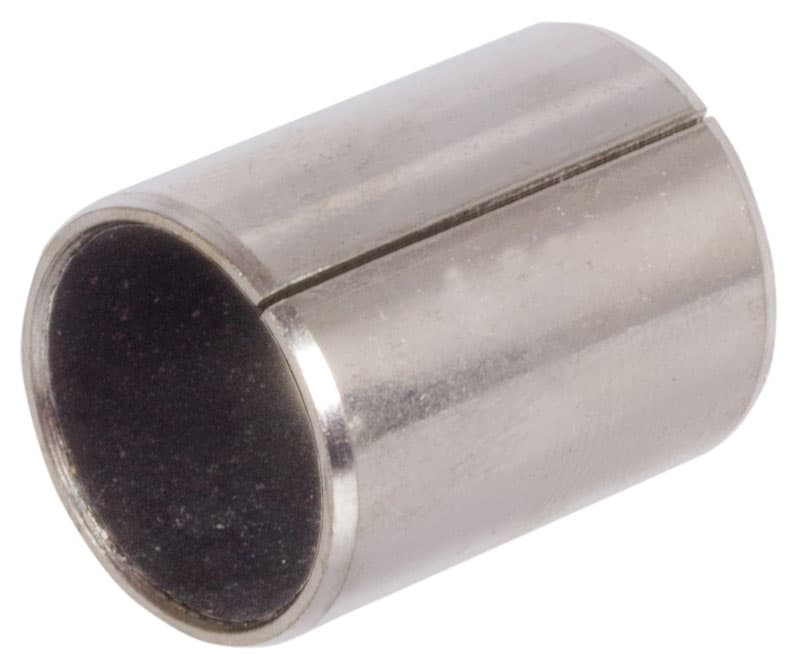

Name: Cylindrical bush slotted version 100 x 105 x 80 mm
Brand: MÄDLER
Price: 19.88 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight	496 g

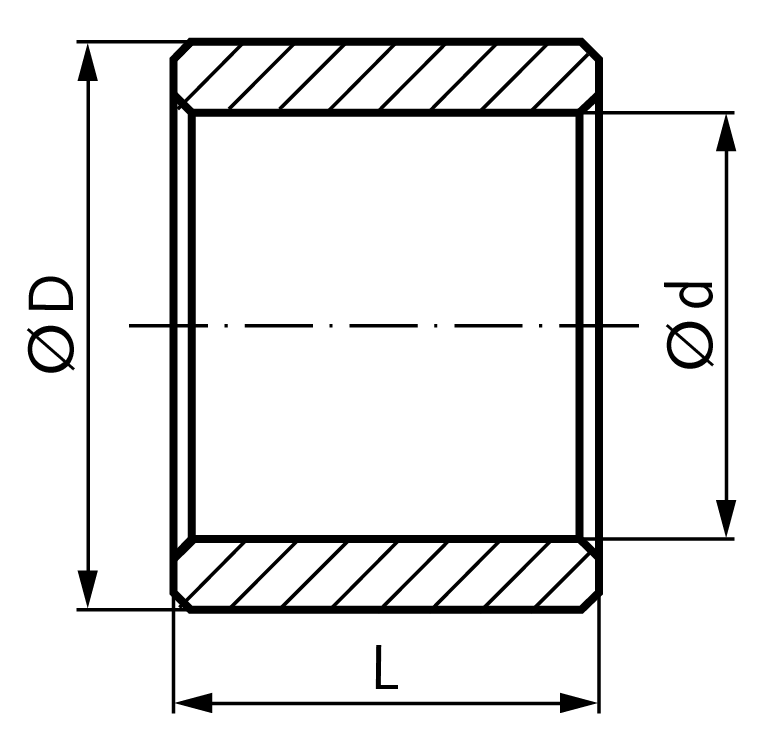

Dimensions	100x105x80mm

Other characteristics

Inner diameter	100 mm
Length	80 mm
Outer diameter	105 mm
Material	Steel
Surface	Tin plated / PTFE-coated

Description

Plain bearing bush from steel sheet with multi-porous bronze layer and sliding surface from PTFE-lead-compound. Specially suited for lubrication-free running, for high loads, extrem temperatures. Main characteristics Self lubricating and maintenance free, ready to install. Perfectly suited for lower sliding speeds. Low wear, low friction coefficient, no ‘stick slip’. Perfectly suited for circular, swivelling and partly for axial movement. Can be used at extremely high bearing loads. No moisture absorption. High corrosion Construction Tin-plated steel back (incl. edges). Multi-porous bronze layer, sliding surface PTFE-lead-compound. Technical data Stat. surface pressure: max. 250 N/mm² Dyn. bearing load: max. 56 N/mm² Friction coefficient: 0.03 – 0.20 Sliding speed: max. 2 m/s Temperature range: -195°C to 280°C Therm. conductivity: 40 W/K*m Recommended mounting tolerances Housing bore H7, shaft tolerance up to 55 Ø f7 above 55 Ø h8
