MÄDLERMÄDLER· Fastening Elements

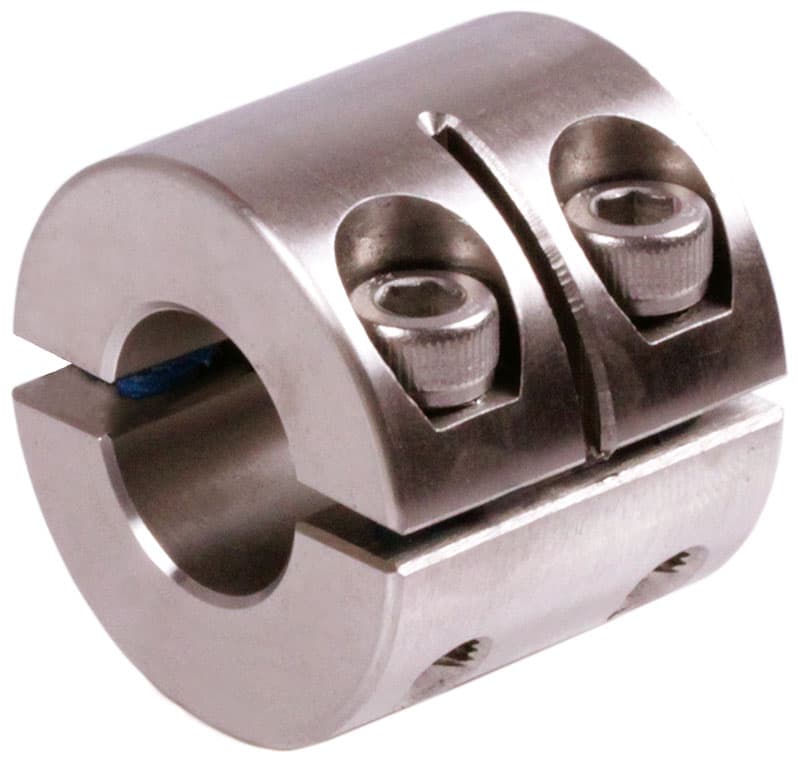

Clamp collar double-split double wide stainless steel 1.4305 bore 12mm with bolts DIN 912 A2-70
Manufacturer part no. 62499412
$37.17≈ 32.28 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €32.28 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.46 |
| Total delivered | €56.74 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 76 g |
Other characteristics
| Outer diameter | 28 mm |
| Tightening torque | 2.5 Nm |
| Width | 24 mm |
| Bolts din 912 | M 4 x 12 |
| Inner diameter | 12+0.07 mm |
| Material | Stainless steel (303) |
| Surface | Blank |
Description
Material: Stainless steel 1.4305 (AISI 303). Screws stainless steel A2-70. Features: does not damage the shaft, stronger clamping force than with set collars, even distribution of clamping forces, easy readjustment, precision honed bores. The threads of the screws DIN 912 are covered with a layer of polyamide. Tolerance b: +0.08mm -0.25mm . Temperature range: -40°C to +175°C.
