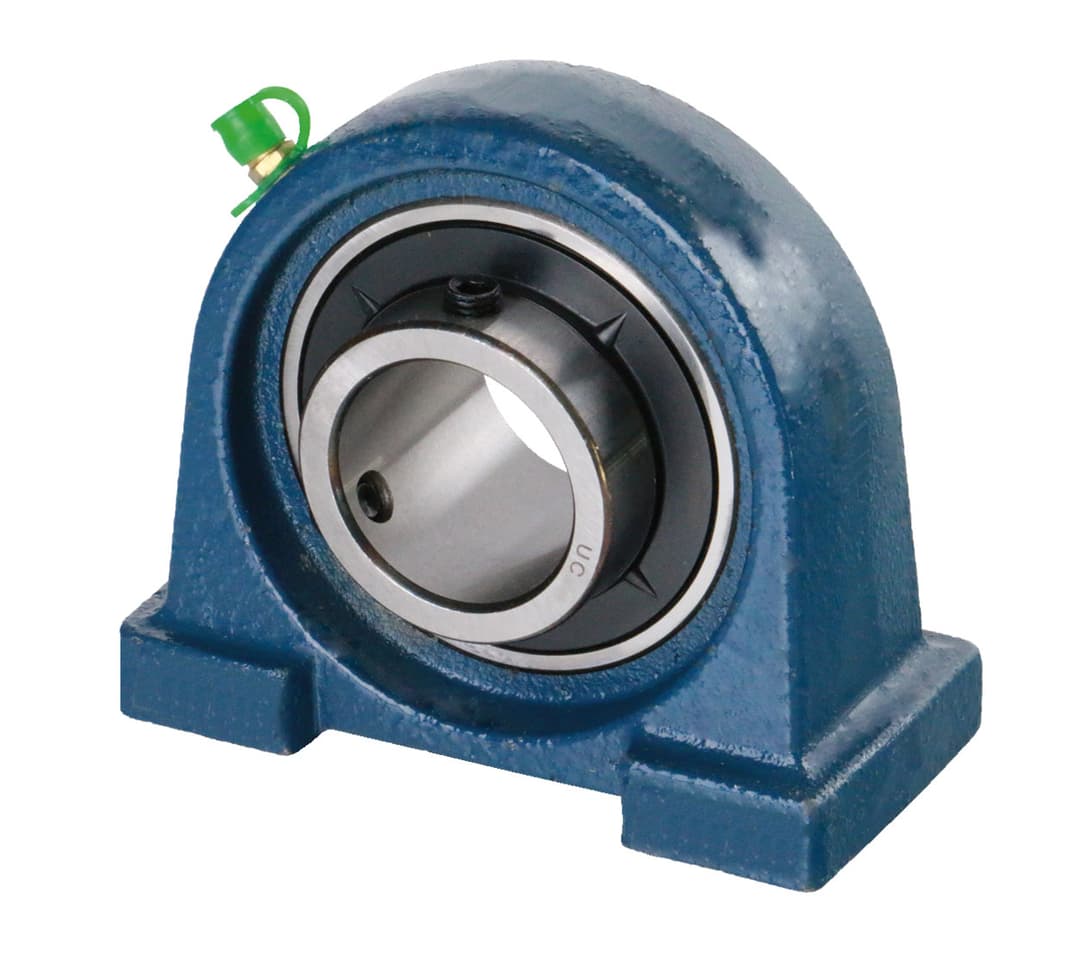

Ball pillow block bearing UCPA 204 bore 20mm housing cast iron

MÄDLERMÄDLER· Mechanics & transmission

Ball pillow block bearing UCPA 204 bore 20mm housing cast iron

Name: Ball pillow block bearing UCPA 204 bore 20mm housing cast iron
Brand: MÄDLER
Price: 20.77 USD
Availability: InStock

Manufacturer part no. 62532000

$20.77≈ 18.50 €

Price summary

Listed by MÄDLER at €18.50. Delivered to France, including shipping, VAT and any customs duty, it comes to about €40.20. Prices last checked on 2026-10-04.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

In stock — 20 unitslead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€18.50
Shipping	€15.00
VAT (20%)	€6.70
Total delivered	€40.20

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

560 g

Other characteristics

Bearing load rating dyn c	6.7 kN
Bearing load rating stat c0	12.8 kN
Bore	20 mm
Type ucpa no	204
Material	Grey cast iron / Roller bearing steel
Surface	Varnished (Housing)

Description

Material: Housing from grey cast iron. Rolling bearing from bearing steel. With 2 mounting holes, one of them slotted. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating is possible. Delivery with grease nipple. * Maximum radial load if axial force = 0. The axial load rating is approx. 20% of the radial load rating.
