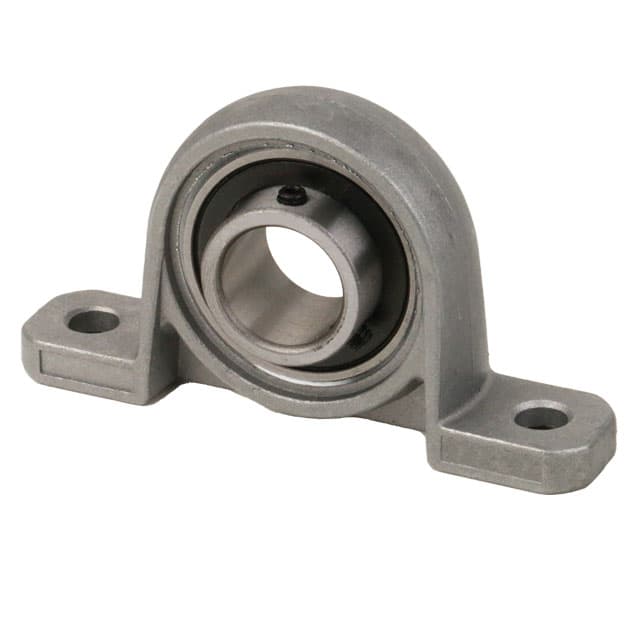

Ball pillow block bearing KP 001 bore 12mm material zinc die cast

MÄDLERMÄDLER· Mechanics & transmission

Ball pillow block bearing KP 001 bore 12mm material zinc die cast

Name: Ball pillow block bearing KP 001 bore 12mm material zinc die cast
Brand: MÄDLER
Price: 12.89 USD
Availability: BackOrder

Manufacturer part no. 62561200

$12.89≈ 11.19 €

Price summary

Listed by MÄDLER at €11.19. Delivered to France, including shipping, VAT and any customs duty, it comes to about €31.43. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€11.19
Shipping	€15.00
VAT (20%)	€5.24
Total delivered	€31.43

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

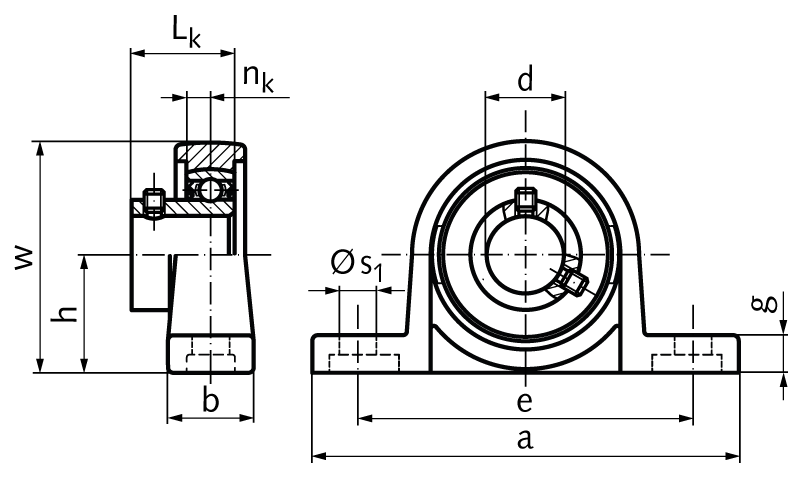

Specifications (automatically extracted)

Mechanical

Weight

70 g

Other characteristics

A	71 mm
B	16 mm
Bearing load rating dyn c	5.2
Bearing load rating stat c0	2.45
D	12 mm
E	56 mm
G	6 mm
H	19 mm
Lk	15 mm
Nk	4 mm
Nr	1
S1	7 mm
W	38 mm

Description

Material: Housing: from Zinc die cast, Rolling bearing: from bearing steel. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 set screws. Lubricated for life at normal operating conditions. 1) Maximum radial load if axial force = 0. The axial load rating is approx. 20% of the radial load rating.
