MÄDLERMÄDLER· Mechanics & transmission
Ball pillow block bearing UP 002 bore 15mm with eccentric ring material zinc die cast
Manufacturer part no. 62571500
$11.35≈ 9.82 €
Price summary
Listed by MÄDLER at €9.82. Delivered to France, including shipping, VAT and any customs duty, it comes to about €29.78. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €9.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.96 |
| Total delivered | €29.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 100 g |
Other characteristics

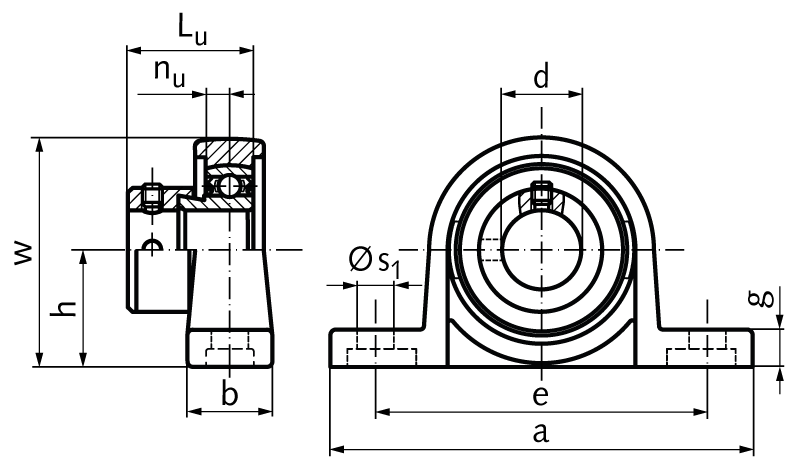

| A | 80 mm |
| B | 16 mm |
| Bearing load rating dyn c | 5.6 |
| Bearing load rating stat c0 | 2.55 |
| D | 15 mm |
| E | 63 mm |
| G | 7 mm |
| H | 22 mm |
| Lu | 18.5 mm |
| Nr | 2 |
| Nu | 4.5 mm |
| S1 | 7 mm |
| W | 43 mm |
Description
Material: Housing: from Zinc die cast, Rolling bearing: from bearing steel. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. During assembly, the eccentric ring and the inner bearing ring are turned against each other to clamp the shaft. The eccentric ring is additionally secured on the shaft with 1 set screw. Lubricated for life at normal operating conditions. 1) Maximum radial load if axial force = 0. The axial load rating is approx. 20% of the radial load rating.
