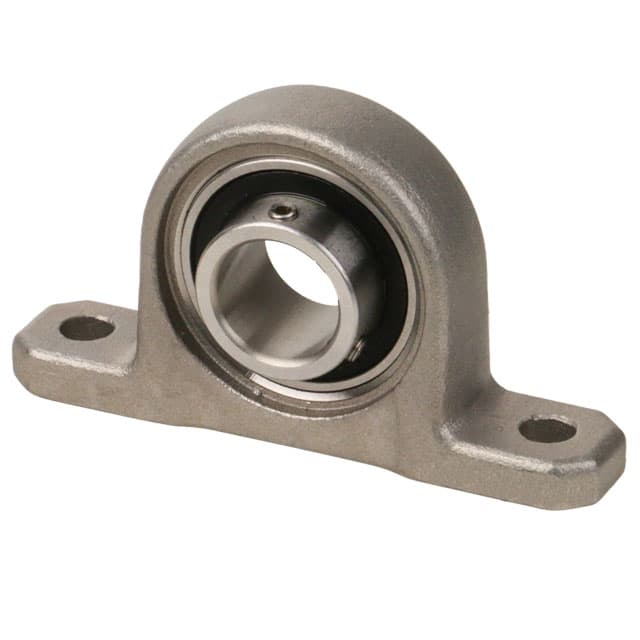

Ball pillow block bearing SSKP 000 bore 10mm housing and bearing stainless steel
Manufacturer part no. 62599610
$47.98≈ 41.53 €
Price summary
Listed by MÄDLER at €41.53. Delivered to France, including shipping, VAT and any customs duty, it comes to about €67.84. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €41.53 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.31 |
| Total delivered | €67.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 70 g |
Other characteristics
| A | 67 mm |
| B | 16 mm |
| Bearing load rating dyn c | 4 |
| Bearing load rating stat c0 | 1.6 |
| D | 10 mm |
| E | 53 mm |
| G | 6 mm |
| H | 18 mm |
| Lk | 15 mm |
| Nk | 4 mm |
| Nr | 0 |
| S1 | 7 mm |
| W | 35 mm |
Description
Material: Housing: Stainless steel 1.4301 (AISI 304). Rolling bearing: Stainless steel 1.4125 (AISI 440C), lubricated with grease FM 222 for food processing machinery, with registration FDA, CIFA, KPF2K-20, NSF H1. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 set screws. Lubricated for life at normal operating conditions. 1) Maximum radial load if axial force = 0. The axial load rating is approx. 20% of the radial load rating.
