MÄDLERMÄDLER· Bearings, Bushes, Seals

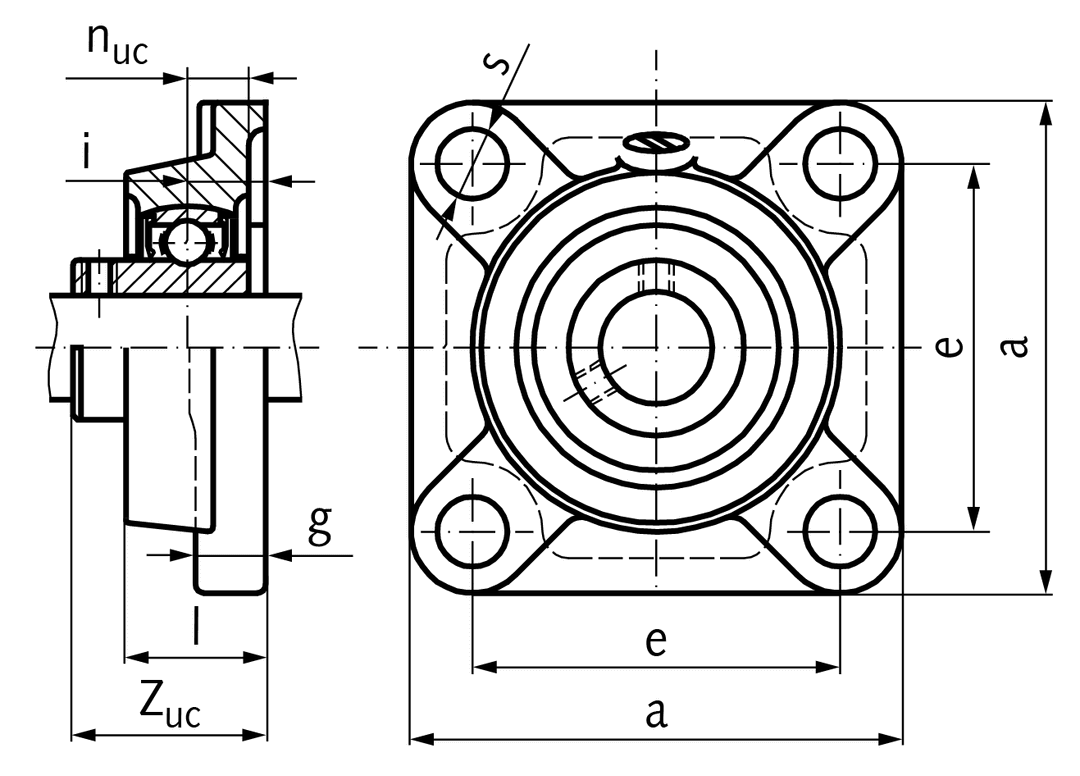

Ball flange bearing UCF 204 bore 20mm material grey cast iron
Manufacturer part no. 62602000
$16.39≈ 14.23 €
In stock — 47 unitslead time 14 d
Estimated landed cost
| Item | €14.23 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.85 |
| Total delivered | €35.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 590 g |
Other characteristics
| Bearing load rating dyn c | 9.9 kN |
| Bearing load rating stat c0 | 6.2 kN |
| Bore | 20 mm |
| Material | Grey cast iron / Roller bearing steel |
| Surface | Varnished (Housing) |
| Type | UCF 204 |
Description
Material: Housing from grey cast iron. Rolling bearing from bearing steel. With 4 mounting holes. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating is possible. Technical explanations page 390. Delivery with grease nipple.
