MÄDLERMÄDLER· Mechanics & transmission

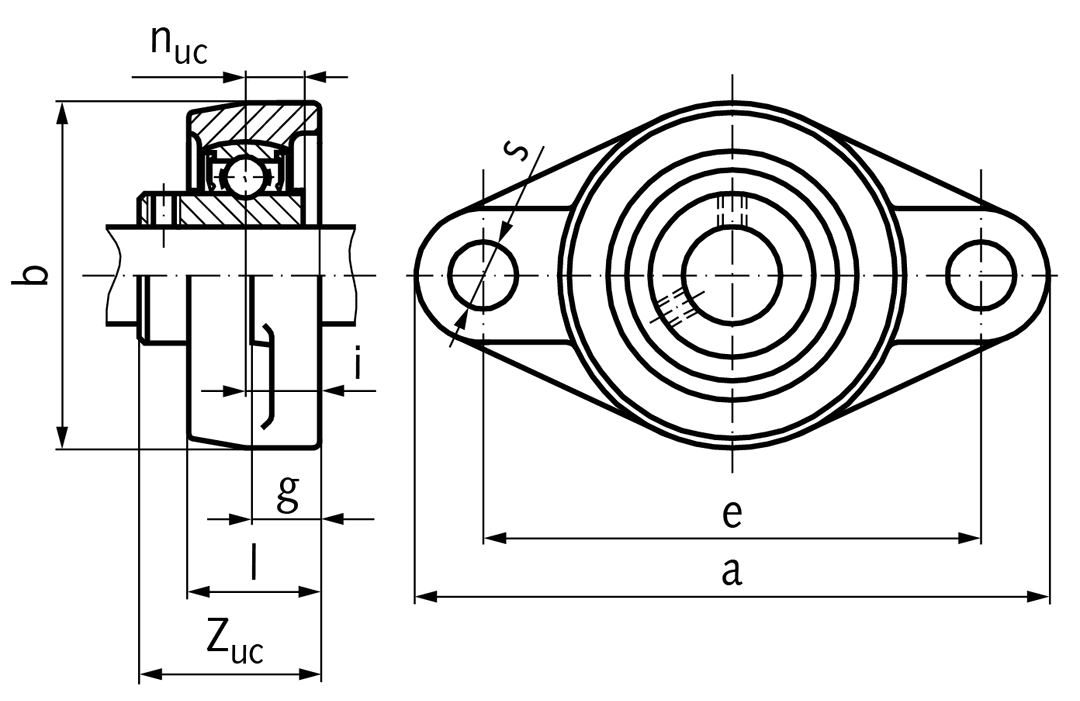

Ball flange bearing UCFL 205 bore 25mm material grey cast iron
Manufacturer part no. 62612500
$17.24≈ 15.36 €
Price summary
Listed by MÄDLER at €15.36. Delivered to France, including shipping, VAT and any customs duty, it comes to about €36.43. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 9 unitslead time 14 d
Estimated landed cost
| Item | €15.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.07 |
| Total delivered | €36.43 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 600 g |
Other characteristics
| Bearing load rating dyn c | 10.8 kN |
| Bearing load rating stat c0 | 7 kN |
| Bore | 25 mm |
| Material | Grey cast iron / Roller bearing steel |
| Surface | Varnished (Housing) |
| Type | UCFL 205 |
Description
Material: Housing from grey cast iron. Rolling bearing from bearing steel. With 2 mounting holes. The rolling bearing can be swiveled when mounting to compensate shaft misalignement. The shaft will get fastened with 2 setscrews. Lubricated for life at normal operating conditions. Re-lubricating is possible. Delivery with grease nipple.
