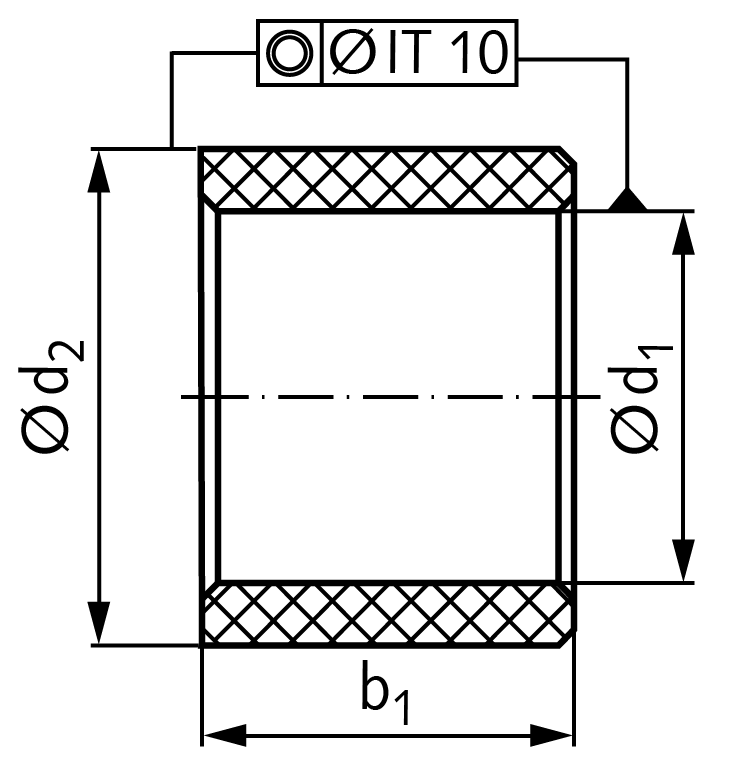

Bush EP22 bore 12mm outer diameter 14mm length 10mm colour: white
Manufacturer part no.
Manufacturer part no.
Listed by MÄDLER at €2.14. Delivered to France, including shipping, VAT and any customs duty, it comes to about €20.57. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €2.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.43 |
| Total delivered | €20.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 0.6 g |
| Inner diameter | 12 mm |
| Length | 10 mm |
| Minus allowance d1 | 0.032 mm |
| Outer diameter | 14 mm |
| Plus allowance d1 | 0.102 mm |
| Material | Plastic (up to 170°C, surface pressure 50 N/mm²) |
| Surface | Blank |
Material: Thermoplast polybutylenterephthalat, modified (PBT + PTFE), white. Plain bearing bush made from thermoplastic with high dimension accuracy. Low friction. Specially suited for dry-running and for use at very low up to middle high temperatures. Good price/perfomance ratio with high dimension accuracy. Low friction, suitable also for lubrication-free running. Temperature range -50ºC bis + 170ºC. Operating Conditions: dry : very good. oiled: good. water: very good. field of aplication:Domestic appliances, chemical equipment, office equipment, sports equipment, automotive (pedals, steering, axes) and many more.
