MÄDLERMÄDLER· Rod Ends, Spherical Bearings, Clevises, Clevis Joints, Angle Joints

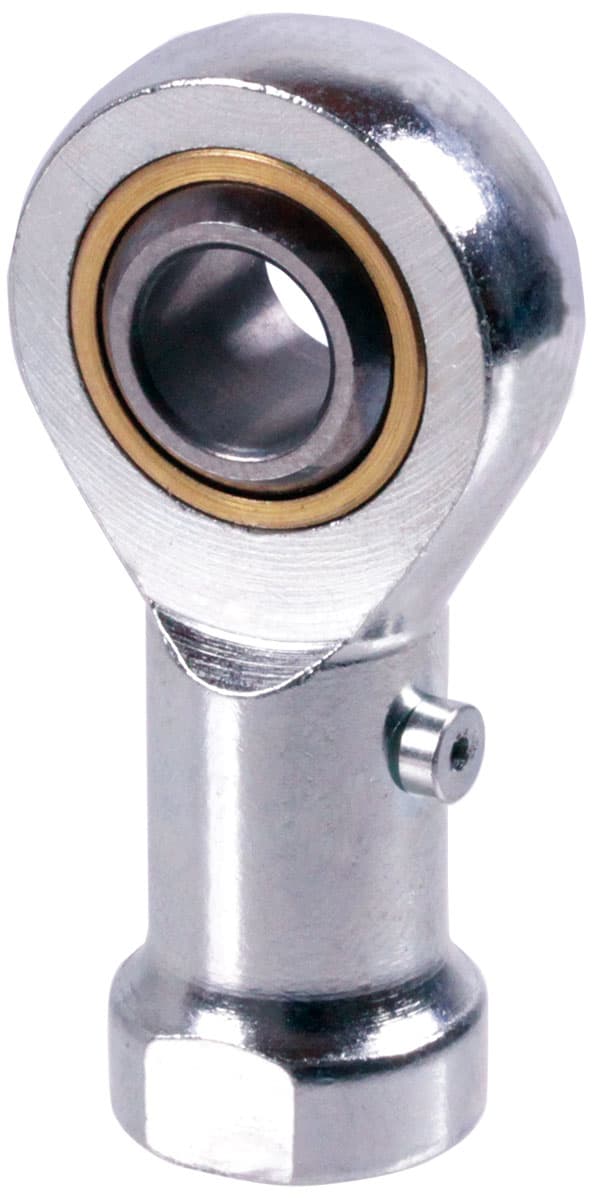

Rod end GS DIN ISO 12240-4 series K internal thread M20x1.5 right == Initial lubrication required before use ==
Manufacturer part no. 63202000
$80.92≈ 70.27 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €70.27 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.05 |
| Total delivered | €102.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

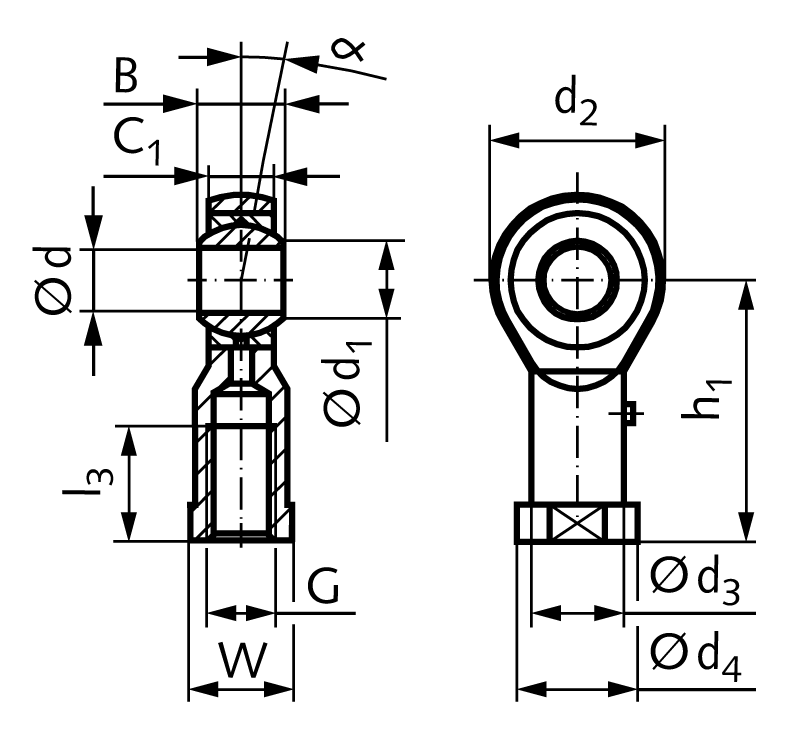

Specifications (automatically extracted)
Mechanical
| Weight | 415 g |
Other characteristics
| Bore | 20 mm |
| Center distance to mounting surface | 77 mm |
| Outer diameter | 50 mm |
| Thread pitch | 1.5 mm |
| Tilt angel | 14 ° |
| Material | Steel / Brass |
| Surface | Zinc-plated |
| Thread size | M 20×1.5 mm |
| Thread type | right |
Description
Material: Outer part: Zinc-plated. Boreholes up to 12mm: free-cutting steel, turned. From boreholes 14mm: Steel C22, forged. Inner ring: Roller bearing steel 100Cr6, hardened HRC 62+/-1, ground and polished. Bearing race: Special brass CuZn40Als. Wide version. Dimensions according to DIN ISO 12240-4 (DIN 648) series K. Thread either right-handed or left-handed. Heavy-duty rod ends for high radial and axial alternating loads. Steel on high-duty brass. Can be re-lubricated (only from size 5mm). Sliding speed up to 60 m/min. Initial lubrication required before use
