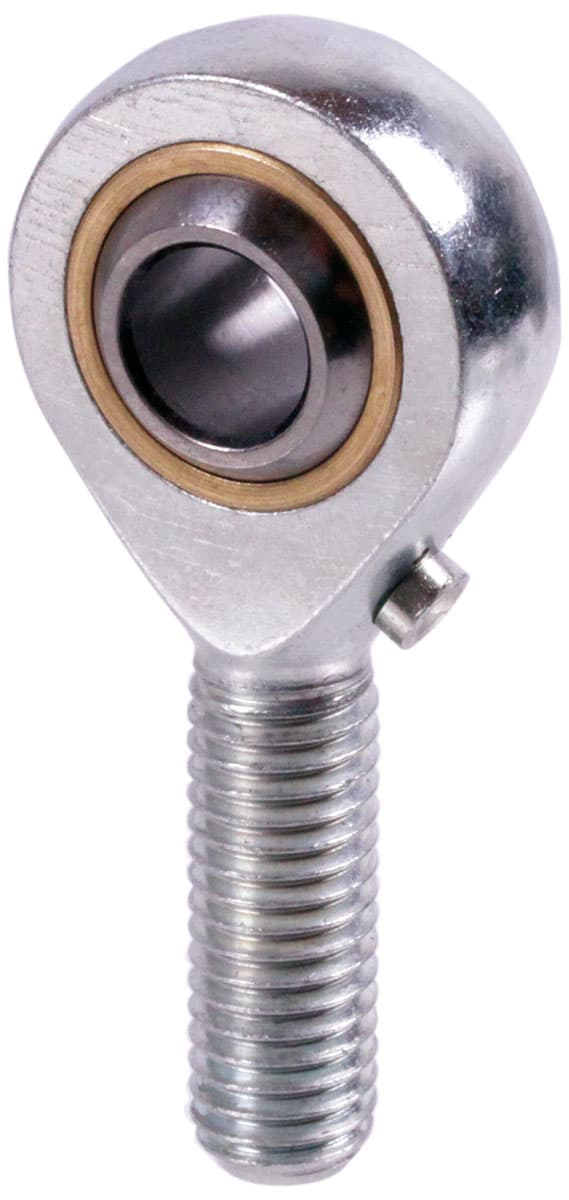

Rod end GS DIN ISO 12240-4 series K external thread M16 left == Initial lubrication required before use ==
Manufacturer part no. 63231600
$51.35≈ 44.59 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €44.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.92 |
| Total delivered | €71.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 189 g |
Other characteristics

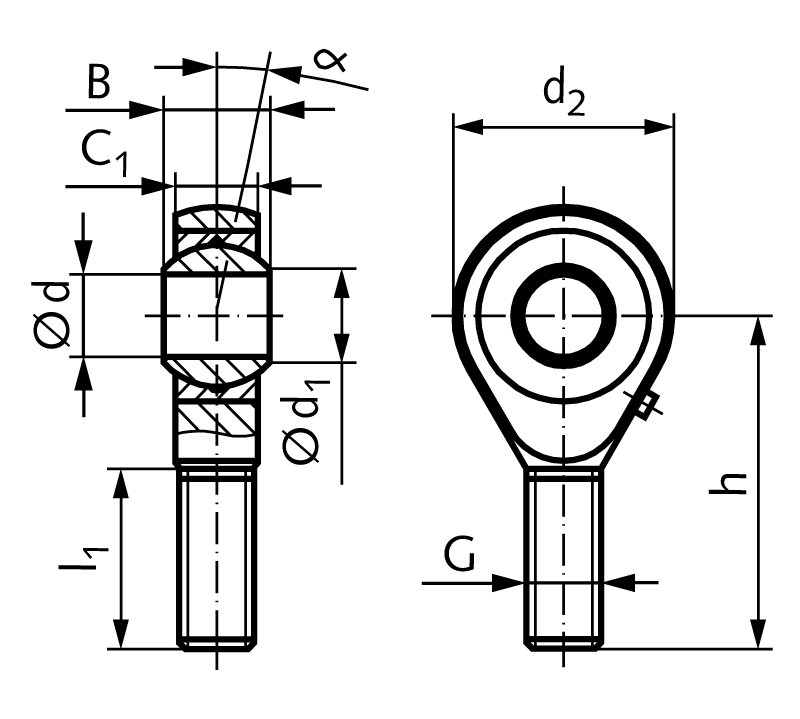

| Bore | 16 mm |
| Center distance to mounting surface | 66 mm |
| Outer diameter | 42 mm |
| Thread pitch | 2 mm |
| Tilt angel | 15 ° |
| Material | Steel / Brass |
| Surface | Zinc-plated |
| Thread size | M 16 mm |
| Thread type | left |
Description
Material: Outer part: Zinc-plated. Boreholes up to 12mm: free-cutting steel, turned. From boreholes 14mm: Steel C22, forged. Inner ring: Roller bearing steel 100Cr6, hardened HRC 62+/-1, ground and polished. Bearing race: Special brass CuZn40Als. Wide version. Dimensions according to DIN ISO 12240-4 (DIN 648) series K. Thread either right-handed or left-handed. Heavy-duty rods end for high radial and axial alternating loads. Steel on high-duty brass. Can be re-lubricated (only from size 6mm). Sliding speed up to 60 m/min. Initial lubrication required before use
